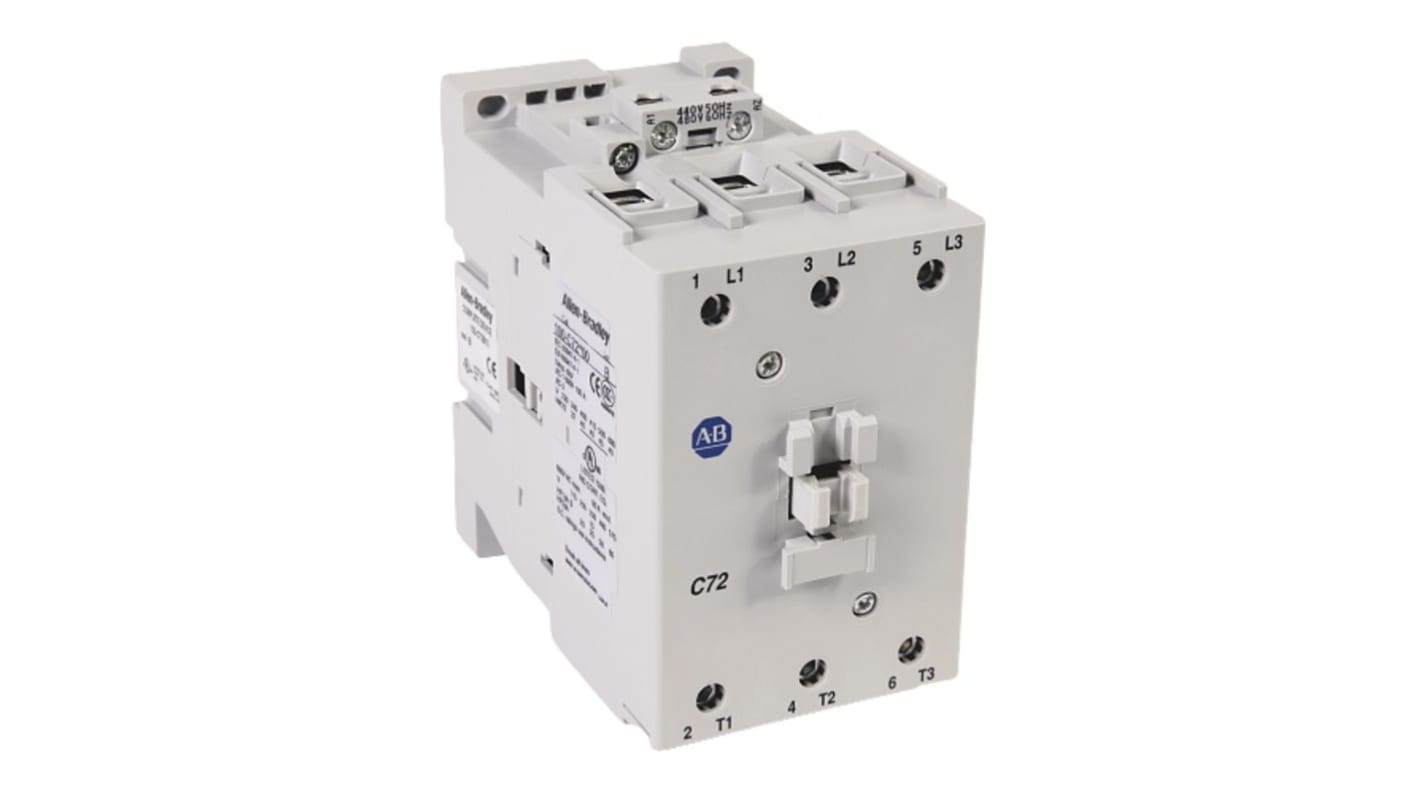

Allen Bradley 100C Contactor, 24V dc Coil, 3-Pole, 72 A, 40 kW 24V dc, 3 NO, 690V ac
- RS Stock No.:
- 269-3050
- Mfr. Part No.:
- 100-C72DJ01
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£319.62
(exc. VAT)
£383.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £319.62 |
*price indicative
- RS Stock No.:
- 269-3050
- Mfr. Part No.:
- 100-C72DJ01
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Contactor | |
| Coil Voltage | 24V dc | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 72A | |
| Series | 100C | |
| Power Rating | 40kW | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NC | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 72A | |
| Control Circuit Voltage Uc | 24V dc | |
| Contactor Application | Control Motors | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CCC, CSA, IEC, KC, UL | |
| Length | 248mm | |
| Depth | 248mm | |
| Width | 103mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Contactor | ||
Coil Voltage 24V dc | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 72A | ||
Series 100C | ||
Power Rating 40kW | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NC | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 72A | ||
Control Circuit Voltage Uc 24V dc | ||
Contactor Application Control Motors | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CCC, CSA, IEC, KC, UL | ||
Length 248mm | ||
Depth 248mm | ||
Width 103mm | ||
Pole and Throw Configuration 3P | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Rockwell Automation 100-C series contactors offers space saving, high performance design and are designed to control motors and other loads. They have low power consumption and built in surge suppression with DC coils. They are environmentally friendly, versatile and flexible. These contactors can protect your other devices while delivering the performance you expect.
Provides IP2X finger protection
Can be attached to 35 mm DIN mounting rail
Front and side mounting of auxiliary contacts
Space saving coil mounted control modules
RoHs compliant
