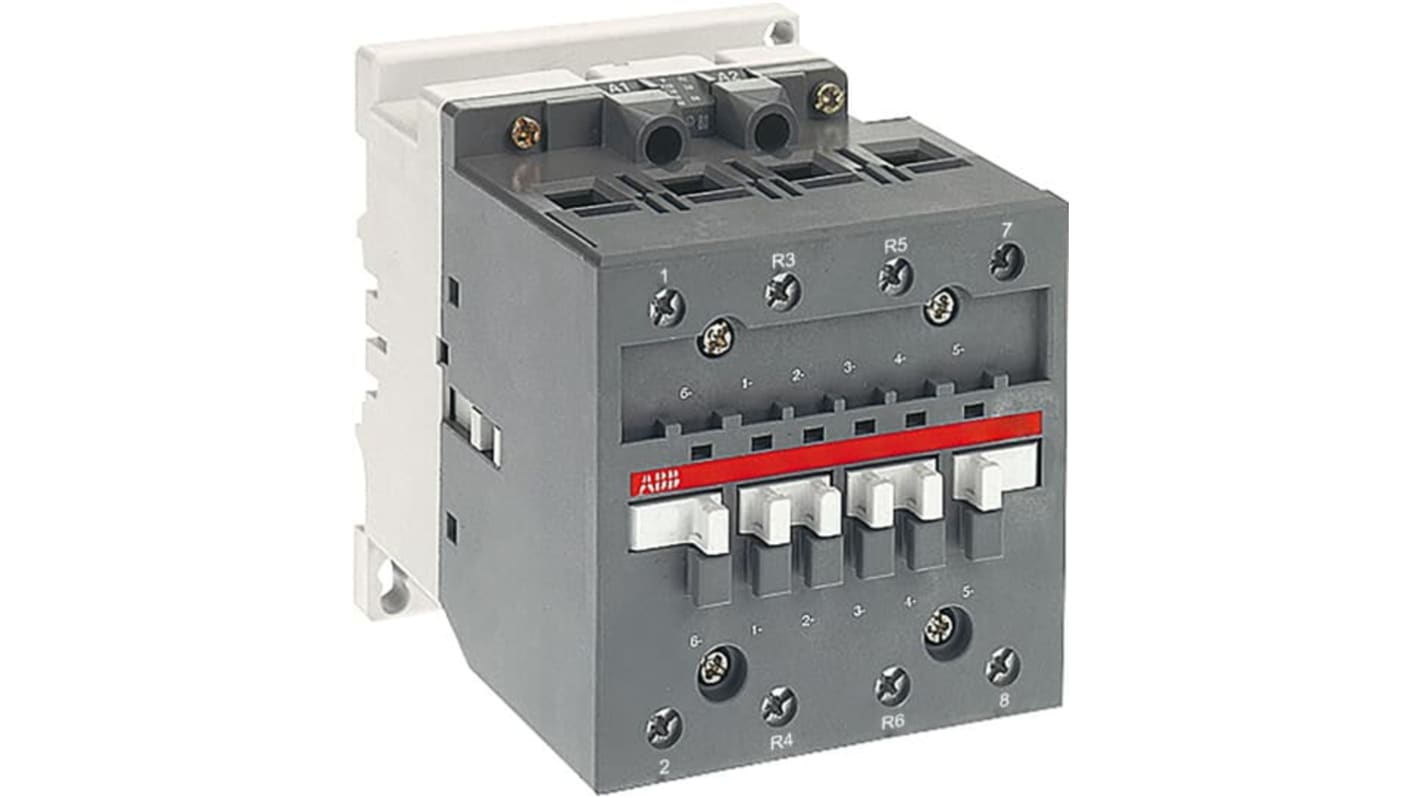

ABB AF Contactor, 100V, 250 V Coil, 4-Pole, 100 A 100V, 250 V, 2 NO/2 NC, 690V
- RS Stock No.:
- 258-9530
- Mfr. Part No.:
- 1SBL337501R7000
- Brand:
- ABB
Subtotal (1 unit)*
£505.59
(exc. VAT)
£606.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £505.59 |
*price indicative
- RS Stock No.:
- 258-9530
- Mfr. Part No.:
- 1SBL337501R7000
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 100, 250V | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 100A | |
| Series | AF | |
| Function | Installation Contactor | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 2 NO/2 NC | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Terminal Type | Screw | |
| Operational Current Ie | 100A | |
| Control Circuit Voltage Uc | 100, 250V | |
| Contactor Application | Installation Contactor | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 110mm | |
| Standards/Approvals | EN 50155, IEC 60077-1, IEC 60077-2, IEC 61373, UL 508, TR CU 001/2011, IEC/EN 60947-1, IEC/EN 60947-4-1, CSA C22-2 N°14 | |
| Width | 120mm | |
| Depth | 110mm | |
| Pole and Throw Configuration | 4P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 100, 250V | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 100A | ||
Series AF | ||
Function Installation Contactor | ||
Mount Type DIN Rail | ||
Normal State Configuration 2 NO/2 NC | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Terminal Type Screw | ||
Operational Current Ie 100A | ||
Control Circuit Voltage Uc 100, 250V | ||
Contactor Application Installation Contactor | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 110mm | ||
Standards/Approvals EN 50155, IEC 60077-1, IEC 60077-2, IEC 61373, UL 508, TR CU 001/2011, IEC/EN 60947-1, IEC/EN 60947-4-1, CSA C22-2 N°14 | ||
Width 120mm | ||
Depth 110mm | ||
Pole and Throw Configuration 4P | ||
- COO (Country of Origin):
- FR
1SBL337501R7000
The ABB contactor with 1 built-in auxiliary contact and screw terminals, managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Close to contactor fitted with thermal O/L relay
Screw terminals
