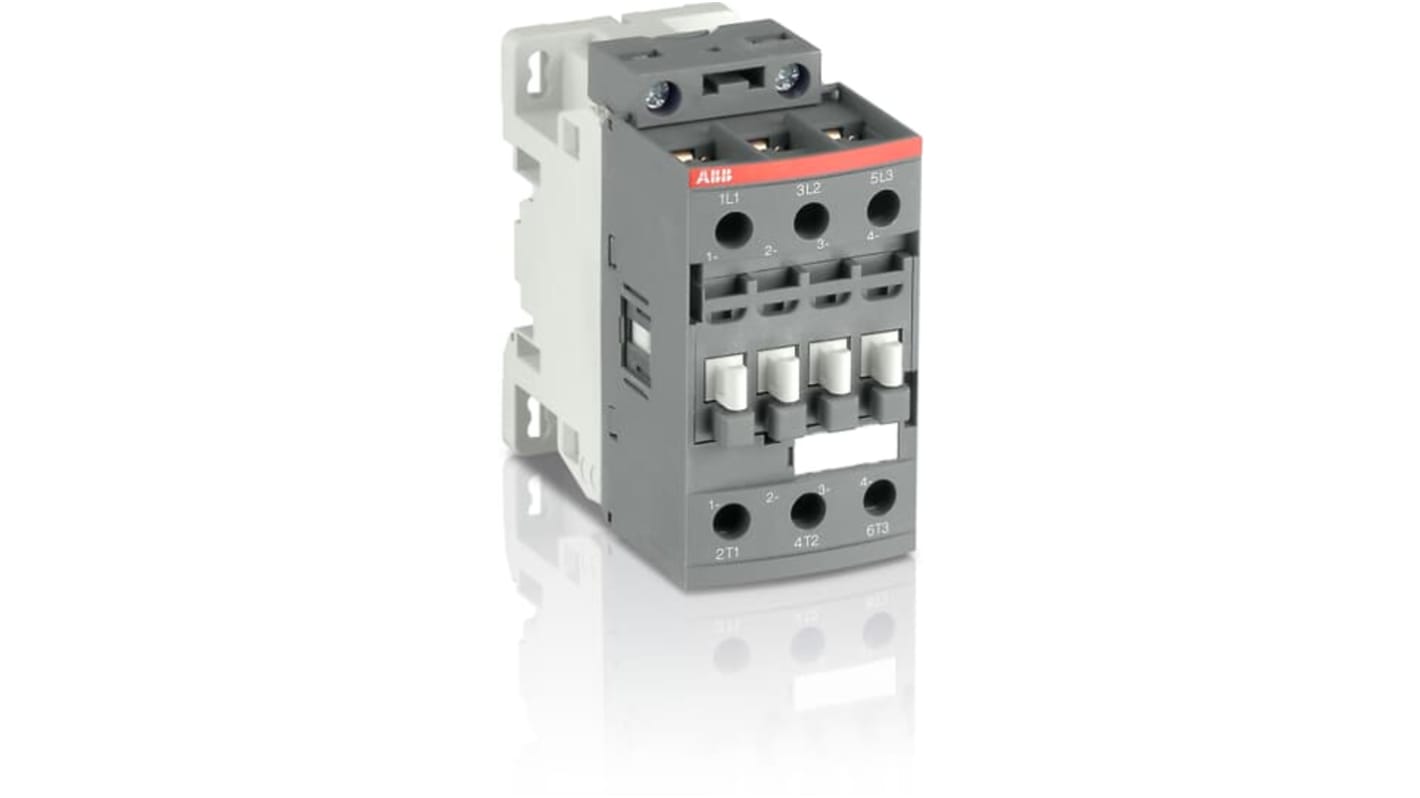

ABB AF26ZB-30-00-21 Contactor, 20V dc, 60 V dc Coil, 3-Pole, 45 A, 15 kW 60V dc, 3 NO, 690V
- RS Stock No.:
- 258-9499
- Mfr. Part No.:
- 1SBL236061R2100
- Brand:
- ABB
Subtotal (1 unit)*
£164.89
(exc. VAT)
£197.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £164.89 |
*price indicative
- RS Stock No.:
- 258-9499
- Mfr. Part No.:
- 1SBL236061R2100
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 20, 60V dc | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 45A | |
| Power Rating | 15kW | |
| Series | AF26ZB-30-00-21 | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | General purpose Contactor | |
| Control Circuit Voltage Uc | 60V dc | |
| Operational Current Ie | 26A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-4-1, TR CU 001/2011, UL 60947-4-1, CSA C22.2 No. 60947-4-1, EN 50155, IEC 60077-1, IEC 60077-2 | |
| Width | 45mm | |
| Length | 86mm | |
| Depth | 86mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 20, 60V dc | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 45A | ||
Power Rating 15kW | ||
Series AF26ZB-30-00-21 | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Contactor Application General purpose Contactor | ||
Control Circuit Voltage Uc 60V dc | ||
Operational Current Ie 26A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, TR CU 001/2011, UL 60947-4-1, CSA C22.2 No. 60947-4-1, EN 50155, IEC 60077-1, IEC 60077-2 | ||
Width 45mm | ||
Length 86mm | ||
Depth 86mm | ||
- COO (Country of Origin):
- FR
1SBL236061R2100
The ABB contactor with 1 built-in auxiliary contact and screw terminals, managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Close to contactor fitted with thermal O/L relay
Screw terminals
