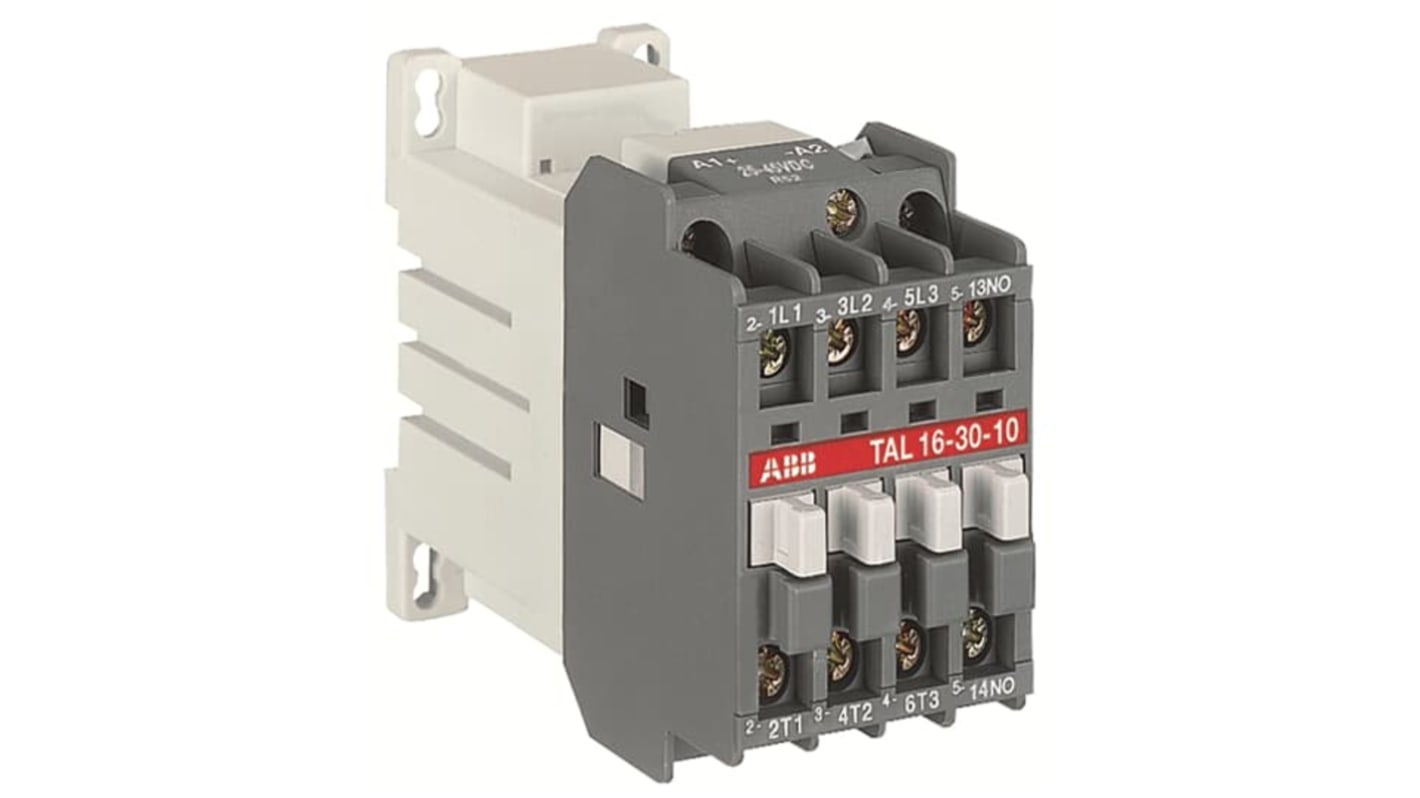

ABB TAL Contactor, 17V, 32 V Coil, 3-Pole, 4 A, 9 kW 17V, 32 V, 3 NO, 690V
- RS Stock No.:
- 258-9496
- Mfr. Part No.:
- 1SBL183061R5110
- Brand:
- ABB
Subtotal (1 unit)*
£143.75
(exc. VAT)
£172.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £143.75 |
*price indicative
- RS Stock No.:
- 258-9496
- Mfr. Part No.:
- 1SBL183061R5110
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 17, 32V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 4A | |
| Power Rating | 9kW | |
| Series | TAL | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 30A | |
| Contactor Application | Installation Contactor | |
| Control Circuit Voltage Uc | 17, 32V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60068-2-30 and 60068-2-11, IEC 60068-2-27, IEC 60077, UTE C 63-100, IEC 60529, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 60715 | |
| Width | 44mm | |
| Length | 78mm | |
| Depth | 97mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 17, 32V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 4A | ||
Power Rating 9kW | ||
Series TAL | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 30A | ||
Contactor Application Installation Contactor | ||
Control Circuit Voltage Uc 17, 32V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60068-2-30 and 60068-2-11, IEC 60068-2-27, IEC 60077, UTE C 63-100, IEC 60529, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 60715 | ||
Width 44mm | ||
Length 78mm | ||
Depth 97mm | ||
- COO (Country of Origin):
- BG
1SBL183061R5110
The ABB contactor with 1 built-in auxiliary contact and screw terminals, managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Close to contactor fitted with thermal O/L relay
Screw terminals
