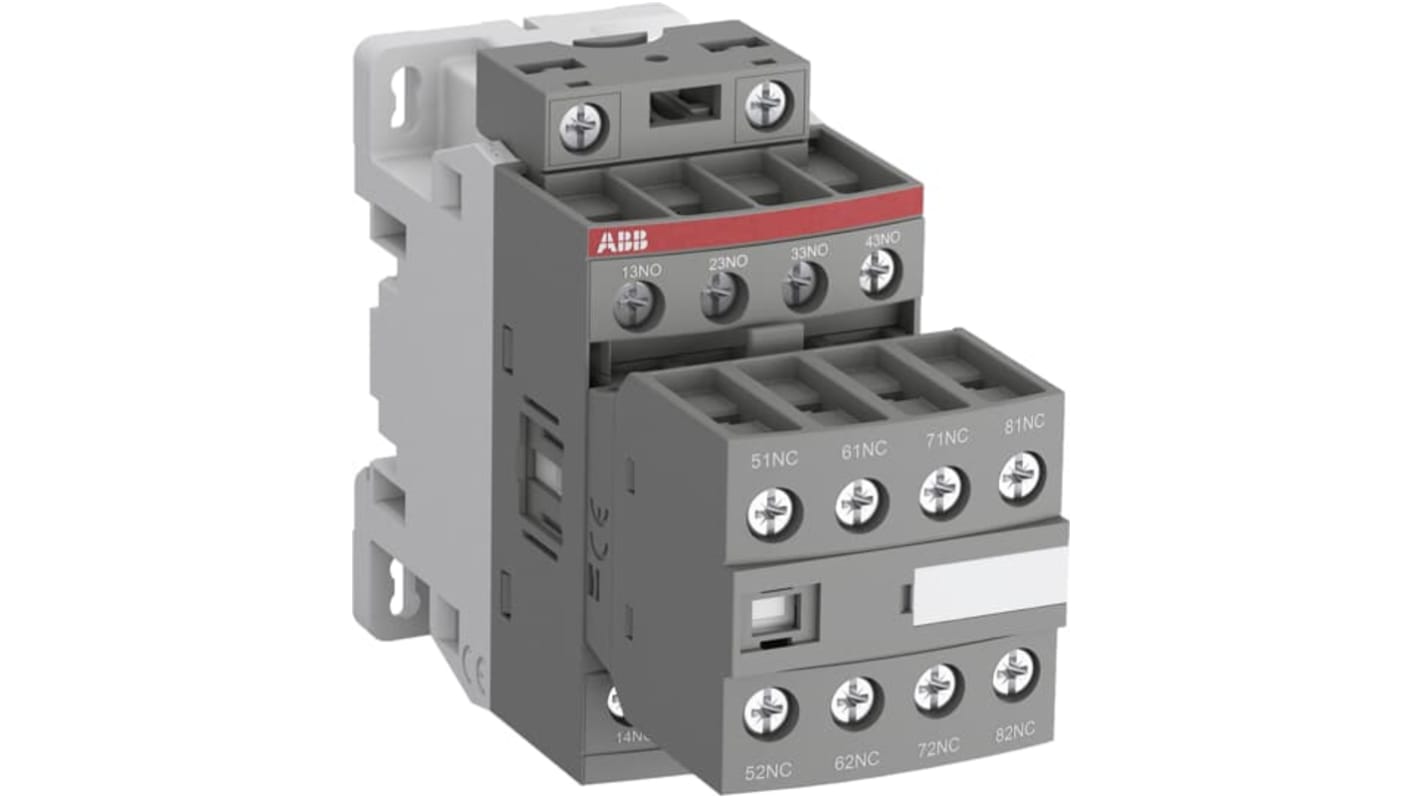

ABB NFZB44E-22 Contactor Relay, 130V, 48 V Coil, 4 A 130V, 48 V, 4 NO/4 NC, 690V
- RS Stock No.:
- 258-9439
- Mfr. Part No.:
- 1SBH136061R2244
- Brand:
- ABB
Subtotal (1 unit)*
£117.05
(exc. VAT)
£140.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.05 |
*price indicative
- RS Stock No.:
- 258-9439
- Mfr. Part No.:
- 1SBH136061R2244
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor Relay | |
| Coil Voltage | 130, 48V | |
| Contact Voltage | 690V | |
| Contact Current | 4A | |
| Series | NFZB44E-22 | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO/4 NC | |
| Auxiliary Contact Configuration | 4 NO/4 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 130, 48V | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Auxiliary Contactor | |
| Maximum Operating Temperature | 70°C | |
| Length | 86mm | |
| Standards/Approvals | UL 60947-5-1, IEC 60947-5-1, IEC 61373, TR CU 001/2011, CSA C22.2 No. 60947-5-1, EN 50155, IEC 60077-1, IEC 60947-1, IEC 60077-2 | |
| Width | 45mm | |
| Depth | 86mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor Relay | ||
Coil Voltage 130, 48V | ||
Contact Voltage 690V | ||
Contact Current 4A | ||
Series NFZB44E-22 | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO/4 NC | ||
Auxiliary Contact Configuration 4 NO/4 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 130, 48V | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Auxiliary Contactor | ||
Maximum Operating Temperature 70°C | ||
Length 86mm | ||
Standards/Approvals UL 60947-5-1, IEC 60947-5-1, IEC 61373, TR CU 001/2011, CSA C22.2 No. 60947-5-1, EN 50155, IEC 60077-1, IEC 60947-1, IEC 60077-2 | ||
Width 45mm | ||
Depth 86mm | ||
- COO (Country of Origin):
- FR
1SBH136061R2244
The ABB NFZ contactor relay is used for switching auxiliary and control circuits. NFZ contactor relay include an electronic coil interface accepting a wide control voltage Uc min. to Uc max. It has only four coils cover control voltages between 24 to 250 V 50/60 Hz or 12 to 250 V DC. It can manage large control voltage variations.
Screw terminals
IP20 Protection
