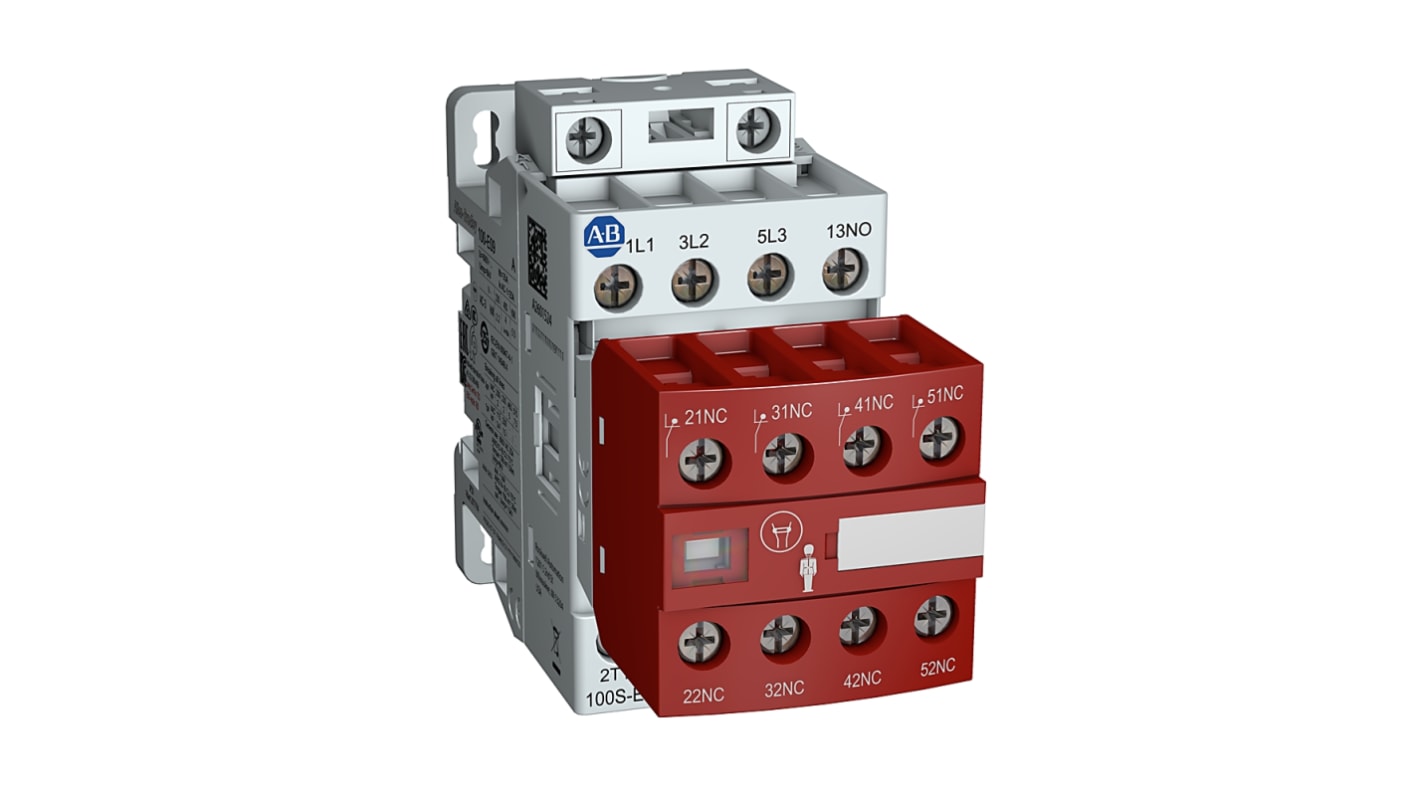

Allen Bradley 100S-E Safety Contactor Contactor, 24V ac, 60 V ac Coil, 3-Pole, 12 A, 7.5 kW, 2 NO/3 NC
- RS Stock No.:
- 257-5350
- Mfr. Part No.:
- 100S-E12EJ23C
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£90.95
(exc. VAT)
£109.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.95 |
*price indicative
- RS Stock No.:
- 257-5350
- Mfr. Part No.:
- 100S-E12EJ23C
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Contactor | |
| Coil Voltage | 24, 60V ac | |
| Number of Poles | 3 | |
| Contact Current | 12A | |
| Power Rating | 7.5kW | |
| Series | 100S-E Safety Contactor | |
| Function | Direct on Line | |
| Normal State Configuration | 2 NO/3 NC | |
| Number of Auxiliary Contacts | 5 | |
| Auxiliary Contact Configuration | 2 NO/3 NC | |
| Terminal Type | Screw | |
| Contactor Application | Direct-on-Line (DoL) | |
| Operational Current Ie | 9A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 20mm | |
| Standards/Approvals | No | |
| Width | 50mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Contactor | ||
Coil Voltage 24, 60V ac | ||
Number of Poles 3 | ||
Contact Current 12A | ||
Power Rating 7.5kW | ||
Series 100S-E Safety Contactor | ||
Function Direct on Line | ||
Normal State Configuration 2 NO/3 NC | ||
Number of Auxiliary Contacts 5 | ||
Auxiliary Contact Configuration 2 NO/3 NC | ||
Terminal Type Screw | ||
Contactor Application Direct-on-Line (DoL) | ||
Operational Current Ie 9A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Depth 20mm | ||
Standards/Approvals No | ||
Width 50mm | ||
Pole and Throw Configuration 3 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Rockwell Automation IEC contactor which works with rated operational voltage of 24 to 60V AC, 20 to 60V DC at 12 A. This contactor has 2 (NO) main poles per contact and 3 (NC) auxiliary poles per contact. The contactors from this 100S-E have electronic coils with built-in surge suppression.
AC/DC electronic coil with built-in surge suppression
Low-power auxiliary contacts for feedback circuit
