RS Better World

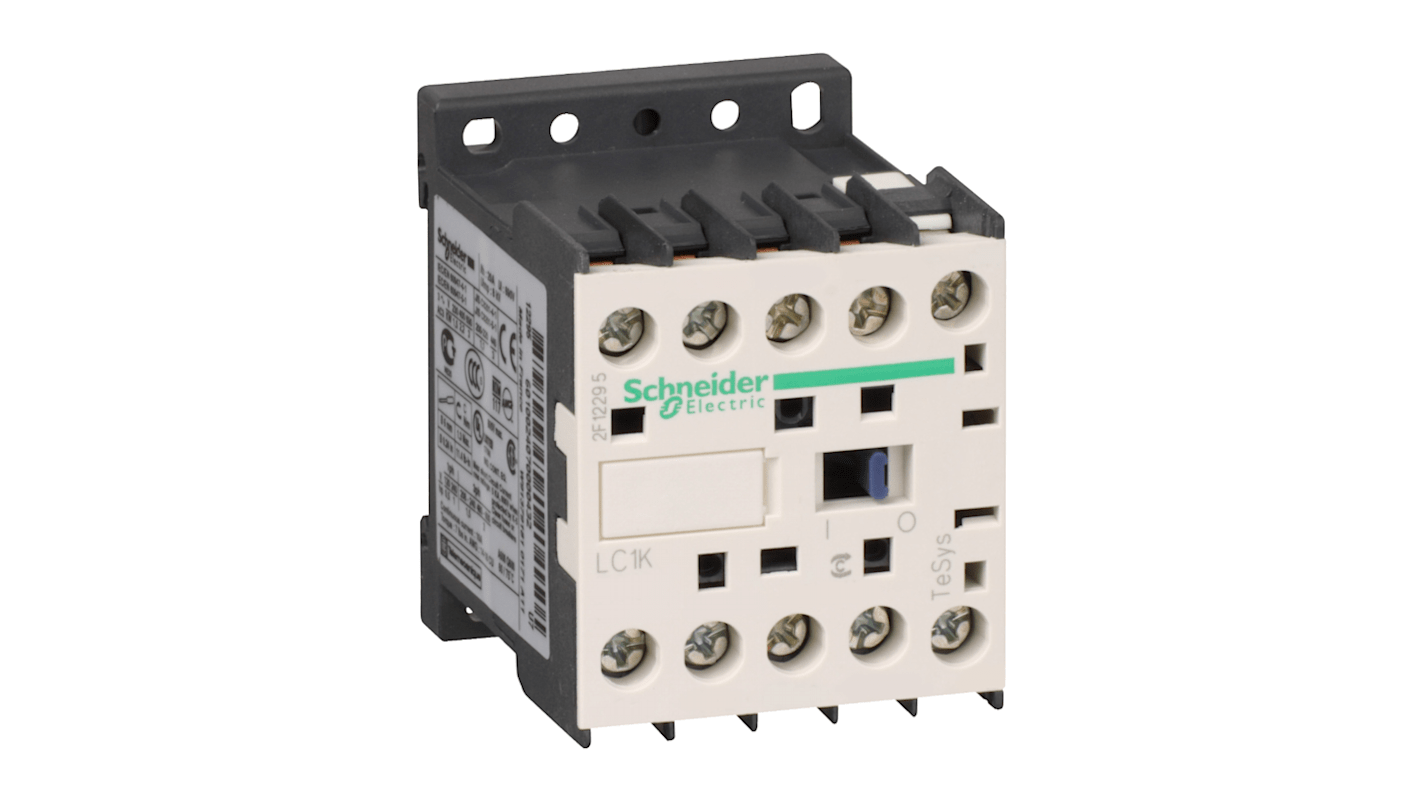

Schneider Electric TeSyS K Contactor, 42V ac Coil, 3-Pole, 20 A, 4 kW, 1 NO/1 NC
- RS Stock No.:
- 257-0937
- Mfr. Part No.:
- LC1K0910D7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£43.92
(exc. VAT)
£52.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.92 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 257-0937
- Mfr. Part No.:
- LC1K0910D7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 42V ac | |
| Number of Poles | 3 | |
| Contact Current | 20A | |
| Series | TeSyS K | |
| Power Rating | 4kW | |
| Function | Changeover Contactor | |
| Normal State Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Contactor Application | Changeover Contactor | |
| Operational Current Ie | 9A | |
| Length | 48mm | |
| Standards/Approvals | CSA, UKCA, UL | |
| Width | 65mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 3 NO | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 42V ac | ||
Number of Poles 3 | ||
Contact Current 20A | ||
Series TeSyS K | ||
Power Rating 4kW | ||
Function Changeover Contactor | ||
Normal State Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 1 | ||
Contactor Application Changeover Contactor | ||
Operational Current Ie 9A | ||
Length 48mm | ||
Standards/Approvals CSA, UKCA, UL | ||
Width 65mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Pole and Throw Configuration 3 NO | ||
- COO (Country of Origin):
- FR
The Schneider Electric contactor for motor control applications. It provides a low consumption coil with electronic control. For operating rates until 600 cycles per hour and environments until 60°C, it procures high reliability and durability. It is compact and has DIN-rail mounting or screw fixing and optimized size to save customer cabinet space.
Wide range of accessories to satisfy different customer usage
3 pole
Easier to install and operate with multi-standard screws
Improved fire resistance, and dustproof auxiliaries
Ring-lug terminals
