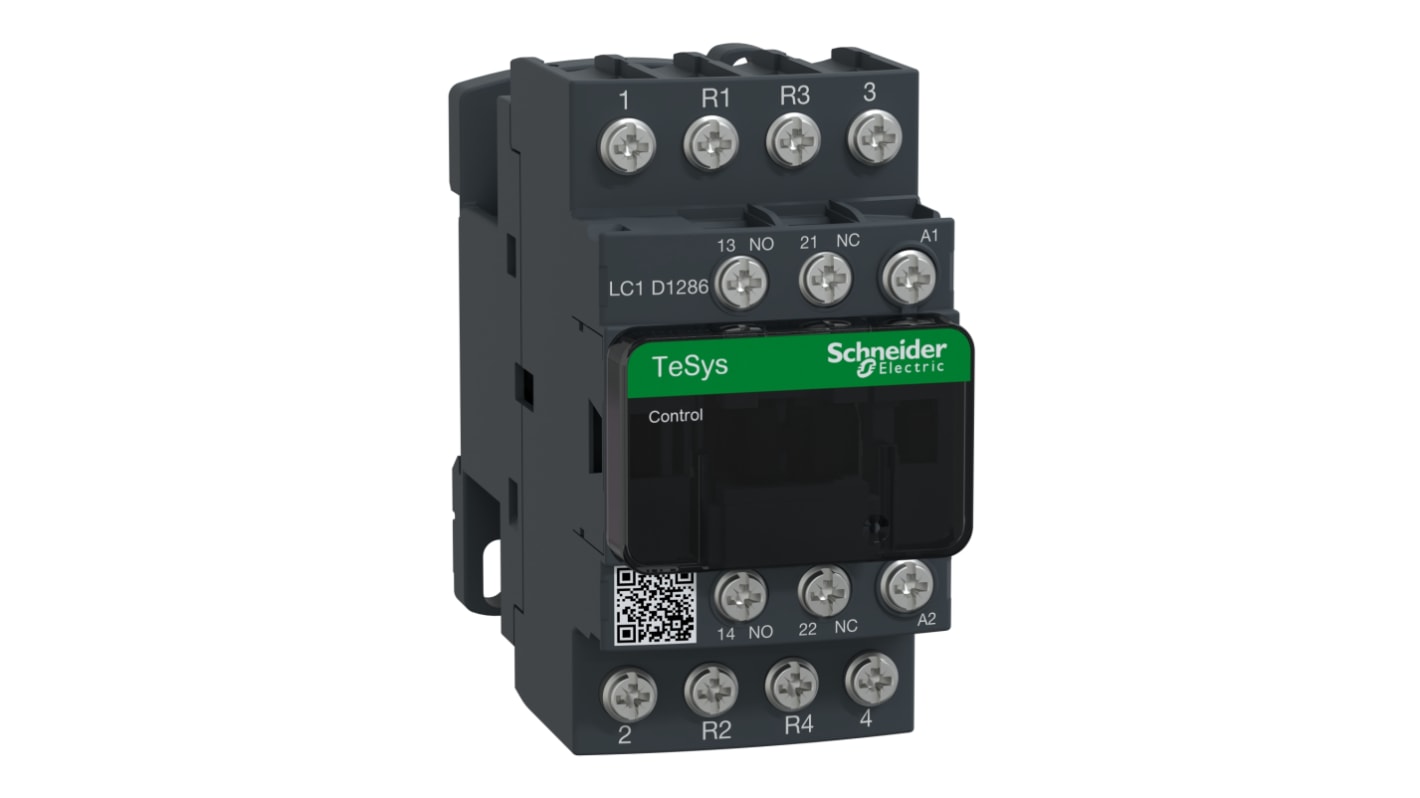

Name: Schneider Electric TeSys D LC1D Contactor, 208 V Coil, 4-Pole, 25 A, 1 NO + 1 NC
Brand: Schneider Electric
SKU: 256-4296
Price: 121.37 GBP
Availability: Discontinued

Schneider Electric LC1D Series Contactor, 208V Coil Voltage, 1 NO + 1 NC - LC1D1286LE7

This compact contactor from the TeSys Deca series features a 4-pole configuration and is rated for a current of 25A at a control voltage of 208V AC. It operates efficiently within a temperature range of -40 to +60°C and has a power circuit insulation voltage rating of 690V, ensuring robust performance under demanding conditions.

Features & Benefits

• 4 poles for versatile functionality and control options
• 25A current rating for high load handling capabilities
• Changeover contact configuration for operational flexibility
• Two auxiliary contacts for expanded circuit control

Applications

• Ideal for motor control applications requiring reliable switching
• Suitable for heating and HVAC systems for effective circuit control
• Implemented in signalling circuits in industrial machinery

Will it support both AC and DC loads?

This device is primarily designed for AC load applications.

Can auxiliary contacts be used for additional functionalities?

Yes, it includes two auxiliary contacts for expanded functionality.

How does the control circuit technology affect performance?

It allows for stable operation without a built-in suppressor module.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	208 V
	Number of Poles	4
	Contact Current Rating	25 A
	Series	LC1D
	Range	TeSys D
	Function	Changeover Contactor
	Normal State Configuration	1 NO + 1 NC
	Number Of Auxiliary Contacts	2
	Auxiliary Contact Configuration	1NO + 1NC
	Terminal Type	Lugs Ring
	Width	45mm
	Length	85mm
	Depth	92mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	'+60°C
	Pole and Throw Configuration	4P
	Mounting Style	Rail

	Select all
	Brand Schneider Electric
	Coil Voltage 208 V
	Number of Poles 4
	Contact Current Rating 25 A
	Series LC1D
	Range TeSys D
	Function Changeover Contactor
	Normal State Configuration 1 NO + 1 NC
	Number Of Auxiliary Contacts 2
	Auxiliary Contact Configuration 1NO + 1NC
	Terminal Type Lugs Ring
	Width 45mm
	Length 85mm
	Depth 92mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature '+60°C
	Pole and Throw Configuration 4P
	Mounting Style Rail
