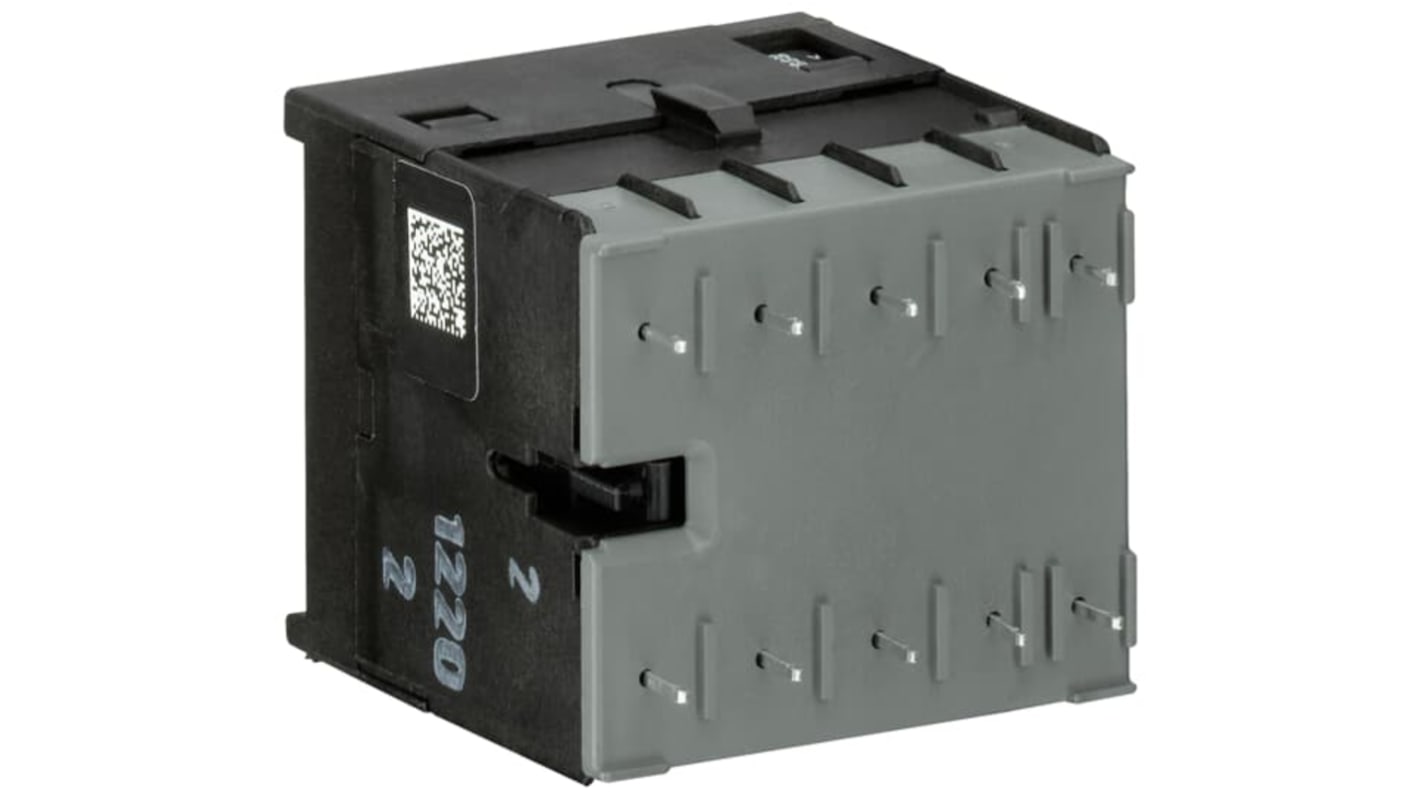

ABB GJL121 Contactor, 24V ac Coil, 3-Pole, 12 A, 4 kW 24V ac, 3 NO/1 NC, 690V
- RS Stock No.:
- 253-4730
- Mfr. Part No.:
- GJL1211009R0011
- Brand:
- ABB
Subtotal (1 pack of 10 units)*
£275.97
(exc. VAT)
£331.16
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £27.597 | £275.97 |
*price indicative
- RS Stock No.:
- 253-4730
- Mfr. Part No.:
- GJL1211009R0011
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 24V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 12A | |
| Power Rating | 4kW | |
| Series | GJL121 | |
| Function | Control Unit | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Soldering | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 12A | |
| Contactor Application | Control Unit | |
| Control Circuit Voltage Uc | 24V ac | |
| Maximum Operating Temperature | 55°C | |
| Width | 47.5mm | |
| Standards/Approvals | UL 60947-1, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, IEC/EN 60947-5-1 | |
| Depth | 47.7mm | |
| Length | 47.7mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 24V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 12A | ||
Power Rating 4kW | ||
Series GJL121 | ||
Function Control Unit | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Soldering | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 12A | ||
Contactor Application Control Unit | ||
Control Circuit Voltage Uc 24V ac | ||
Maximum Operating Temperature 55°C | ||
Width 47.5mm | ||
Standards/Approvals UL 60947-1, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, IEC/EN 60947-5-1 | ||
Depth 47.7mm | ||
Length 47.7mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- DE
ABB GJL121 Series Contactor, 12A Current Rating , 24V AC Coil Voltage - GJL1211009R0011
This contactor is an essential control unit designed for reliable operation in various electrical applications. With a Compact DIN rail mounting style and dimensions of 47.7mm x 47.5mm x 47.7mm, it offers versatility for electrical contractors. Operating at a Coil voltage of 24 V ac, this device can handle a maximum contact voltage rating of 690V and a contact current rating of 12 A, making it suitable for diverse automation tasks.
Features & Benefits
• Operates efficiently at 24 V ac for versatile applications
• Accommodates up to 3 poles for enhanced control
• Capable of managing 690V for robust performance
• Designed with a control unit configuration for precise functionality
• Utilises a 3NO and 1NC normal state configuration for versatile use
• Features 1NC auxiliary contact configuration for added functionality
• Accommodates up to 3 poles for enhanced control
• Capable of managing 690V for robust performance
• Designed with a control unit configuration for precise functionality
• Utilises a 3NO and 1NC normal state configuration for versatile use
• Features 1NC auxiliary contact configuration for added functionality
Applications
• Employed in automated machine control systems
• Utilised in motor control for efficient operations
• Integrated within industrial automation frameworks
• Ideal for switching circuits in commercial equipment
• Applied in HVAC systems for effective environmental control
• Utilised in motor control for efficient operations
• Integrated within industrial automation frameworks
• Ideal for switching circuits in commercial equipment
• Applied in HVAC systems for effective environmental control
What is the temperature range for the safe operation of this device?
The operating temperature range is between -25 and +55°C, making it suitable for various environments.
How does the auxiliary contact configuration enhance functionality?
The 1NC auxiliary contact configuration allows for additional control capabilities, enabling more complex circuit designs.
Can this component handle varying power ratings depending on the application?
Yes, it has a power rating of 4 kW, making it adaptable for different electrical loads.
What are the benefits of using a DIN rail mount design?
The DIN rail mount design provides easy installation and Compact organisation within electrical boards, facilitating streamlined maintenance.
What type of terminals does this component utilise?
It features soldering pins as Terminal types, ensuring reliable connectivity in installations.
