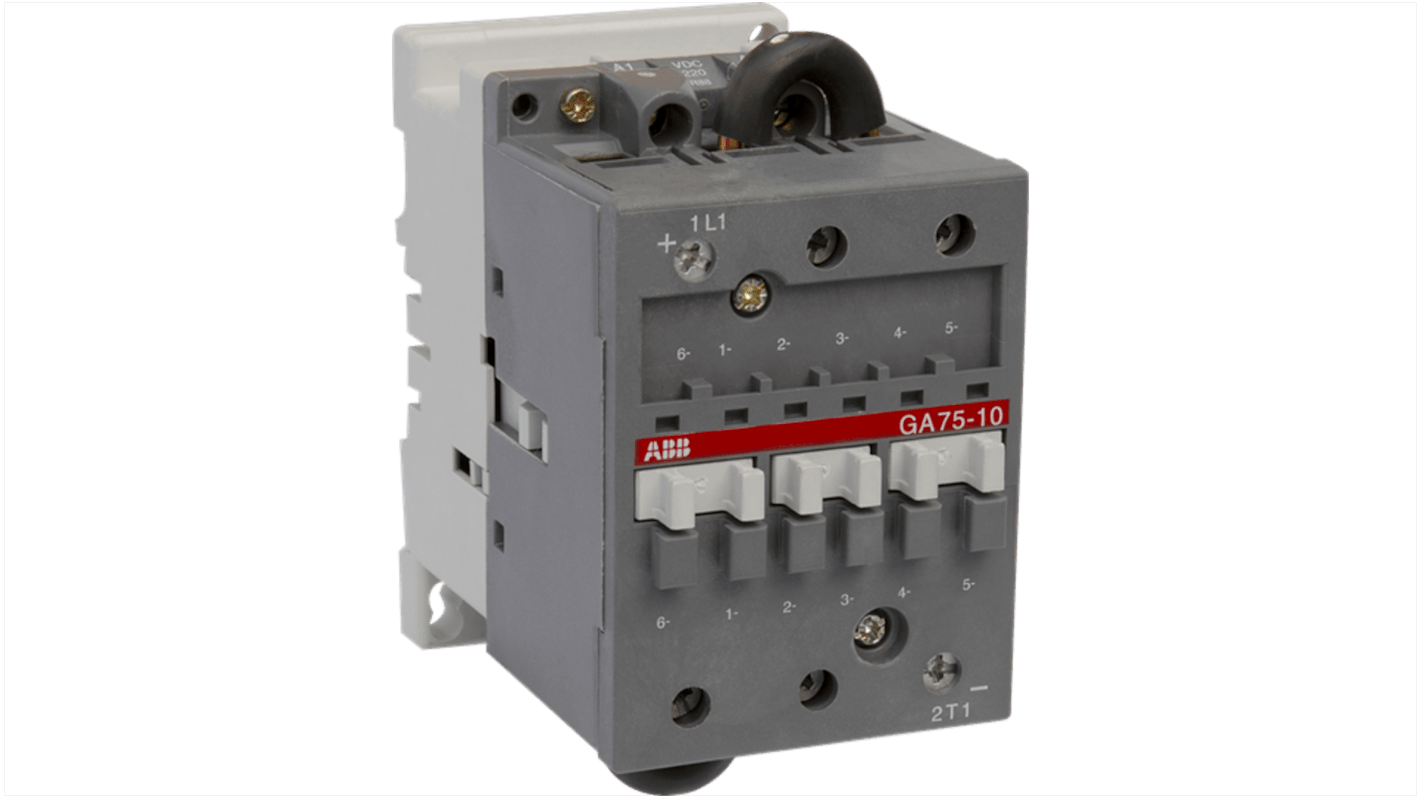

ABB GA75 Contactor, 220V, 230 V Coil, 3-Pole, 100 A 220V, 230 V, 3 NO, 1kV
- RS Stock No.:
- 253-2035
- Mfr. Part No.:
- 1SBL411025R8000
- Brand:
- ABB
Subtotal (1 unit)*
£437.71
(exc. VAT)
£525.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £437.71 |
*price indicative
- RS Stock No.:
- 253-2035
- Mfr. Part No.:
- 1SBL411025R8000
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 220, 230V | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 1kV | |
| Contact Current | 100A | |
| Series | GA75 | |
| Function | DC Switching | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Contactor Application | Control Unit | |
| Control Circuit Voltage Uc | 220, 230V | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 120A | |
| Maximum Operating Temperature | 70°C | |
| Length | 108mm | |
| Standards/Approvals | EU Directive 2011/65/EU RoHS Status | |
| Width | 70mm | |
| Depth | 132mm | |
| Pole and Throw Configuration | 1P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 220, 230V | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 1kV | ||
Contact Current 100A | ||
Series GA75 | ||
Function DC Switching | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Contactor Application Control Unit | ||
Control Circuit Voltage Uc 220, 230V | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 120A | ||
Maximum Operating Temperature 70°C | ||
Length 108mm | ||
Standards/Approvals EU Directive 2011/65/EU RoHS Status | ||
Width 70mm | ||
Depth 132mm | ||
Pole and Throw Configuration 1P | ||
ABB GA75 Series Contactor, 125A Contact Current, 220 to 230V Control Circuit Voltage - 1SBL411025R8000
This contactor is a DC switching device designed for industrial control applications where reliable opening and closing of DC circuits is required. It operates with an AC control Coil and is configured as a three-pole, single-pole connection device with three normally open contacts. The unit is intended for integration into power control assemblies and offers robust electrical switching capability for medium to high DC voltages up to 1000 V.
Features & Benefits
• Rated for continuous DC switching at 125A providing high-current handling
• AC Coil rated 220 to 230V enabling standard mains control
• Screw terminals support heavy conductors for secure connections
• Arc chutes with permanent magnets reduce DC breaking stress
• Mechanical endurance of 10 million cycles for long service life
• AC Coil rated 220 to 230V enabling standard mains control
• Screw terminals support heavy conductors for secure connections
• Arc chutes with permanent magnets reduce DC breaking stress
• Mechanical endurance of 10 million cycles for long service life
Applications
• Suitable for DC power distribution switching in industrial plants
• Ideal for traction or battery system switching solutions
• Used for control of DC motors and large resistive loads
• Can be used in renewable energy storage and inverter protection
• Ideal for traction or battery system switching solutions
• Used for control of DC motors and large resistive loads
• Can be used in renewable energy storage and inverter protection
What Terminal types are provided for main connections?
Main poles use screw terminals with M6 screws and a 13x10mm connector option for reliable conductor clamping and high-current capacity.
How does Coil consumption affect control panel design?
Pull-in and holding values vary by frequency
pull-in around 180 to 190 V·A and holding approximately 18 to 21 V·A, which informs relay or driver sising and thermal loading in the control supply.
What environmental limits should be observed during installation?
Operate between −40 °C and +70 °C at nominal control voltage, with storage down to −60 °C and permitted altitude up to 3000 m
these conditions influence placement and enclosure selection.
How quickly does it switch under normal conditions?
Typical operate times are 8 to 27 MS to close and 4 to 11 MS to open, which assists coordination with protection devices and timing-sensitive control schemes.
