ABB 1SBL3 Contactor, 250V, 500 V Coil, 3-Pole, 65 A, 37 kW 250V, 500 V, 4 NO/1 NC, 690V
- RS Stock No.:
- 253-2023
- Mfr. Part No.:
- 1SBL387001R1411
- Brand:
- ABB
Subtotal (1 unit)*
£266.65
(exc. VAT)
£319.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £266.65 |
*price indicative
- RS Stock No.:
- 253-2023
- Mfr. Part No.:
- 1SBL387001R1411
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 250, 500V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 65A | |
| Series | 1SBL3 | |
| Power Rating | 37kW | |
| Function | Motor Control | |
| Normal State Configuration | 4 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Contactor Application | Control Unit | |
| Operational Current Ie | 65A | |
| Control Circuit Voltage Uc | 250, 500V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 126mm | |
| Length | 111mm | |
| Standards/Approvals | IEC 60947-4-1, IEC 60947-5-1 | |
| Width | 111mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 250, 500V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 65A | ||
Series 1SBL3 | ||
Power Rating 37kW | ||
Function Motor Control | ||
Normal State Configuration 4 NO/1 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Contactor Application Control Unit | ||
Operational Current Ie 65A | ||
Control Circuit Voltage Uc 250, 500V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Depth 126mm | ||
Length 111mm | ||
Standards/Approvals IEC 60947-4-1, IEC 60947-5-1 | ||
Width 111mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- FR

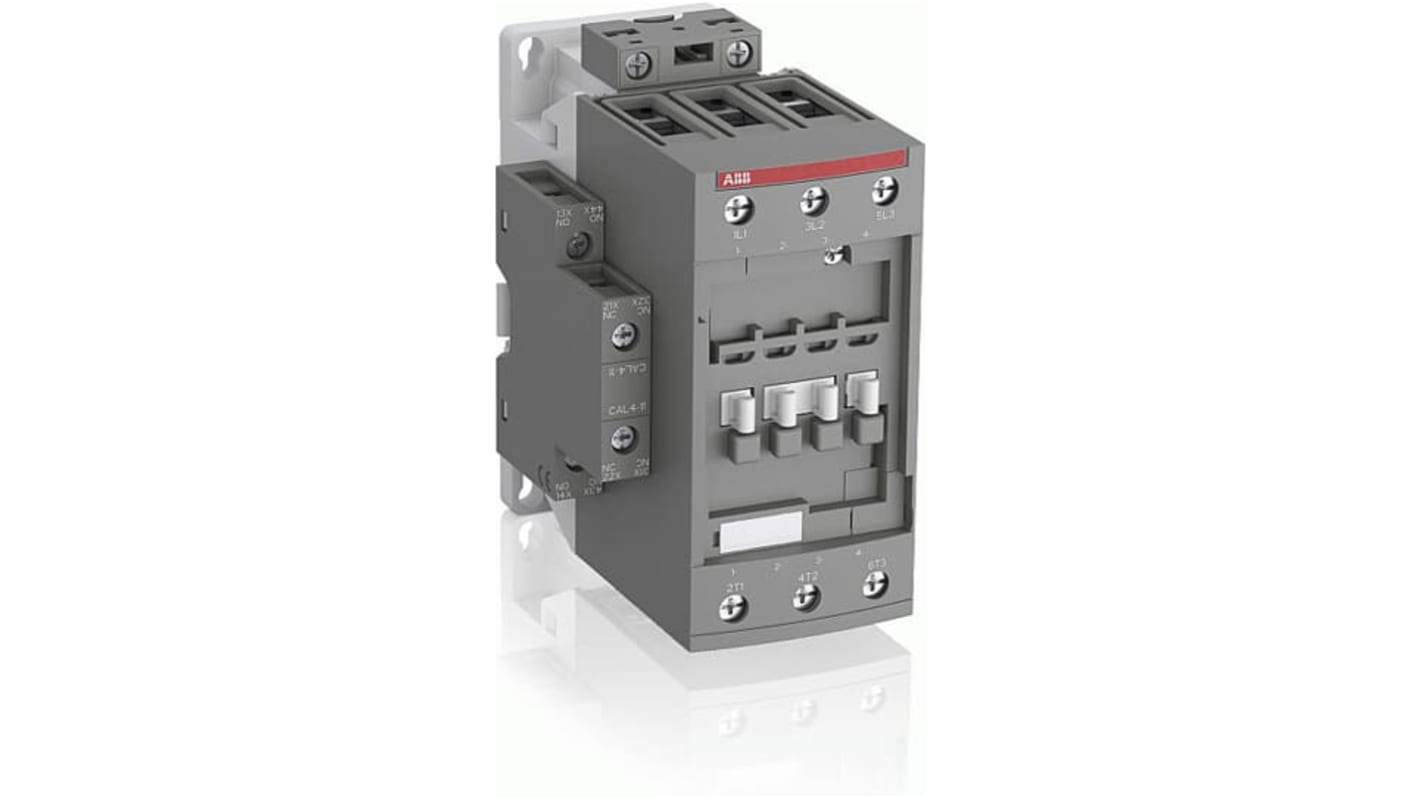

The ABB AF65-30-11-14 is a 3 pole - 690 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and screw terminals, controlling motors up to 30 kW / 400 V AC (AC3) or 50 hp / 480 V UL and switching power circuits up to 105 A (AC-1) or 90 A UL general use. Due to the AF technology, the contactor has a wide control voltage range, managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks.
Degree of protection IP20
Ambient air temperature for operation is -40 to +70 °C
Screw terminal
