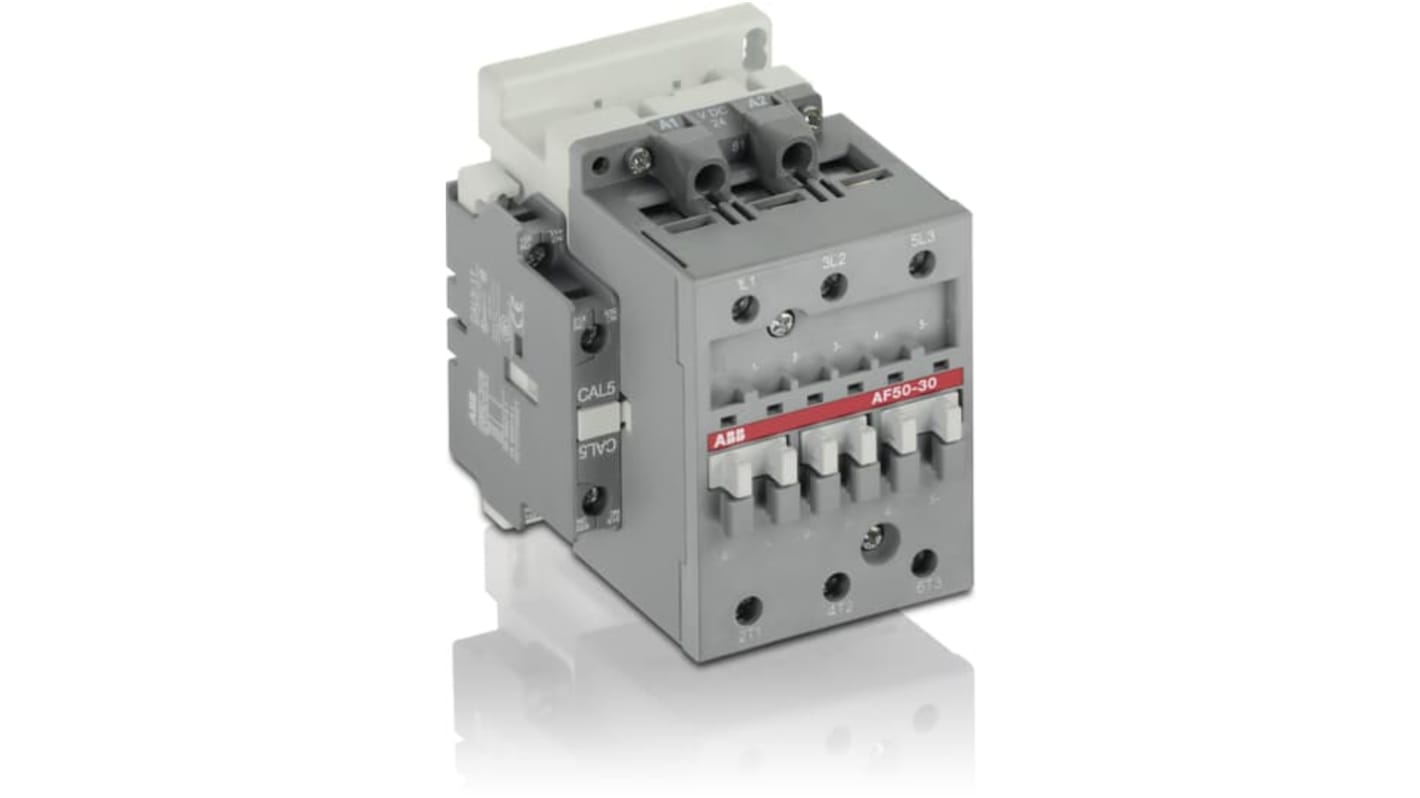

ABB AF50 Contactor, 3-Pole, 100 A, 22 kW 130V, 48 V, 3 NO, 690V
- RS Stock No.:
- 253-1998
- Mfr. Part No.:
- 1SBL357001R6911
- Brand:
- ABB
Subtotal (1 unit)*
£338.18
(exc. VAT)
£405.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £338.18 |
*price indicative
- RS Stock No.:
- 253-1998
- Mfr. Part No.:
- 1SBL357001R6911
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 130, 40V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 100A | |
| Power Rating | 22kW | |
| Series | AF50 | |
| Function | Motor Control | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 2 | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 130, 48V | |
| Operational Current Ie | 100A | |
| Minimum Operating Temperature | -25°C | |
| Contactor Application | Control Unit | |
| Maximum Operating Temperature | 55°C | |
| Width | 82mm | |
| Standards/Approvals | UL 508, CSA C22-2 N°14, IEC/EN 60947-1, IEC/EN 60947-4-1 | |
| Length | 108mm | |
| Depth | 110mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 130, 40V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 100A | ||
Power Rating 22kW | ||
Series AF50 | ||
Function Motor Control | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 2 | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 130, 48V | ||
Operational Current Ie 100A | ||
Minimum Operating Temperature -25°C | ||
Contactor Application Control Unit | ||
Maximum Operating Temperature 55°C | ||
Width 82mm | ||
Standards/Approvals UL 508, CSA C22-2 N°14, IEC/EN 60947-1, IEC/EN 60947-4-1 | ||
Length 108mm | ||
Depth 110mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- BG
ABB AF50 Series Contactor, 100A Contact Current, 690V Contact Voltage - 1SBL357001R6911
This contactor is an industrial three-pole switching device designed to control three-phase motors and power circuits up to 690 V. It accepts AC or DC control supplies across a wide Coil voltage range, supports frequent electrical switching and is intended for installation where compact, high-current switching is required.
Features & Benefits
• 100A operational current enabling high-load motor switching
• 48 to 130V control Coil tolerates AC 50/60 Hz and DC supplies
• 22 kW power handling at 380/400V for medium-power drives
• Two auxiliary contacts providing 1 NO and 1 NC functionality
• Screw terminals for secure, high-current cable connections
• Mechanical durability rated to 10 million operations for longevity
• 48 to 130V control Coil tolerates AC 50/60 Hz and DC supplies
• 22 kW power handling at 380/400V for medium-power drives
• Two auxiliary contacts providing 1 NO and 1 NC functionality
• Screw terminals for secure, high-current cable connections
• Mechanical durability rated to 10 million operations for longevity
Applications
• Suitable for direct motor starting in industrial drives
• Ideal for bypass and changeover arrangements in power circuits
• Used for capacitor switching in reactive power control
• Can be used for lighting and general power distribution switching
• Suitable for installations requiring a Compact 3-pole contactor
• Ideal for bypass and changeover arrangements in power circuits
• Used for capacitor switching in reactive power control
• Can be used for lighting and general power distribution switching
• Suitable for installations requiring a Compact 3-pole contactor
What control-voltage flexibility does it provide?
The control Interface accepts 48 to 130V on 50 Hz, 60 Hz or DC, allowing one unit to adapt to local supply variations and tolerate short voltage dips.
How does it perform at elevated ambient temperatures?
Rated operational current derates with temperature
the 100A conventionally applies at 40 °C, falling to 85A at 55 °C and 70A at 70 °C as specified for the main circuit.
What short-circuit capabilities are available for coordination?
Maximum breaking capacity depends on system voltage and power factor
examples include 1,300A at 440V (cosφ = 0.45) and 630A at 690V (cosφ = 0.45) for AC‑1 conditions.
What mounting and connection options are supported?
The device uses screw terminals and accepts flexible and rigid conductors within published cross-section ranges for main and auxiliary circuits to ensure proper cable terminations.
