ABB 1SBL34 Contactor, 24V, 60 V Coil, 4-Pole, 70 A, 18.5 kW 20V dc, 60 V dc, 4 NO, 690V
- RS Stock No.:
- 253-1993
- Mfr. Part No.:
- 1SBL347201R1100
- Brand:
- ABB
Subtotal (1 unit)*
£294.84
(exc. VAT)
£353.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £294.84 |
*price indicative
- RS Stock No.:
- 253-1993
- Mfr. Part No.:
- 1SBL347201R1100
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 24, 60V | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 70A | |
| Series | 1SBL34 | |
| Power Rating | 18.5kW | |
| Function | Control Unit | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Number of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Operational Current Ie | 70A | |
| Control Circuit Voltage Uc | 20, 60V dc | |
| Contactor Application | Controlling Motors, Switching Power Circuits | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 70mm | |
| Standards/Approvals | EU Directive 2011/65/EU, IEC 60529, IEC 60947-4-1, UL/CSA | |
| Length | 113.5mm | |
| Depth | 113.5mm | |
| Pole and Throw Configuration | 4P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 24, 60V | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 70A | ||
Series 1SBL34 | ||
Power Rating 18.5kW | ||
Function Control Unit | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Number of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Operational Current Ie 70A | ||
Control Circuit Voltage Uc 20, 60V dc | ||
Contactor Application Controlling Motors, Switching Power Circuits | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Width 70mm | ||
Standards/Approvals EU Directive 2011/65/EU, IEC 60529, IEC 60947-4-1, UL/CSA | ||
Length 113.5mm | ||
Depth 113.5mm | ||
Pole and Throw Configuration 4P | ||
- COO (Country of Origin):
- FR

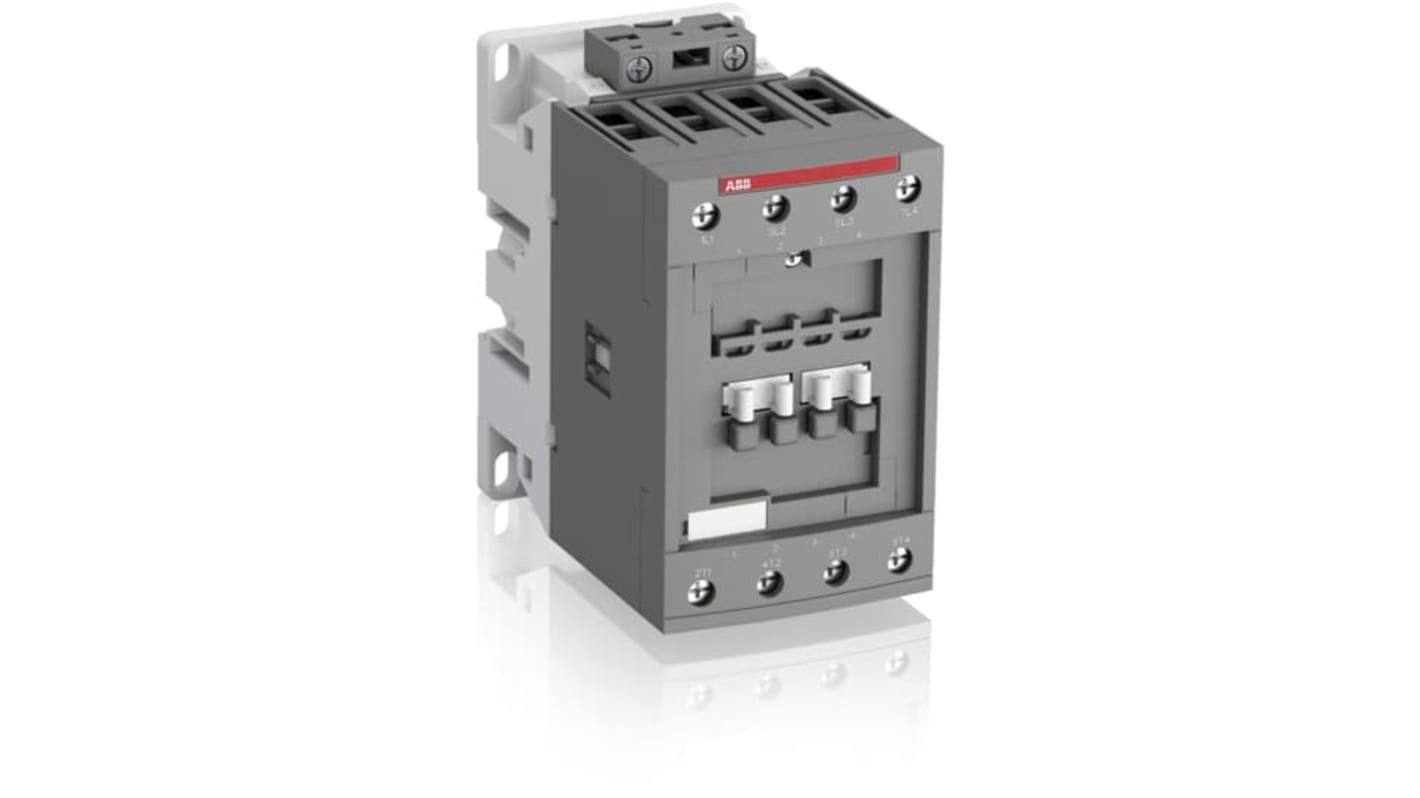

ABB 1SBL34 Series Contactor, 70A Current Rating , 690V Voltage Rating - 1SBL347201R1100
This contactor is a high-performance control unit designed to manage motors and power circuits efficiently. With a Compact design suited for DIN rail mounting, it features four poles and is rated for 690V applications. The device operates with a control voltage range of 24V to 60V AC/DC, making it versatile for various automation needs, and measures 113.5mm in depth and length, with a width of 70mm. It is designed for use with motors up to 18.5 kW.
Features & Benefits
• Operates with a wide control voltage range of 24V to 60V
• Handles contact currents up to 70A for powerful control
• Surge protection built in for reliable operation
• Easy to extend with auxiliary contact blocks
• Handles contact currents up to 70A for powerful control
• Surge protection built in for reliable operation
• Easy to extend with auxiliary contact blocks
Applications
• Utilised for controlling three phase and single phase motors
• Ideal for electrical systems requiring high current switching
• Suitable for installations in industrial automation sectors
• Employed in power distribution needing reliable contactors
• Ideal for electrical systems requiring high current switching
• Suitable for installations in industrial automation sectors
• Employed in power distribution needing reliable contactors
What is the maximum operational current this device can handle for AC-3 applications?
For AC-3 applications at 415V, it can handle a rated operational current of 40A, enabling effective motor control in industrial settings.
How does the design support installation and maintenance?
The screw Terminal type allows secure connections, and the Compact design facilitates quick installation on DIN rails, reducing installation time and effort.
What operational temperature range does this device support?
It is designed to operate effectively in an ambient temperature range from -40°C to +70°C, ensuring performance stability across varied environmental conditions.
What are the benefits of its surge protection feature?
The built-in surge protection helps safeguard electrical circuits, reducing the risk of damage from voltage spikes and enhancing overall system reliability.
