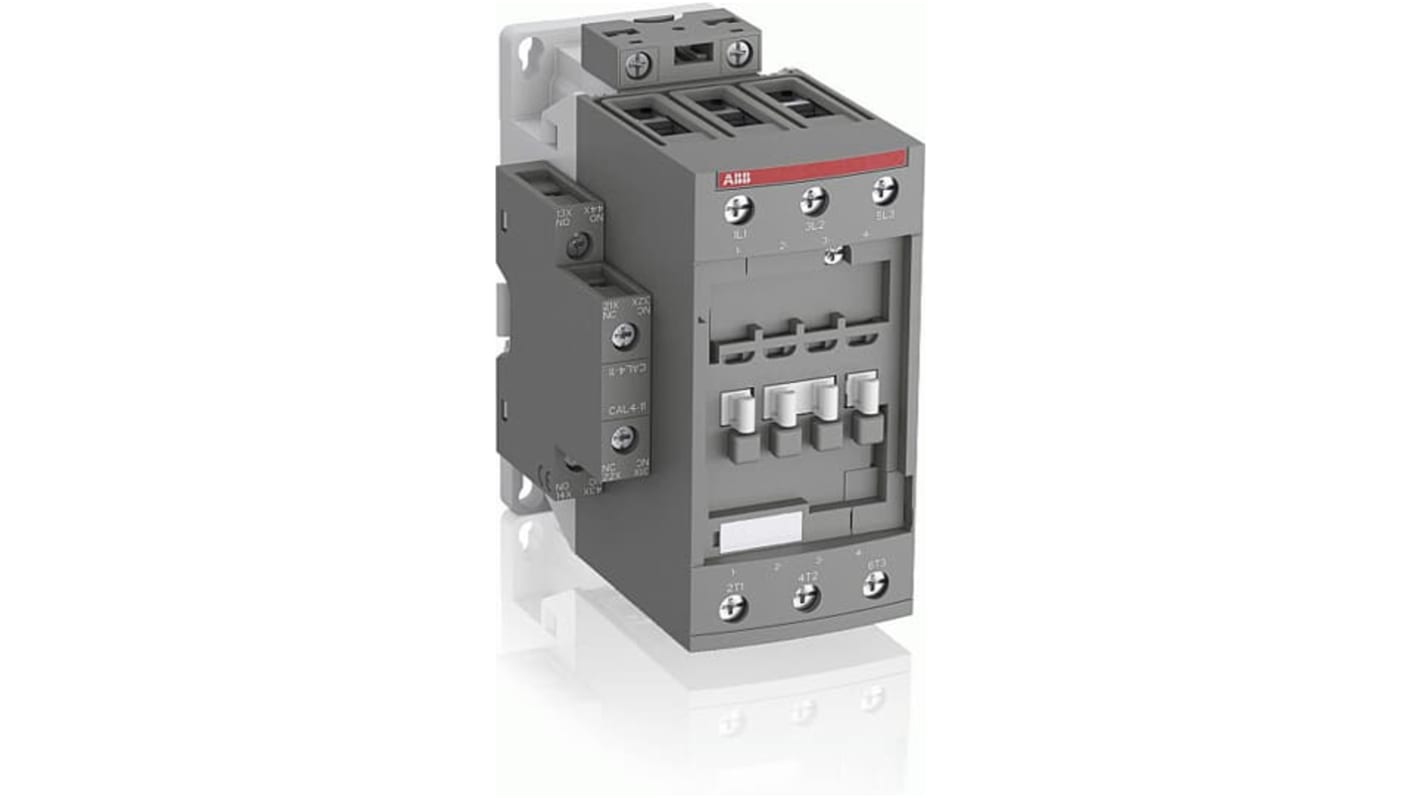

ABB 1SBL34 Contactor, 24V, 60 V Coil, 3-Pole, 70 A, 22 kW 60V, 3 NO/1 NC, 690V
- RS Stock No.:
- 253-1992
- Mfr. Part No.:
- 1SBL347001R1111
- Brand:
- ABB
Subtotal (1 unit)*
£216.90
(exc. VAT)
£260.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £216.90 |
*price indicative
- RS Stock No.:
- 253-1992
- Mfr. Part No.:
- 1SBL347001R1111
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24, 60V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 70A | |
| Power Rating | 22kW | |
| Series | 1SBL34 | |
| Function | Control Unit | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Contactor Application | Controlling Motors, Switching Power Circuits | |
| Control Circuit Voltage Uc | 60V | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 60A | |
| Maximum Operating Temperature | 70°C | |
| Length | 111mm | |
| Standards/Approvals | CCC, CE, CQC, CSA, cUL, DNV GL, GL, RoHS, UL | |
| Width | 67mm | |
| Depth | 111mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 24, 60V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 70A | ||
Power Rating 22kW | ||
Series 1SBL34 | ||
Function Control Unit | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Contactor Application Controlling Motors, Switching Power Circuits | ||
Control Circuit Voltage Uc 60V | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 60A | ||
Maximum Operating Temperature 70°C | ||
Length 111mm | ||
Standards/Approvals CCC, CE, CQC, CSA, cUL, DNV GL, GL, RoHS, UL | ||
Width 67mm | ||
Depth 111mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- FR
ABB 1SBL34 Series Contactor, 70A Contact Current Rating , 3 Poles - 1SBL347001R1111
This contactor is a versatile industrial control unit designed for a range of applications, providing efficient and reliable control over high voltage circuits. With its Compact dimensions of 111mm length, 67mm width, and 111mm depth, this 3-pole contactor is capable of handling a contact voltage rating of 690V and an operational current of up to 70A. It operates efficiently across a Coil voltage range of 24 to 60 V AC/DC, making it suitable for various control tasks within electrical and mechanical systems.
Features & Benefits
• Wide control voltage range reduces energy consumption
• Built in surge protection enhances operational reliability
• Supports DIN rail mounting for easy installation
• Auxiliary contact configuration allows for flexible control options
• Screw Terminal design ensures secure and stable connections
• High voltage capability manages demanding industrial tasks
• Built in surge protection enhances operational reliability
• Supports DIN rail mounting for easy installation
• Auxiliary contact configuration allows for flexible control options
• Screw Terminal design ensures secure and stable connections
• High voltage capability manages demanding industrial tasks
Applications
• Ideal for switching power circuits in machinery and automation systems
• Utilised in sectors requiring reliable industrial control solutions
• Suitable for environments with significant control voltage fluctuations
• Utilised in sectors requiring reliable industrial control solutions
• Suitable for environments with significant control voltage fluctuations
How does the Coil voltage range enhance operational efficiency?
The broad Coil voltage range of 24 to 60 V AC/DC allows the contactor to accommodate significant voltage variations, optimising energy use and ensuring reliable operation in fluctuating power conditions.
What is the maximum operational temperature for this device?
The contactor functions effectively within a maximum operating temperature of +70°C and can operate in environments as low as -40°C, ensuring performance in extreme conditions.
Can it be extended with additional components?
Yes, the contactor's block-type design allows for easy extension with supplementary auxiliary contact blocks and accessories, providing flexibility for various installation requirements.
