Eaton DILM Contactor, 220V ac/dc, 230 V ac/dc Coil, 4-Pole, 14 kW, 1 NO, 400V
- RS Stock No.:
- 251-0699
- Mfr. Part No.:
- 277926 DILM65-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£343.04
(exc. VAT)
£411.65
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £343.04 |
*price indicative
- RS Stock No.:
- 251-0699
- Mfr. Part No.:
- 277926 DILM65-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 220, 230V ac/dc | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 400V | |
| Series | DILM | |
| Power Rating | 14kW | |
| Function | Motor Control, Reversing | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 1 NO | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Contactor Application | Motor Control | |
| Operational Current Ie | 65A | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA, IEC/EN 60947, UL, VDE 0660 | |
| Length | 115mm | |
| Width | 55mm | |
| Depth | 147mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 220, 230V ac/dc | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 400V | ||
Series DILM | ||
Power Rating 14kW | ||
Function Motor Control, Reversing | ||
Mount Type DIN Rail | ||
Normal State Configuration 1 NO | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Contactor Application Motor Control | ||
Operational Current Ie 65A | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660 | ||
Length 115mm | ||
Width 55mm | ||
Depth 147mm | ||

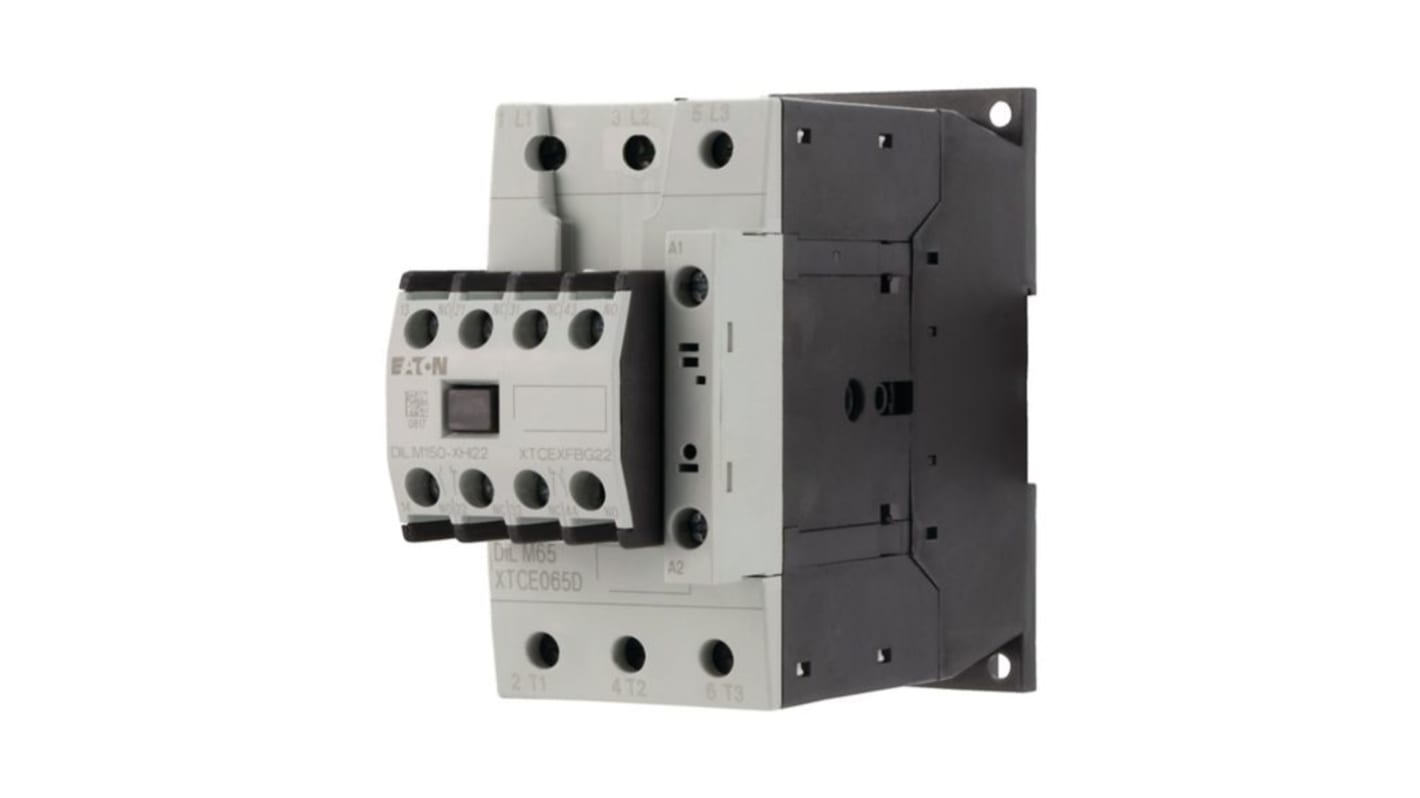

Eaton DILM Series Contactor, 1N/O Configuration, Power Rating 14 kW - 277926 DILM65-22(230V50HZ,240V60HZ)
This contactor from Eaton with high power rating is designed for a wide range of applications in the field of automation, electronics, and electrical engineering. With a versatile configuration it provides efficient operation for various setups.
Features & Benefits
• High operational current ratings for different voltage ranges
• Mirror contact for enhanced safety
• Short-circuit protection with maximum fuse coordination
• Easy screw terminal connection technique for quick installation
Applications
• Contactors for motors
• Complete devices up to 170 A
• Non-inductive or slightly inductive loads
• Motor-rated applications in various industrial setups
Can it handle high power ratings for industrial motors?
Yes, it has high operational current ratings for different voltage ranges.
Will it provide reliable performance for reversing applications?
Yes, it is designed to provide reliable performance for reversing applications.
Is it suitable for setups with various voltage requirements?
Yes, it is suitable for setups with different voltage ranges.
