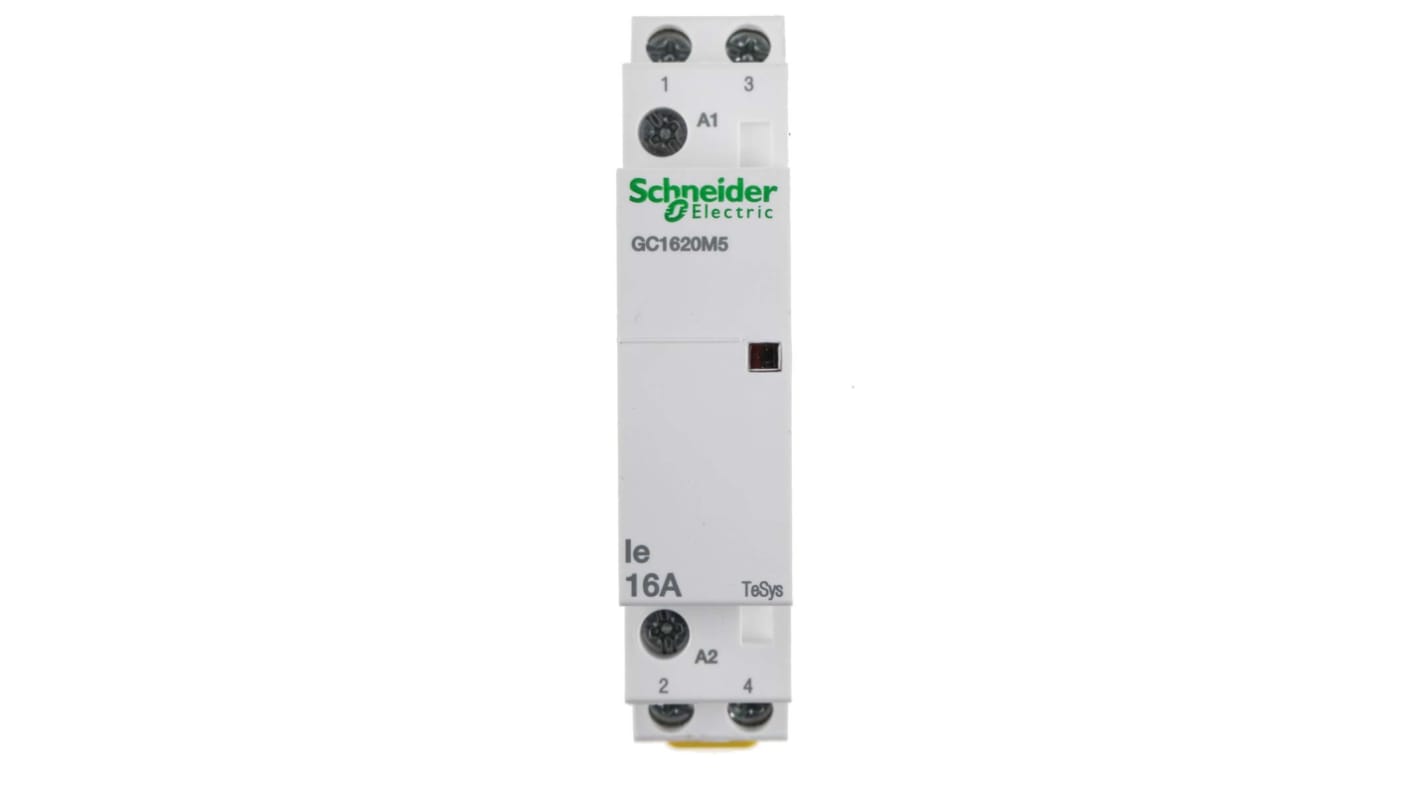

Schneider Electric TeSys GC GC16 Contactor, 230 V ac Coil, 2-Pole, 16 A, 2NO, 250 V ac
- RS Stock No.:
- 243-9781
- Mfr. Part No.:
- GC1620M5
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£45.19
(exc. VAT)
£54.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 243-9781
- Mfr. Part No.:
- GC1620M5
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 2 | |
| Contact Voltage Rating | 250 V ac | |
| Contact Current Rating | 16 A | |
| Range | TeSys GC | |
| Series | GC16 | |
| Normal State Configuration | 2NO | |
| Number Of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Width | 17.5mm | |
| Length | 81mm | |
| Depth | 65mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +50°C | |
| Mounting Style | Clip-On | |
| Pole and Throw Configuration | 2P | |
| Control Voltage | 220 → 240 V | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230 V ac | ||
Number of Poles 2 | ||
Contact Voltage Rating 250 V ac | ||
Contact Current Rating 16 A | ||
Range TeSys GC | ||
Series GC16 | ||
Normal State Configuration 2NO | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Width 17.5mm | ||
Length 81mm | ||
Depth 65mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Mounting Style Clip-On | ||
Pole and Throw Configuration 2P | ||
Control Voltage 220 → 240 V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric GC16 Series Contactor, 250 V AC Contact Voltage, +50 °C Maximum Operating Temperature - GC1620M5
This contactor from Schneider Electric with a rating of 16A and a coil voltage of 230V AC is a versatile component designed for various applications. It ensures reliable performance in heating, motor control, and lighting systems. It offers a cost-effective and efficient solution for your electrical requirements.
Features & Benefits
• Utilisation category AC-7A and AC-7B for enhanced performance
• 2NO pole contact composition for flexibility in electrical connections
• Screw terminal type for easy and secure installation
• Operating temperature range from -5°C to +50°C for reliable operation in different environments
• 2NO pole contact composition for flexibility in electrical connections
• Screw terminal type for easy and secure installation
• Operating temperature range from -5°C to +50°C for reliable operation in different environments
Applications
• Suitable for use in heating systems
• Ideal for motor control applications
• Can be used for lighting circuits
• Ideal for motor control applications
• Can be used for lighting circuits
Can this contactor handle a maximum operating temperature of +50 °C?
Yes, the contactor is designed to operate efficiently within a temperature range of -5°C to +50°C.
Will this contactor work with a coil voltage of 230V AC?
Yes, it is compatible with a coil voltage of 230V AC.
Is this contactor part of the TeSys GC16 Series?
Yes, this contactor belongs to the TeSys GC16 Series.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
