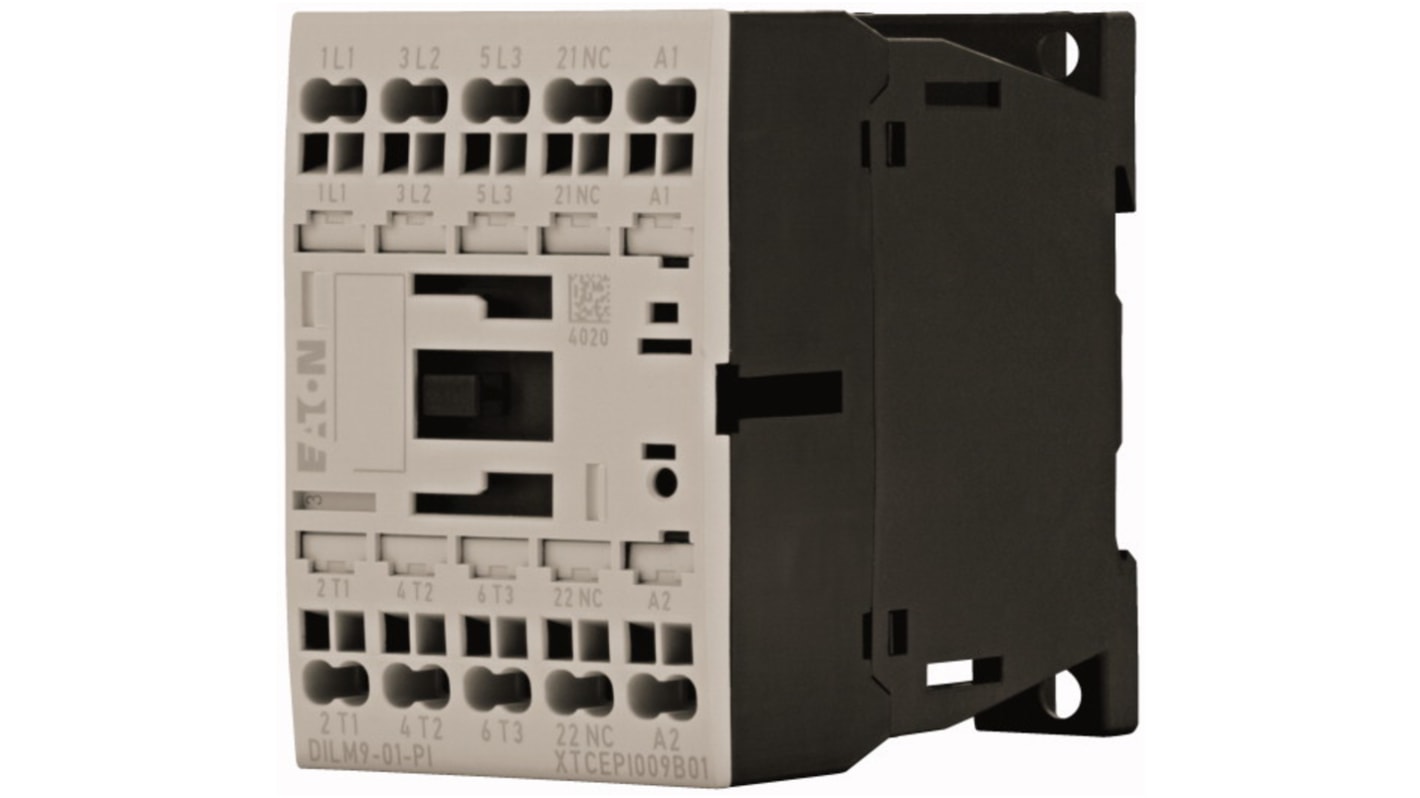

Eaton Contactors Contactor, 220 V ac Coil, 3-Pole, 9 A, 4 kW, 1 NC
- RS Stock No.:
- 240-2909
- Mfr. Part No.:
- 199649 DILM9-01(220V50/60HZ)-PI
- Brand:
- Eaton
Subtotal (1 unit)*
£39.73
(exc. VAT)
£47.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.73 |
*price indicative
- RS Stock No.:
- 240-2909
- Mfr. Part No.:
- 199649 DILM9-01(220V50/60HZ)-PI
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 220 V ac | |
| Number of Poles | 3 | |
| Contact Current Rating | 9 A | |
| Range | Contactors | |
| Power Rating | 4 kW | |
| Normal State Configuration | 1 NC | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 220 V ac | ||
Number of Poles 3 | ||
Contact Current Rating 9 A | ||
Range Contactors | ||
Power Rating 4 kW | ||
Normal State Configuration 1 NC | ||
- COO (Country of Origin):
- RO
199649
The Eaton Contactor is rated for 220 V 60 Hz and operation power of 4 kW. The device is available with Push-in terminals connection. It uses AC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 9000 operations per hour. It has a Spring clamp connection to Main circuit and also offers Finger-safe and back-of-hand proof terminals connection.
It has 3 poles and 1 NC contact
It has a IP20 degree of protection
It offers Finger-safe and back-of-hand proof terminals connection.
It has a IP20 degree of protection
It offers Finger-safe and back-of-hand proof terminals connection.
Note
Eaton formerly known as Moeller
