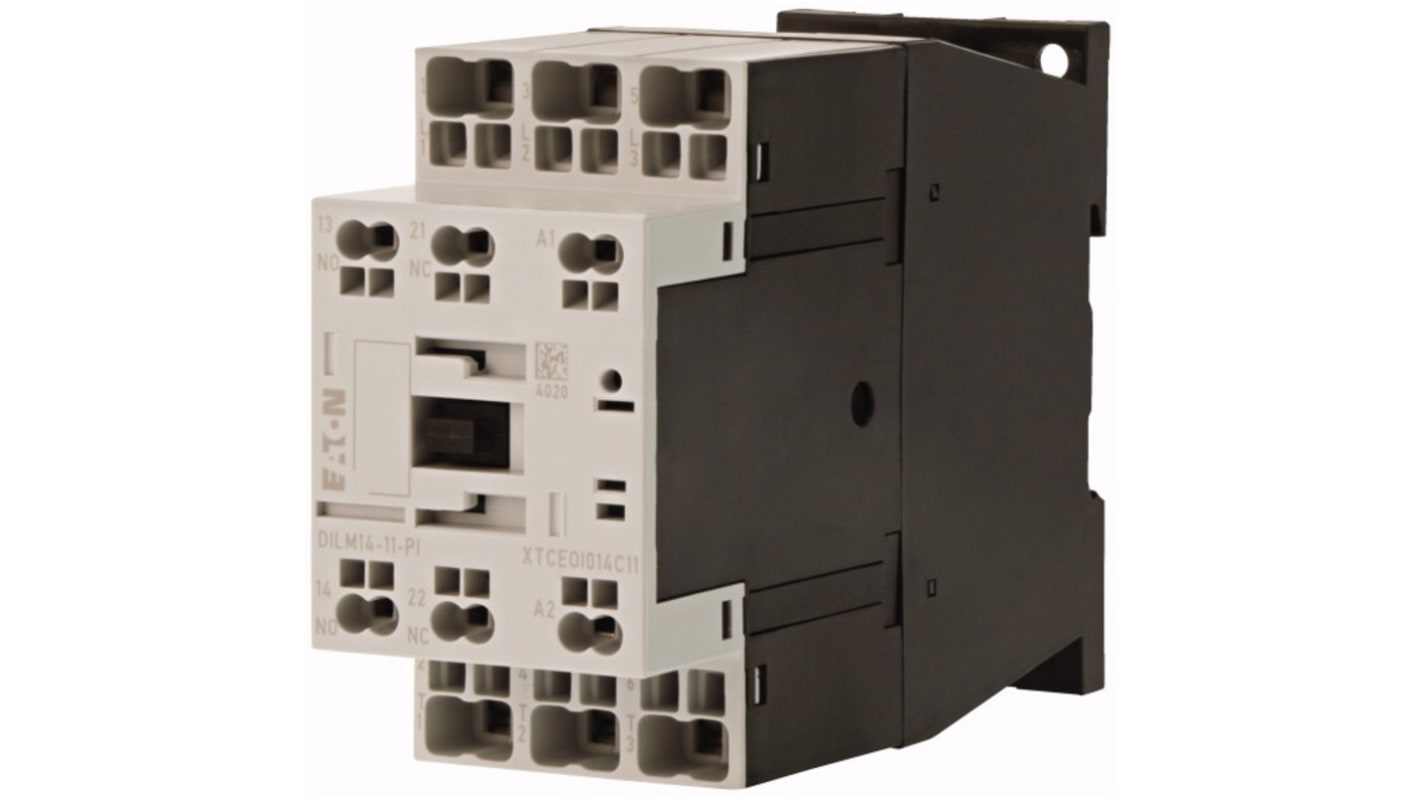

Eaton Contactors Contactor, 24 → 27 V dc Coil, 3-Pole, 14 A, 6.8 kW, 1 NC, 1 NO
- RS Stock No.:
- 240-2825
- Mfr. Part No.:
- 199278 DILM14-11(RDC24)-PI
- Brand:
- Eaton
Subtotal (1 unit)*
£98.66
(exc. VAT)
£118.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.66 |
*price indicative
- RS Stock No.:
- 240-2825
- Mfr. Part No.:
- 199278 DILM14-11(RDC24)-PI
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24 → 27 V dc | |
| Number of Poles | 3 | |
| Contact Current Rating | 14 A | |
| Power Rating | 6.8 kW | |
| Range | Contactors | |
| Normal State Configuration | 1 NC, 1 NO | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24 → 27 V dc | ||
Number of Poles 3 | ||
Contact Current Rating 14 A | ||
Power Rating 6.8 kW | ||
Range Contactors | ||
Normal State Configuration 1 NC, 1 NO | ||
- COO (Country of Origin):
- RO
199278
The Eaton Contactor is rated for 24 VDC to 27 VDC and operation power of 5.5 kW. It has 2 contacts, 1 NC and 1 N/O contact. The device is available with Push-in terminals connection. It uses DC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 5000 operations per hour. It has a Spring clamp connection to the main circuit.
It has 3 Poles and 2 contacts
It has a IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted
It has a IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted
Note
Eaton formerly known as Moeller
