Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	690 V
	Number of Poles	3
	Contact Current Rating	70 A
	Series	AF
	Power Rating	18.5 kW
	Function	Motor Control
	Normal State Configuration	3NO
	Number Of Auxiliary Contacts	4
	Auxiliary Contact Configuration	2NO + 2NC
	Terminal Type	Screw
	Width	55mm
	Length	144mm
	Depth	144mm
	Control Voltage	500 V
	Maximum Operating Temperature	+70°C
	Mounting Style	DIN Rail
	Pole and Throw Configuration	3P
	Minimum Operating Temperature	-40°C

	Select all
	Brand ABB
	Coil Voltage 690 V
	Number of Poles 3
	Contact Current Rating 70 A
	Series AF
	Power Rating 18.5 kW
	Function Motor Control
	Normal State Configuration 3NO
	Number Of Auxiliary Contacts 4
	Auxiliary Contact Configuration 2NO + 2NC
	Terminal Type Screw
	Width 55mm
	Length 144mm
	Depth 144mm
	Control Voltage 500 V
	Maximum Operating Temperature +70°C
	Mounting Style DIN Rail
	Pole and Throw Configuration 3P
	Minimum Operating Temperature -40°C

COO (Country of Origin):: FR

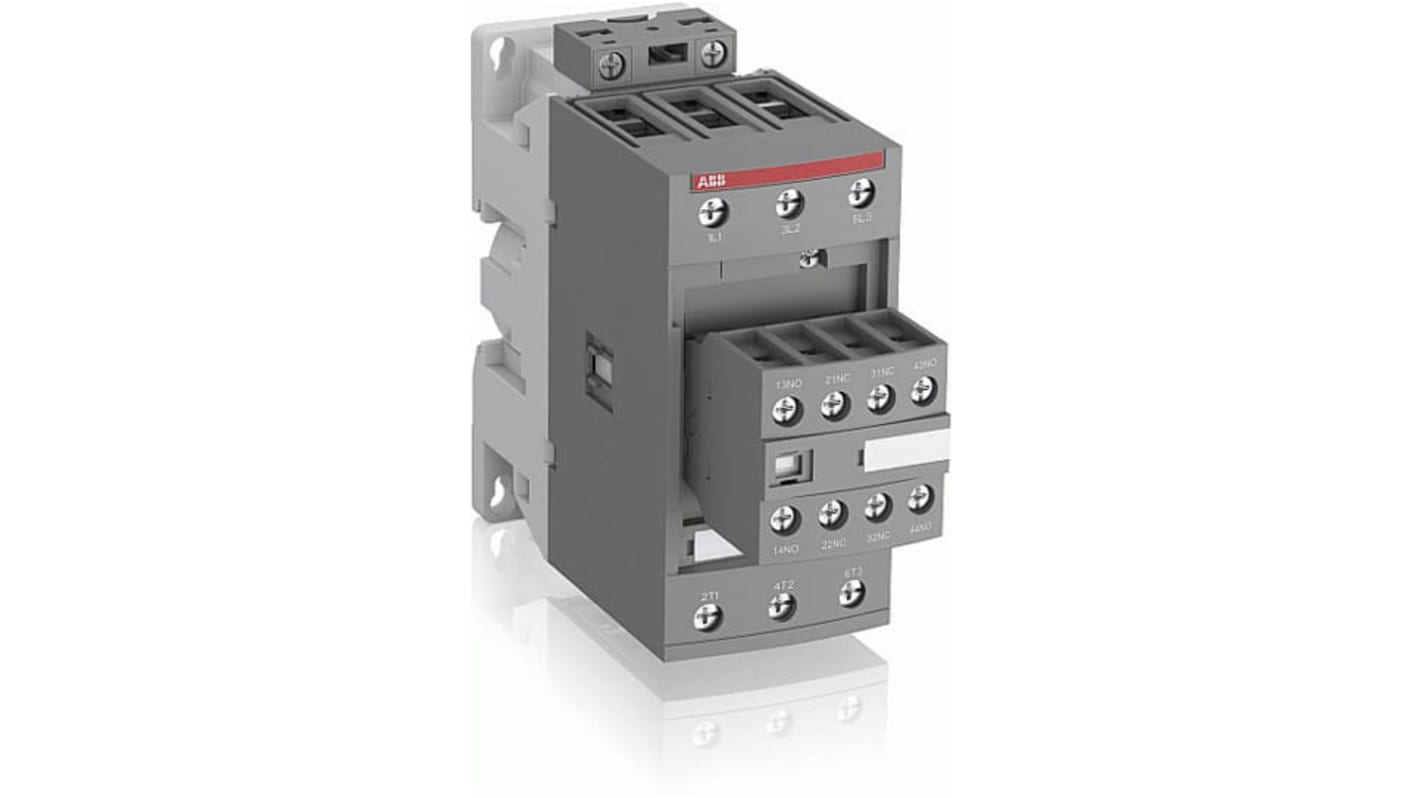

ABB Series AF Contactor, 70A Contact Current Rating, 500V Coil Voltage - 1SBL347001R1422

This contactor is designed for robust motor control applications, featuring a triple pole configuration that supports a coil voltage of 690V. The compact design enables DIN rail mounting, measuring 144mm in length, 55mm in width, and 144mm in depth, making it suitable for diverse installations while ensuring efficient use of space.

Features & Benefits

• Operates at coil voltages ranging from 250 to 500V
• Rated for current up to 70A, facilitating heavy-duty tasks
• Built-in surge protection ensures stable performance
• Auxiliary contacts for enhanced control capabilities
• Optimised for energy efficiency, reducing operational costs
• Wide operational temperature range from -40°C to +70°C

Applications

• Used for controlling motors in industrial machinery
• Suitable for automation projects requiring reliable switching
• Commonly applied in power distribution systems
• Ideal for electrical relay components in various configurations
• Compatible with add-on auxiliary contact blocks for extended functionality

What is the maximum load capacity for this device?

It can handle loads up to 70A, making it suitable for substantial industrial applications.

How does the energy efficiency of this contactor benefit installations?

The design reduces panel energy consumption, especially in environments with large control voltage variations.

What kind of accessories can be integrated with this contactor?

It can be easily extended with additional auxiliary contact blocks and a wide range of accessories for various applications.

How does this device perform in extreme temperatures?

It operates effectively within a temperature range of -40°C to +70°C, ensuring reliability in harsh conditions.

ABB AF Contactor, 690 V Coil, 3-Pole, 70 A, 18.5 kW, 3NO
