Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	220 Va ac, 690 Va ac, V dc, V dc
	Number of Poles	4
	Contact Current Rating	20 A
	Power Rating	5.5 kW
	Series	B
	Function	Control Unit
	Normal State Configuration	4NO
	Number Of Auxiliary Contacts	0
	Terminal Type	Soldering Pins
	Length	47.7mm
	Width	47.5mm
	Depth	47.7mm
	Control Voltage	415 V
	Mounting Style	DIN Rail
	Minimum Operating Temperature	-25°C
	Pole and Throw Configuration	4P
	Maximum Operating Temperature	+55°C

	Select all
	Brand ABB
	Coil Voltage 220 Va ac, 690 Va ac, V dc, V dc
	Number of Poles 4
	Contact Current Rating 20 A
	Power Rating 5.5 kW
	Series B
	Function Control Unit
	Normal State Configuration 4NO
	Number Of Auxiliary Contacts 0
	Terminal Type Soldering Pins
	Length 47.7mm
	Width 47.5mm
	Depth 47.7mm
	Control Voltage 415 V
	Mounting Style DIN Rail
	Minimum Operating Temperature -25°C
	Pole and Throw Configuration 4P
	Maximum Operating Temperature +55°C

COO (Country of Origin):: DE

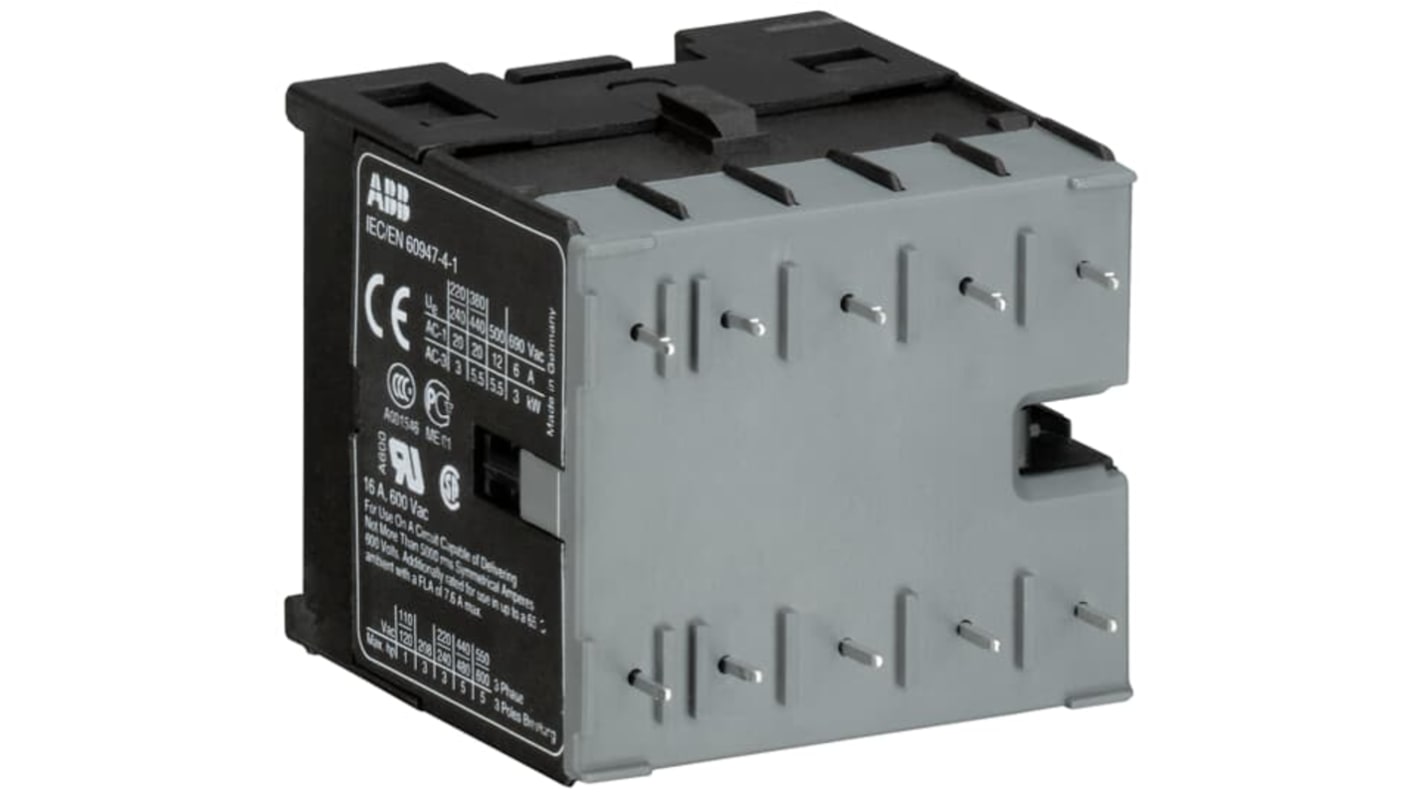

ABB Series B Contactor, 4 Poles, 20A Contact Current Rating - GJL1311209R8005

This contactor is a miniaturised 4 pole control unit designed for effective management of electrical circuits in industrial environments. Measuring 47.5mm in width, it is suitable for DIN rail mounting, making it ideal for installations where space is limited. With a power rating of 5.5kW, it operates efficiently under 220V AC and 690V for AC applications.

Features & Benefits

• Compact design maximises space in electrical panels
• Silent coil operation reduces noise in residential areas
• Designed for high current switching up to 20A
• Compatible with three-phase loads for versatility
• Integrated rail mounting simplifies installation
• Durable construction capable of operating in extreme temperatures

Applications

• Utilised for controlling single or three-phase loads
• Ideal in residential and commercial building projects
• Suitable for industrial automation and control systems
• Employed in requiring reliable circuit management
• Used in settings seeking minimal noise during operation

Can this device handle high operational currents?

Yes, it supports a rated operational current of up to 20A, making it suitable for high current applications.

What are the temperature limits for safe operation?

It operates within a temperature range from -25°C to +55°C, ensuring functionality in various environmental conditions.

How does it contribute to system reliability?

The silent coil operation and robust design ensure dependable performance, reducing the risk of circuit interruptions in critical applications.

Is installation straightforward for this contactor?

It is designed for easy DIN rail mounting, facilitating quick and hassle-free installation in control panels.

What features make it suitable for automation applications?

Its compact size, high current ratings, and compatibility with AC and DC circuits make it a versatile choice for automation systems.

ABB B Contactor, 220 Va ac, 690 Va ac, V dc, V dc Coil, 4-Pole, 20 A, 5.5 kW, 4NO
