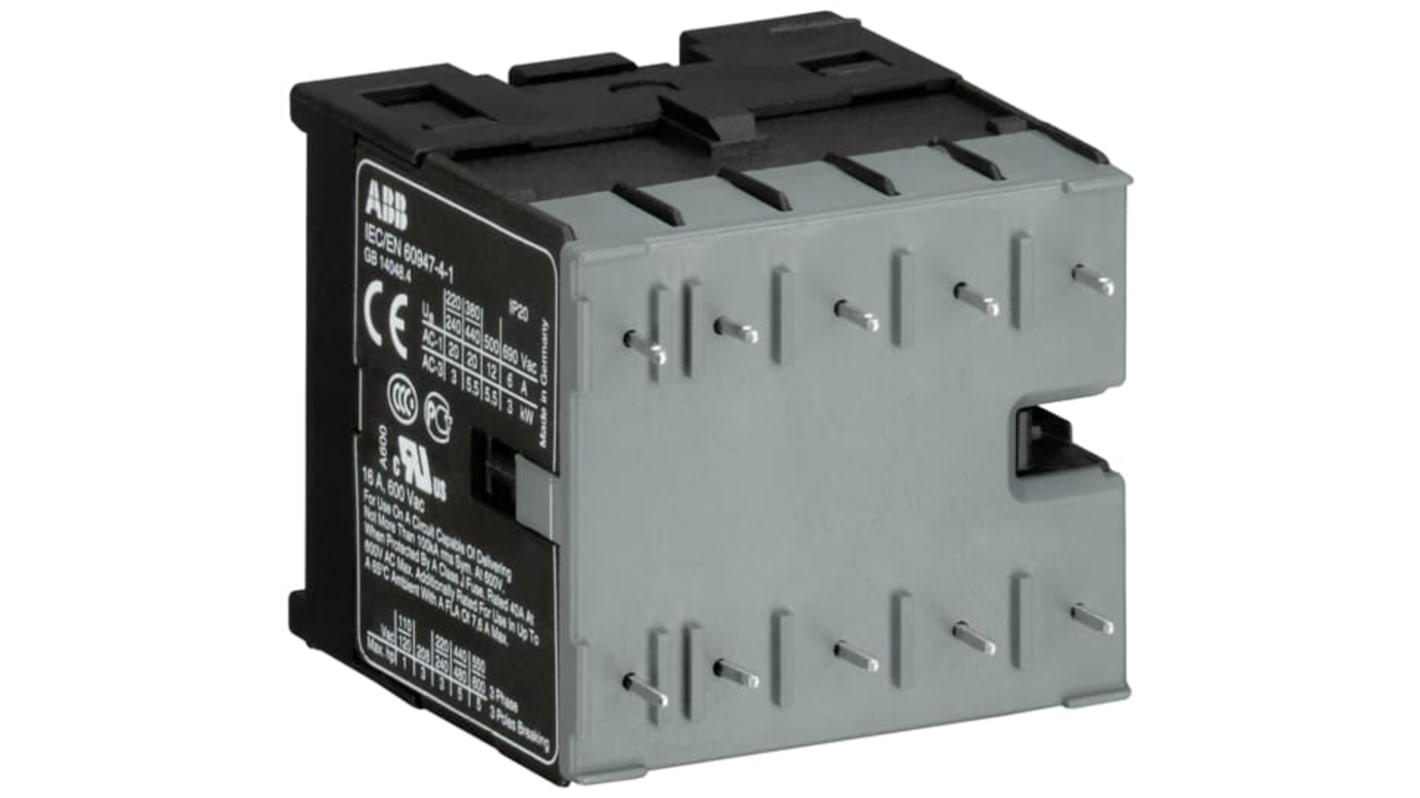

ABB B Contactor, 220 Va ac, 690 Va ac, V dc, V dc Coil, 3-Pole, 20 A, 4 kW, 3NO
- RS Stock No.:
- 237-1589
- Mfr. Part No.:
- GJL1213009R0104
- Brand:
- ABB
Subtotal (1 unit)*
£27.59
(exc. VAT)
£33.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £27.59 |
*price indicative
- RS Stock No.:
- 237-1589
- Mfr. Part No.:
- GJL1213009R0104
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Coil Voltage | 220 Va ac, 690 Va ac, V dc, V dc | |
Number of Poles | 3 | |
Contact Current Rating | 20 A | |
Series | B | |
Power Rating | 4 kW | |
Function | Control Unit | |
Normal State Configuration | 3NO | |
Auxiliary Contact Configuration | 1NO | |
Number Of Auxiliary Contacts | 1 | |
Terminal Type | Soldering Pins | |
Width | 47.5mm | |
Length | 47.7mm | |
Depth | 47.7mm | |
Pole and Throw Configuration | 3P | |
Maximum Operating Temperature | +55°C | |
Mounting Style | DIN Rail | |
Minimum Operating Temperature | -25°C | |
Control Voltage | 125 V | |
Select all | ||
---|---|---|
Brand ABB | ||
Coil Voltage 220 Va ac, 690 Va ac, V dc, V dc | ||
Number of Poles 3 | ||
Contact Current Rating 20 A | ||
Series B | ||
Power Rating 4 kW | ||
Function Control Unit | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Soldering Pins | ||
Width 47.5mm | ||
Length 47.7mm | ||
Depth 47.7mm | ||
Pole and Throw Configuration 3P | ||
Maximum Operating Temperature +55°C | ||
Mounting Style DIN Rail | ||
Minimum Operating Temperature -25°C | ||
Control Voltage 125 V | ||
- COO (Country of Origin):
- DE
ABB Series B Contactor, 20A Contact Current Rating, 220V Coil Voltage - GJL1213009R0104
This contactor is a versatile control unit designed for efficient load management. With a compact format, it supports 3 poles and operates at a current rating of 20A. Its dimensions are 47.7mm x 47.5mm x 47.7mm, making it ideal for installations where space is limited. The device provides reliable control in both residential and industrial settings.
Features & Benefits
• Operates at a coil voltage of 220V, 690V ac and V dc for flexible applications
• Designed with 1 auxiliary contact, enhancing control options
• Supports a power rating of up to 4kW for efficient load handling
• Compatible with DIN rail mounting for straightforward installation
• Functions reliably within a temperature range of -25°C to +55°C
• Equipped with a noiseless coil for quiet operation in sensitive environments
• Designed with 1 auxiliary contact, enhancing control options
• Supports a power rating of up to 4kW for efficient load handling
• Compatible with DIN rail mounting for straightforward installation
• Functions reliably within a temperature range of -25°C to +55°C
• Equipped with a noiseless coil for quiet operation in sensitive environments
Applications
• Utilised for controlling single or three-phase loads in buildings
• Suitable for switching control signals in automation systems
• Employed in complex machinery for streamlined operations
• Ideal for electrical panel installations requiring compact solutions
• Suitable for switching control signals in automation systems
• Employed in complex machinery for streamlined operations
• Ideal for electrical panel installations requiring compact solutions
What are the operating voltage limits for this device?
This device operates at a coil voltage between 220V and 690V ac and V DC, allowing it to be integrated into diverse electrical systems.
How does the auxiliary contact enhance functionality?
The 1 auxiliary contact allows for additional control functions, enabling sequential or complementary operations with primary circuits.
What are the installation requirements for optimal performance?
For optimal performance, it should be mounted on DIN rail in environments with ambient temperatures ranging from -25°C to +55°C.
What is the maximum current rating for three-phase applications?
For three-phase applications, the contactor can handle a maximum current rating of 12A at specified voltages, making it suitable for various loads.
How long can this contactor sustain operation under heavy load?
The device is rated for mechanical durability of 10,000,000 cycles, ensuring longevity in demanding applications.
