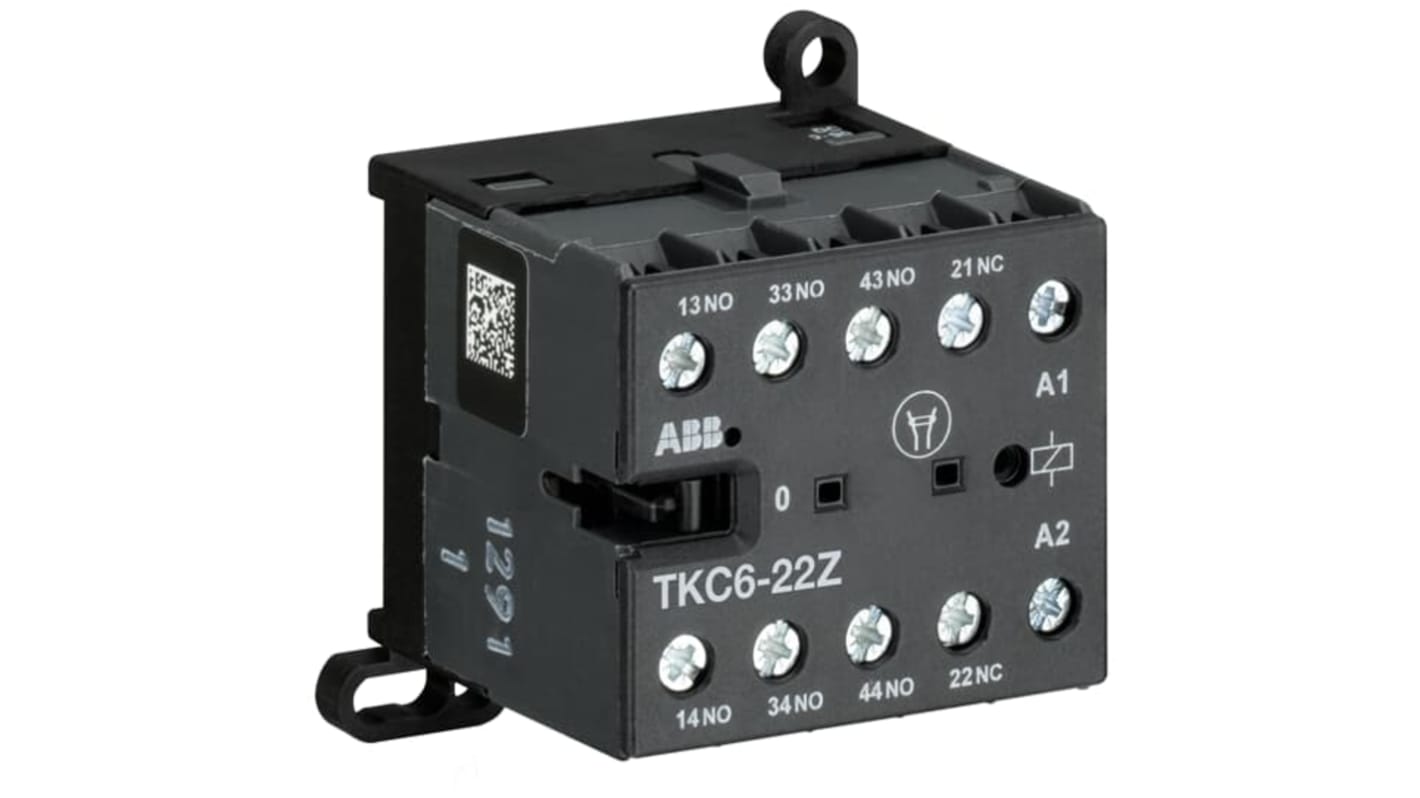

ABB TKC6-22Z Contactor Relay, 32V dc Coil, 4-Pole, 4 A, 5 W 690V, 3 NO/1 NC, 690V
- RS Stock No.:
- 237-1552
- Mfr. Part No.:
- GJH1213061R5221
- Brand:
- ABB
Subtotal (1 unit)*
£85.86
(exc. VAT)
£103.03
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.86 |
*price indicative
- RS Stock No.:
- 237-1552
- Mfr. Part No.:
- GJH1213061R5221
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 32V dc | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 4A | |
| Power Rating | 5W | |
| Series | TKC6-22Z | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 4 pole | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 690V | |
| Minimum Operating Temperature | -30°C | |
| Operational Current Ie | 4A | |
| Maximum Operating Temperature | 70°C | |
| Width | 53mm | |
| Standards/Approvals | UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, CE | |
| Length | 58mm | |
| Depth | 47mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 32V dc | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 4A | ||
Power Rating 5W | ||
Series TKC6-22Z | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 4 pole | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 690V | ||
Minimum Operating Temperature -30°C | ||
Operational Current Ie 4A | ||
Maximum Operating Temperature 70°C | ||
Width 53mm | ||
Standards/Approvals UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, CE | ||
Length 58mm | ||
Depth 47mm | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
ABB GJH Series Contactor Relay, 4 Poles, 4A Contact Current Rating - GJH1213061R5221
This contactor relay is a compact and efficient device designed for various applications in automation and control systems. The mini contactor relay has dimensions of 52.5mm in width and 46.5mm in depth, and is equipped with four poles, making it specifically suitable for tasks where space is restricted. With a control voltage of 32 V DC, it ensures reliable performance in a range of environments.
Features & Benefits
• Compact design aids in space-saving installations
• 4-pole configuration effectively manages diverse switching tasks
• Control coil operates noiselessly, improving user comfort
• Robust contact current rating of 4A accommodates various loads
• Versatile mounting allows for easy installation on DIN rail
• Dual auxiliary contact configuration enhances operational flexibility
Applications
• Used in residential buildings for control signal switching
• Ideal for commercial requiring reliable automation
• Commonly employed in industrial settings for machine control
• Suitable for use in environments with strict space limitations
How does the noise level of the coil impact its usage in sensitive environments?
The noiseless and hum-free operation of the coil makes it ideal for sensitive environments, reducing disturbances in places requiring quiet operation, such as offices or laboratories.
What types of circuits can benefit from the auxiliary contacts provided?
The additional auxiliary contacts allow for seamless integration into control circuits, enabling the management of multiple devices simultaneously without the need for additional relays.
Can it operate under extreme environmental conditions?
Yes, it functions efficiently within a temperature range of -30°C to +70°C, making it suitable for varied industrial environments, including those with harsh conditions.
What type of terminal connections does this relay support?
This relay features screw terminals, providing secure and reliable connections for various types of wiring configurations, accommodating both flexible and rigid wire types.
What is the significance of the mechanical durability of this product?
With a mechanical durability rating of up to 10,000,000 cycles, it is designed to withstand extensive usage, significantly reducing maintenance needs in long-term applications.
