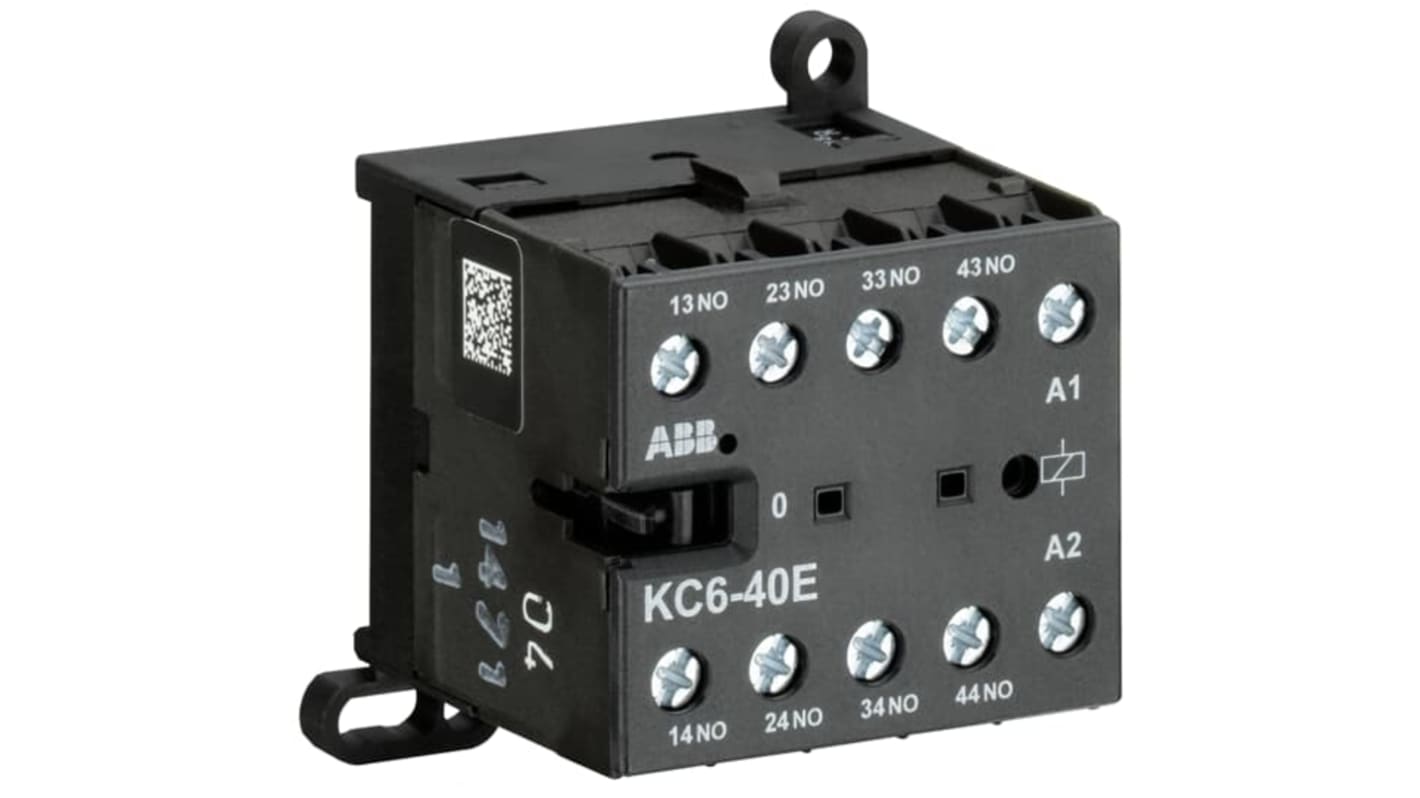

ABB KC6-40E Contactor Relay, 12V dc Coil, 4-Pole, 4 A 690V, 4 NO, 600V
- RS Stock No.:
- 237-1545
- Mfr. Part No.:
- GJH1213001R0407 KC6-40E 12V-DC
- Brand:
- ABB
Subtotal (1 unit)*
£27.59
(exc. VAT)
£33.11
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.59 |
*price indicative
- RS Stock No.:
- 237-1545
- Mfr. Part No.:
- GJH1213001R0407 KC6-40E 12V-DC
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 12V dc | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Voltage | 600V | |
| Contact Current | 4A | |
| Series | KC6-40E | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Auxiliary Contact Configuration | 4 pole | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 690V | |
| Operational Current Ie | 4A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Length | 58mm | |
| Depth | 47mm | |
| Width | 53mm | |
| Standards/Approvals | UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, UL 60947-1, cULus, UL 60947-4-1, CQC, CCC, UL, CB | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 12V dc | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Voltage 600V | ||
Contact Current 4A | ||
Series KC6-40E | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Auxiliary Contact Configuration 4 pole | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 690V | ||
Operational Current Ie 4A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Length 58mm | ||
Depth 47mm | ||
Width 53mm | ||
Standards/Approvals UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, UL 60947-1, cULus, UL 60947-4-1, CQC, CCC, UL, CB | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
ABB GJH Series Contactor Relay, 12V DC Control Voltage, 4NO Contact Configuration - GJH1213001R0407
This contactor relay is an efficient 4 pole device designed for switching control signals. The compact dimensions of 52.5mm width and 46.5mm height make it suitable for installations where space is limited. It operates on a control voltage of 12V DC and is engineered to perform effectively in varied environments, with a temperature range of -25°C to +55°C.
Features & Benefits
• High-performance relay with a reliable noiseless coil
• Supports screw terminals for secure connections
• Designed for DIN rail mounting for ease of installation
• 4NO configuration providing versatility in wiring setups
• Auxiliary contacts enhance functionality for control circuits
• Durable design capable of withstanding vibrations and shocks
Applications
• Used for switching control signals in residential buildings
• Utilised in commercial installations requiring compact solutions
• Applicable in industrial environments for operational reliability
• Ideal for projects demanding high-temperature performance
What is the maximum operational voltage for the contactor relay?
The relay can operate effectively with auxiliary circuits at a maximum voltage of 600V AC/DC, ensuring adaptability across various setups.
How many cycles can the contactor relay manage per hour?
It is rated for 600 cycles per hour for AC-15 applications and maintained durability for extensive mechanical use, supporting up to 10 million cycles.
What types of mounting are supported?
The device supports mounting on DIN rails, ensuring a versatile installation process across various panel setups, which can be oriented in multiple positions.
