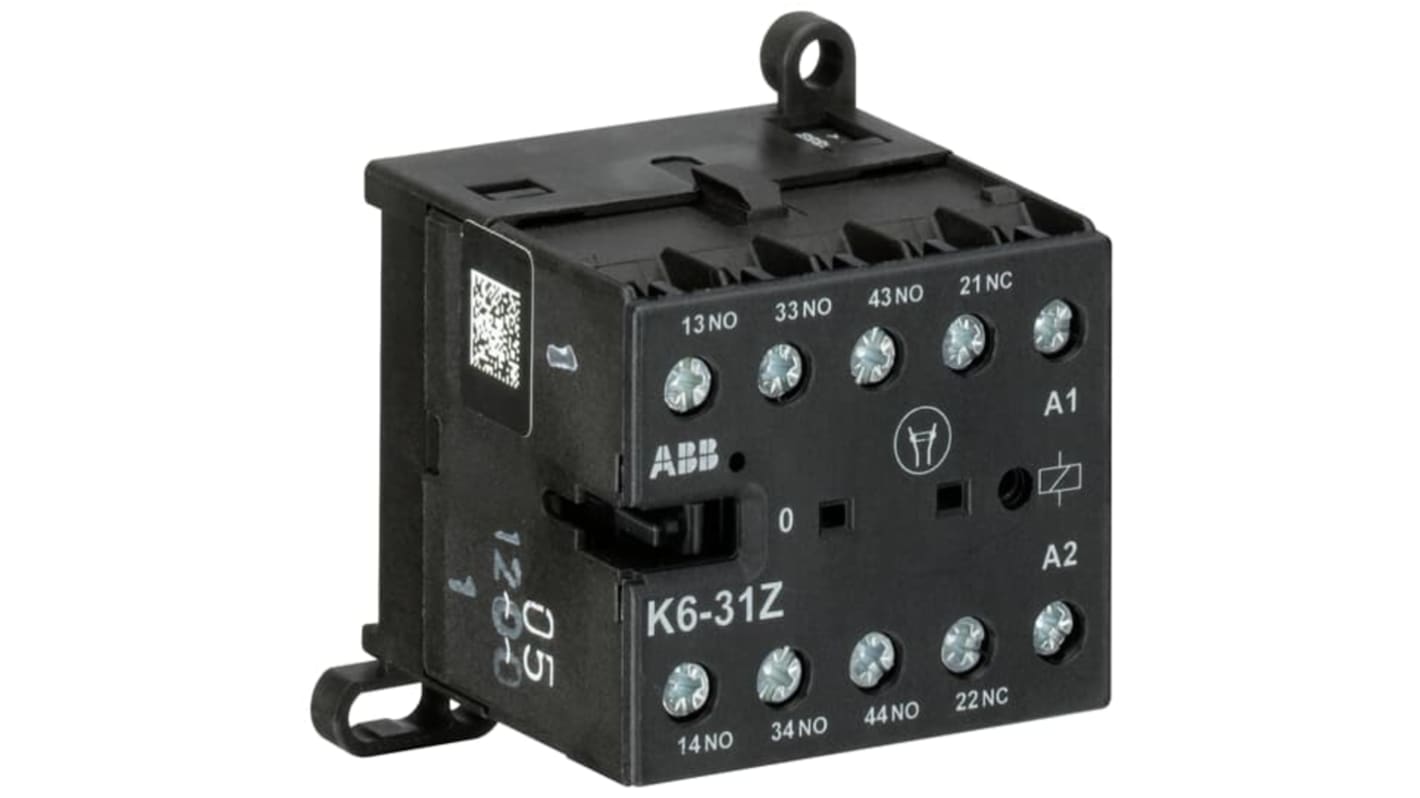

ABB K6-31Z Contactor Relay, 240V dc Coil, 4-Pole, 4 A 690V, 3 NO/1 NC
- RS Stock No.:
- 237-1537
- Mfr. Part No.:
- GJH1211001R8310 K6-31Z 230V 40/450HZ
- Brand:
- ABB
Subtotal (1 unit)*
£27.59
(exc. VAT)
£33.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.59 |
*price indicative
- RS Stock No.:
- 237-1537
- Mfr. Part No.:
- GJH1211001R8310 K6-31Z 230V 40/450HZ
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 240V dc | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Current | 4A | |
| Series | K6-31Z | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 4 pole | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 690V | |
| Operational Current Ie | 4A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 53mm | |
| Standards/Approvals | UL 60947-4-1, UL 60947-1, UL, UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, CCC | |
| Depth | 53mm | |
| Length | 53mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 240V dc | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Current 4A | ||
Series K6-31Z | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 4 pole | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 690V | ||
Operational Current Ie 4A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Width 53mm | ||
Standards/Approvals UL 60947-4-1, UL 60947-1, UL, UKCA, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, IEC/EN 60947-1, EAC, CCC | ||
Depth 53mm | ||
Length 53mm | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
ABB GJH Series Contactor Relay, 4 Pole Configuration, 4A Contact Rating - GJH1211001R8310
This contactor relay is a compact device designed for efficient control applications, featuring a 4 pole configuration. Ideal for installations with limited space, it operates within a control voltage range of 220 to 240 V AC. The relay includes several screw terminals for easy connectivity.
Features & Benefits
• Reliable performance with a contact current rating of 4A
• Versatile 1NC/3NO contact configuration for various applications
• Wide operating temperature range from -25°C to +55°C
• Easily mounted on DIN rails or via screws for flexibility
• Silent coil operation minimises noise during function
• High mechanical durability ensures long-lasting use
Applications
• Used in automation systems for control signal switching
• Ideal for residential and commercial building
• Employed in industrial relay systems for efficient operations
• Suitable for various electrical circuits up to 400V (AC-15)
What is the significance of the contact configuration in this device?
The 1NC/3NO contact configuration allows for effective switching in applications requiring both normally closed and normally open contacts, enhancing circuit flexibility.
What are the installation requirements for this contactor?
It can be conveniently mounted on standard DIN rails or directly using screws, making it adaptable to different setups and ensuring ease of installation.
How does the operating temperature range affect performance?
The operational range of -25°C to +55°C ensures reliability in both cold and hot environments, making it suitable for diverse industrial applications without performance degradation.
What are the anticipated benefits of the silent coil feature?
The silent coil operation significantly reduces noise, making it ideal for environments where minimal disruption is preferred, such as office buildings and residential areas.
What electrical specifications should be considered for compatibility?
It operates efficiently at a control voltage of 220 to 240 V AC, ensuring compatibility with standard electrical systems in various industrial and commercial settings.
