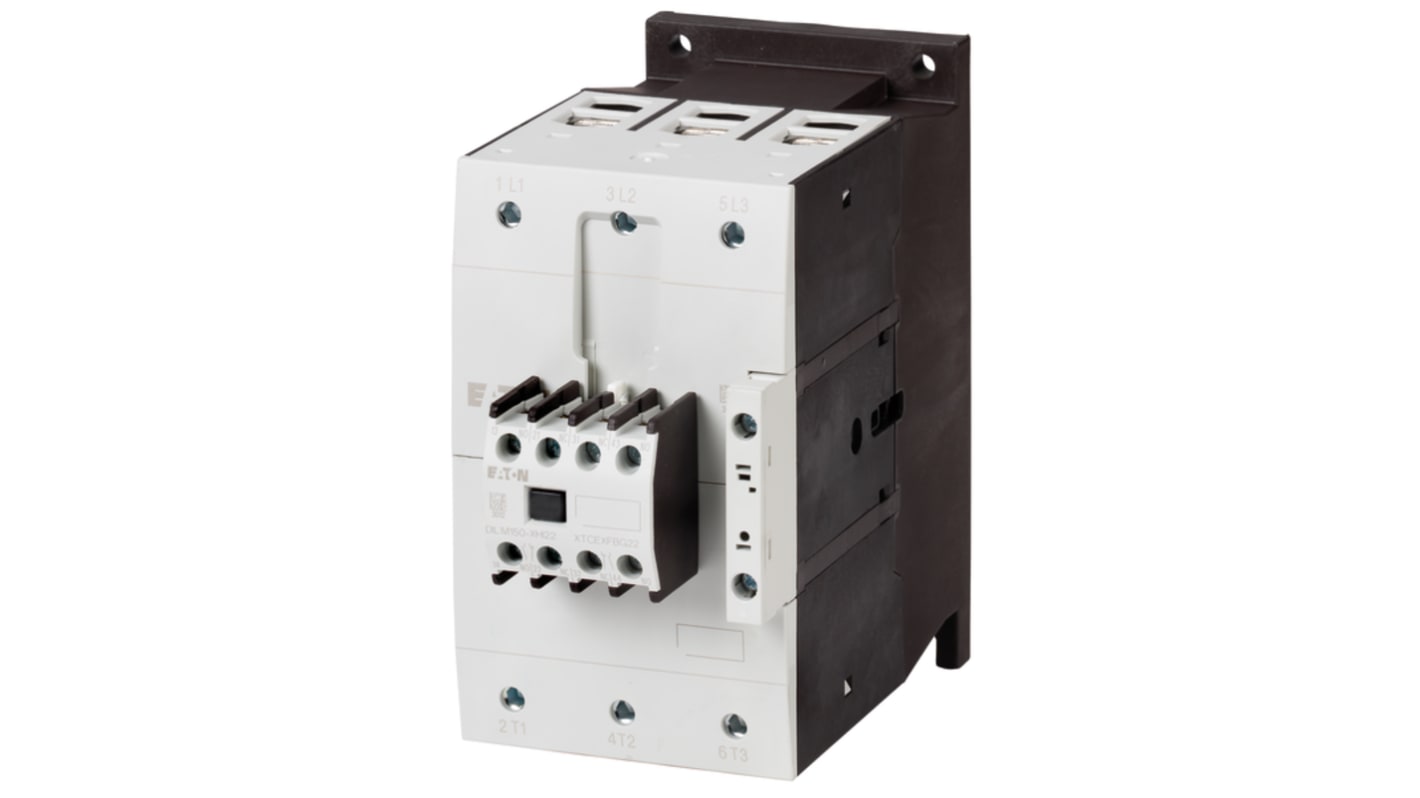

Eaton DILM95-22 Contactor, 400V Coil, 3-Pole, 95 A, 45 kW, 2 NO/2 NC, 400V
- RS Stock No.:
- 229-9479
- Mfr. Part No.:
- 239527 DILM95-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£481.73
(exc. VAT)
£578.08
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £481.73 |
*price indicative
- RS Stock No.:
- 229-9479
- Mfr. Part No.:
- 239527 DILM95-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 400V | |
| Number of Poles | 3 | |
| Contact Voltage | 400V | |
| Contact Current | 95A | |
| Series | DILM95-22 | |
| Power Rating | 45kW | |
| Function | AC Switching | |
| Normal State Configuration | 2 NO/2 NC | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Contactor Application | Motor | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 111mm | |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA | |
| Length | 170mm | |
| Depth | 175mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Contactor | ||
Coil Voltage 400V | ||
Number of Poles 3 | ||
Contact Voltage 400V | ||
Contact Current 95A | ||
Series DILM95-22 | ||
Power Rating 45kW | ||
Function AC Switching | ||
Normal State Configuration 2 NO/2 NC | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Contactor Application Motor | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Width 111mm | ||
Standards/Approvals VDE 0660, UL, IEC/EN 60947, CSA | ||
Length 170mm | ||
Depth 175mm | ||
Pole and Throw Configuration 3P | ||
The Eaton contactor mainly used for AC operations. It has 45 kW power rating.
Suitable for motors with efficiency class IE3
III overvoltage category
Pollution degree 3
Note
Eaton formerly known as Moeller
