Eaton DILMC65(RDC24) Contactor, 380V, 400 V Coil, 3-Pole, 65 A, 30 kW 27V, 400V
- RS Stock No.:
- 221-3492
- Distrelec Article No.:
- 301-29-574
- Mfr. Part No.:
- 278039 DILMC65(RDC24)
- Brand:
- Eaton
Subtotal (1 unit)*
£427.02
(exc. VAT)
£512.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £427.02 |
*price indicative
- RS Stock No.:
- 221-3492
- Distrelec Article No.:
- 301-29-574
- Mfr. Part No.:
- 278039 DILMC65(RDC24)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 380, 400V | |
| Number of Poles | 3 | |
| Contact Voltage | 400V | |
| Contact Current | 65A | |
| Series | DILMC65(RDC24) | |
| Power Rating | 30kW | |
| Function | Motor Control | |
| Terminal Type | Screw | |
| Operational Current Ie | 65A | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 27V | |
| Contactor Application | Motor | |
| Maximum Operating Temperature | 60°C | |
| Width | 85mm | |
| Depth | 147mm | |
| Length | 115mm | |
| Standards/Approvals | CSA, IEC/EN 60947, VDE 0660, UL | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Contactor | ||
Coil Voltage 380, 400V | ||
Number of Poles 3 | ||
Contact Voltage 400V | ||
Contact Current 65A | ||
Series DILMC65(RDC24) | ||
Power Rating 30kW | ||
Function Motor Control | ||
Terminal Type Screw | ||
Operational Current Ie 65A | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 27V | ||
Contactor Application Motor | ||
Maximum Operating Temperature 60°C | ||
Width 85mm | ||
Depth 147mm | ||
Length 115mm | ||
Standards/Approvals CSA, IEC/EN 60947, VDE 0660, UL | ||
Pole and Throw Configuration 4 | ||

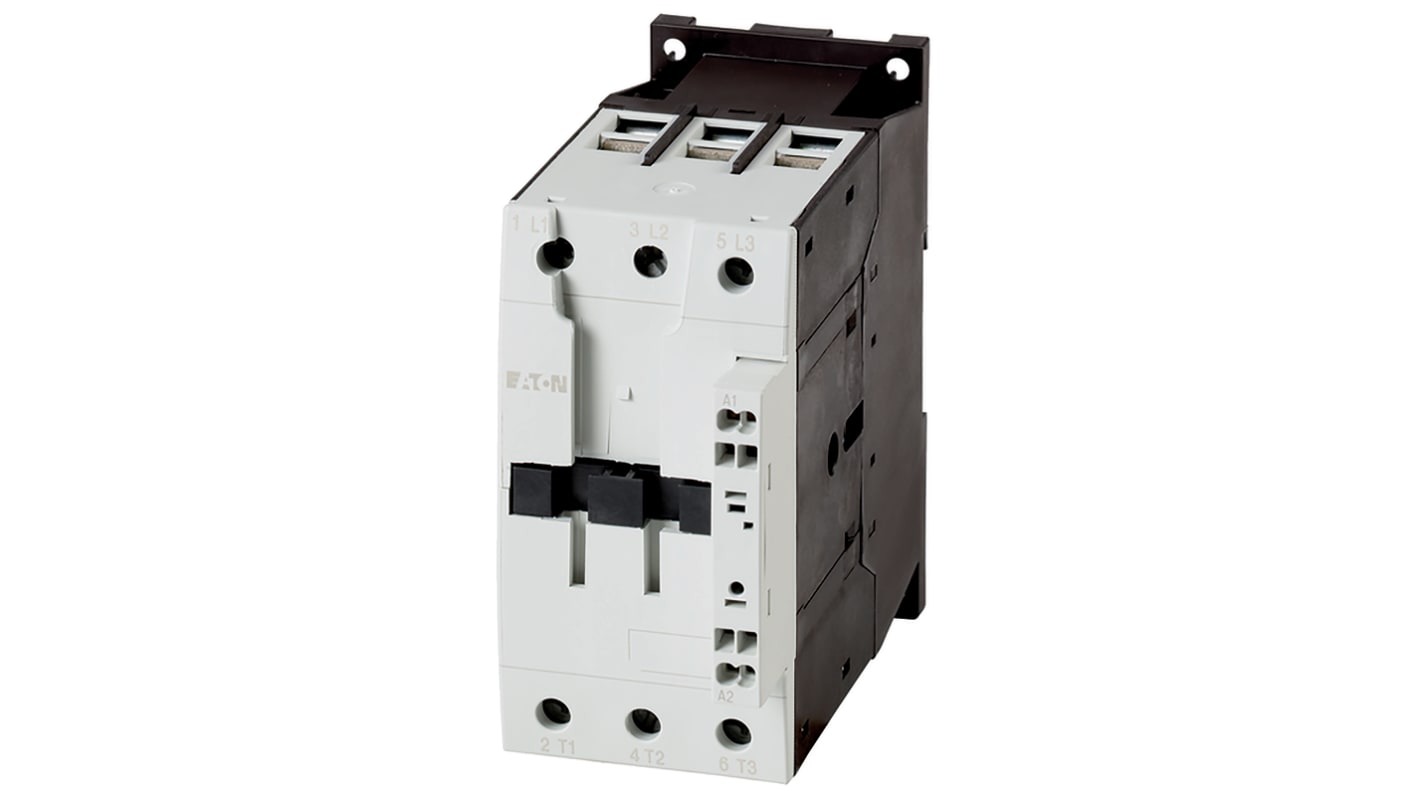

Eaton Contactor, 3 Poles, Spring-Loaded Terminals - DILM Series - 278039 DILMC65(RDC24)
Control your switching functions with this 3-pole contactor from Eaton. A coil voltage between 380 and 400V makes it suitable for use in medium-duty applications. The spring-loaded terminals ensure a secure electrical connection for reliable switching. Thanks to an operating frequency of 5000 mechanical operations per hour, you can rest assured you'll get efficient performance in heavy-duty environments. The unit is protected against short circuits to reduce the risk of electrical damage to your equipment. An integrated suppressor circuit minimises wear from high voltage spikes to prolong the contactor's service life. You can use contactors like this with motors, lighting systems and capacitors.
Features & Benefits
• Touch-proof housing for enhanced electrical safety
• Compact dimensions of 115 (L) x 77 (W) x 147mm (D) for easy installation in tight spaces
• Wide operating temperature range between -25°C and +60°C for use in harsh conditions
• Rated impulse withstand voltage of 8000V AC to handle large surges
How long will this contactor last?
This contactor has a robust mechanical lifespan of 10 million operations, so you can be sure of long-term performance.
Note
Eaton formerly known as Moeller
