Schneider Electric Acti9 iCT Contactor, 24 V Coil, 4-Pole, 25 A, 4NC
- RS Stock No.:
- 220-1194
- Mfr. Part No.:
- A9C20137
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£131.01
(exc. VAT)
£157.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £131.01 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1194
- Mfr. Part No.:
- A9C20137
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24 V | |
| Number of Poles | 4 | |
| Contact Current Rating | 25 A | |
| Range | Acti9 iCT | |
| Normal State Configuration | 4NC | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24 V | ||
Number of Poles 4 | ||
Contact Current Rating 25 A | ||
Range Acti9 iCT | ||
Normal State Configuration 4NC | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
- COO (Country of Origin):
- FR

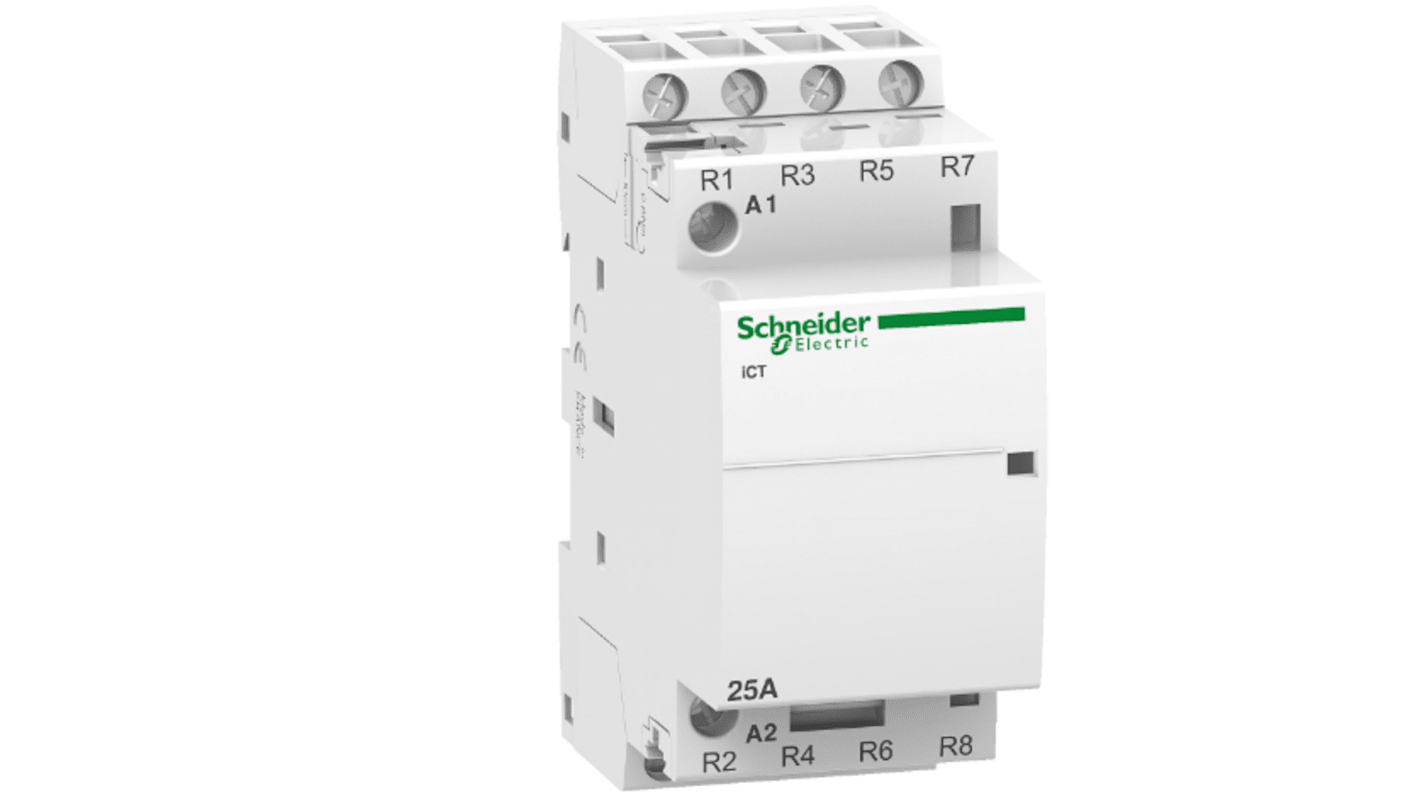

The Schneider Electric Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally close contact. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 24VAC.
The maximum switching operations is 100 per day
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
Pollution degree is 2
It is DIN rail mountable
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
Pollution degree is 2
It is DIN rail mountable
