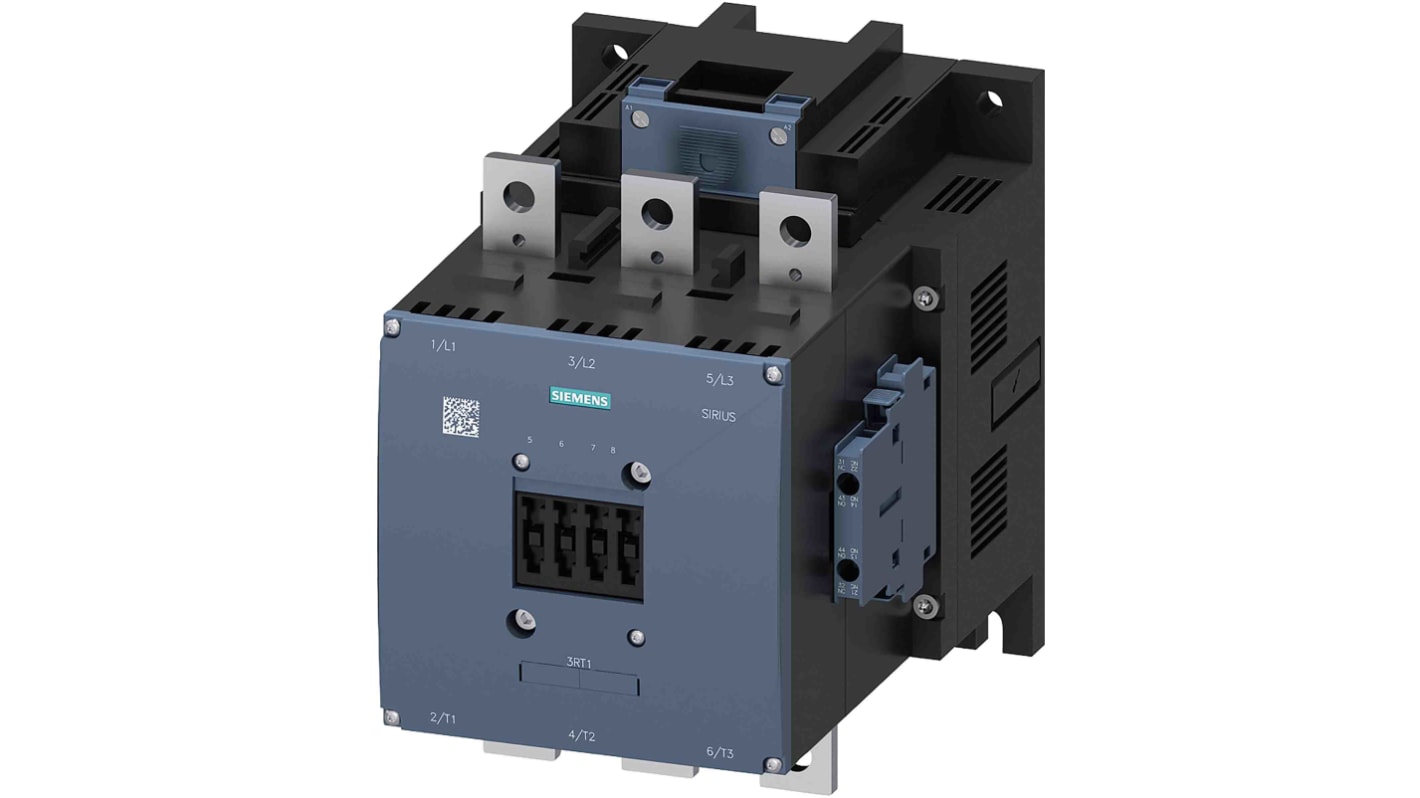

Siemens 3RT1 Contactor, 220V ac/dc, 240 V ac/dc Coil, 3-Pole, 690 A 240V ac/dc, 2 NO/2 NC, 690V
- RS Stock No.:
- 216-2851
- Mfr. Part No.:
- 3RT1476-6AP36
- Brand:
- Siemens
Subtotal (1 unit)*
£1,914.57
(exc. VAT)
£2,297.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,914.57 |
*price indicative
- RS Stock No.:
- 216-2851
- Mfr. Part No.:
- 3RT1476-6AP36
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 220, 240V ac/dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 690A | |
| Series | 3RT1 | |
| Function | Reversing | |
| Mount Type | Screw | |
| Normal State Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Terminal Type | Screw Clamp | |
| Operational Current Ie | 170A | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 240V ac/dc | |
| Contactor Application | Safety | |
| Maximum Operating Temperature | 60°C | |
| Depth | 225mm | |
| Length | 214mm | |
| Width | 160mm | |
| Standards/Approvals | UL, EAC, CSA, CCC | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 220, 240V ac/dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 690A | ||
Series 3RT1 | ||
Function Reversing | ||
Mount Type Screw | ||
Normal State Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Terminal Type Screw Clamp | ||
Operational Current Ie 170A | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 240V ac/dc | ||
Contactor Application Safety | ||
Maximum Operating Temperature 60°C | ||
Depth 225mm | ||
Length 214mm | ||
Width 160mm | ||
Standards/Approvals UL, EAC, CSA, CCC | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- DE
The Siemens SIRIUS 3RT1 series is a power contactor for switching motors. It has a size of S12. It has current rating of 690 A. The design of surge suppressor is with varistor. The type of electrical connection for main current circuit is through bus bar connection and for auxiliary and control current circuit is through screw type terminal. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application direct or via PLC input. The contactor are climate-resistant and approved for worldwide use e.g. IEC and UL/CSA.
Mounting type is screw fixing
Ambient operating temperature is -25 to +60 °C
