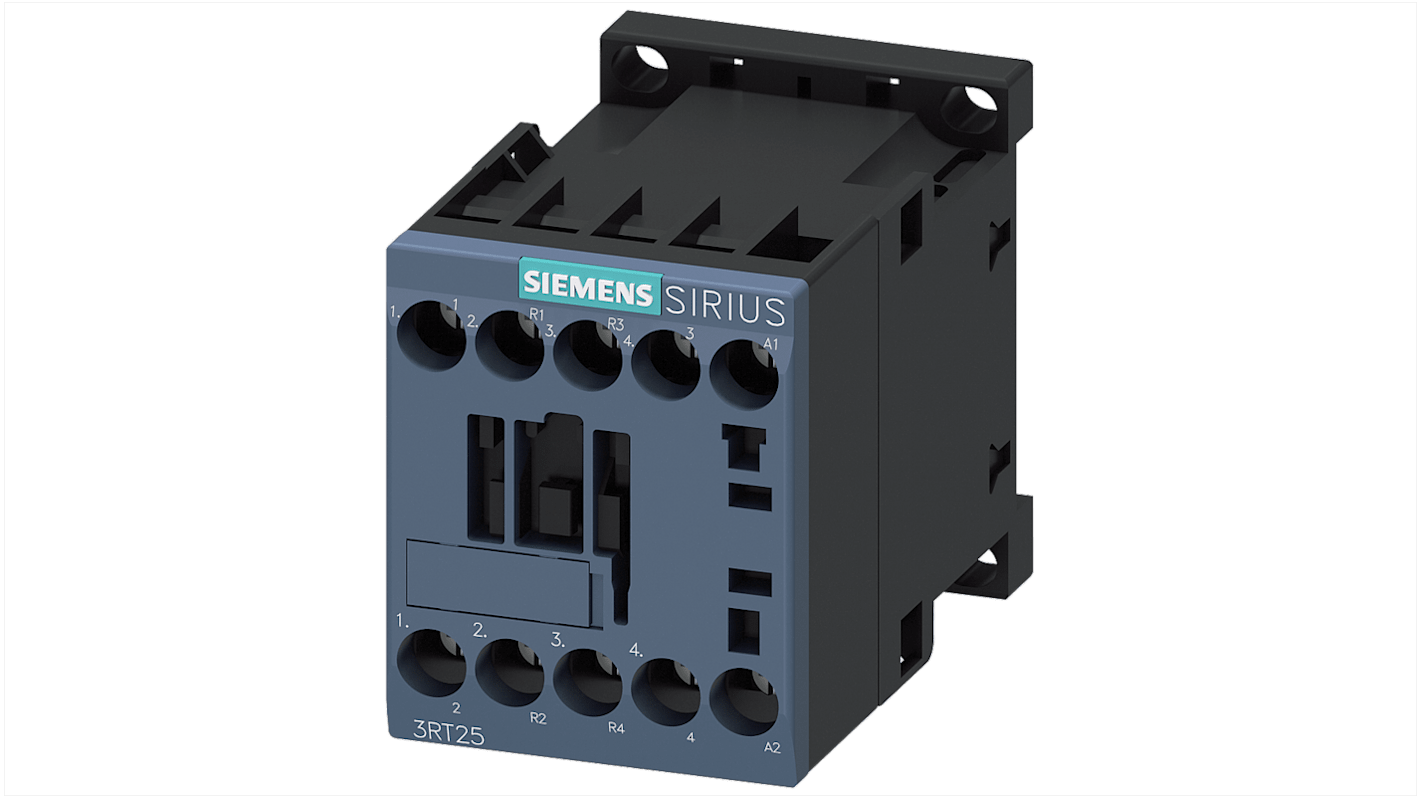

Siemens SIRIUS 3RT Size S00, 3RT25 Contactor, 24 V ac Coil, 4-Pole, 12 A, 5.5 kW, 2NC + 2NO
- RS Stock No.:
- 216-2842
- Mfr. Part No.:
- 3RT2517-1AB00
- Brand:
- Siemens
Subtotal (1 unit)*
£41.44
(exc. VAT)
£49.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £41.44 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 216-2842
- Mfr. Part No.:
- 3RT2517-1AB00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Coil Voltage | 24 V ac | |
Number of Poles | 4 | |
Contact Current Rating | 12 A | |
Power Rating | 5.5 kW | |
Range | SIRIUS 3RT | |
Series | Size S00, 3RT25 | |
Function | Reversing | |
Normal State Configuration | 2NC + 2NO | |
Better World Product | Yes | |
Better World Claim | Low carbon manufacture | |
Select all | ||
---|---|---|
Brand Siemens | ||
Coil Voltage 24 V ac | ||
Number of Poles 4 | ||
Contact Current Rating 12 A | ||
Power Rating 5.5 kW | ||
Range SIRIUS 3RT | ||
Series Size S00, 3RT25 | ||
Function Reversing | ||
Normal State Configuration 2NC + 2NO | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
- COO (Country of Origin):
- DE
The Siemens SIRIUS 3RT2 series is a contactor for switching motors. It has power rating of 5.5 kW. It has a size of S00. The type of electrical connection for main current circuit and for auxiliary and control current circuit is through screw terminal. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application direct or via PLC input. The contactor are climate-resistant and approved for worldwide use e.g. IEC and UL/CSA.
Mounting type is screw and Snap-On mounting
Ambient operating temperature is -25 to +60 °C
Ambient operating temperature is -25 to +60 °C
