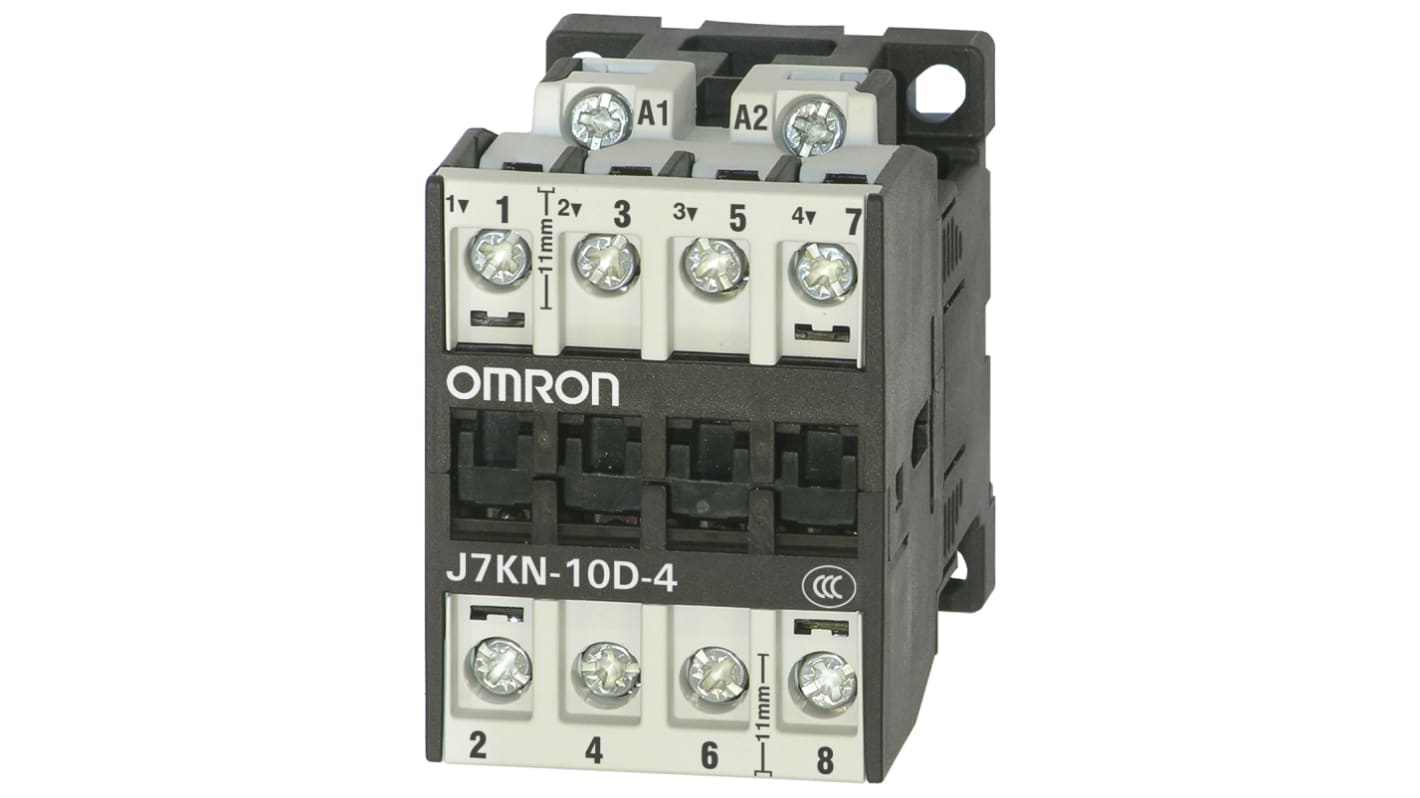

Omron J7KN Contactor, 230 V ac Coil, 4-Pole, 25 A, 4 kW, Screw
- RS Stock No.:
- 214-7704
- Mfr. Part No.:
- J7KN-10D-4 230
- Brand:
- Omron
Subtotal (1 unit)*
£29.04
(exc. VAT)
£34.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 8 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.04 |
*price indicative
- RS Stock No.:
- 214-7704
- Mfr. Part No.:
- J7KN-10D-4 230
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 230 V ac | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Current | 25A | |
| Series | J7KN | |
| Power Rating | 4kW | |
| Mount Type | DIN Rail | |
| Normal State Configuration | Screw | |
| Auxiliary Contact Configuration | Integrated | |
| Terminal Type | Screw | |
| Operational Current Ie | 3A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 64.5mm | |
| Width | 45 mm | |
| Depth | 78.5mm | |
| Standards/Approvals | IEC 60947-4-1 | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 230 V ac | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Current 25A | ||
Series J7KN | ||
Power Rating 4kW | ||
Mount Type DIN Rail | ||
Normal State Configuration Screw | ||
Auxiliary Contact Configuration Integrated | ||
Terminal Type Screw | ||
Operational Current Ie 3A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Length 64.5mm | ||
Width 45 mm | ||
Depth 78.5mm | ||
Standards/Approvals IEC 60947-4-1 | ||
Pole and Throw Configuration 4 | ||
The Omron contactor has 3 poles. It operate on 230 V AC supply. It has 25 A rated current.
It is compliant to the global standards
Accessories like auxiliary contacts front or/and side mounted, mechanical interlock and suppressor units
