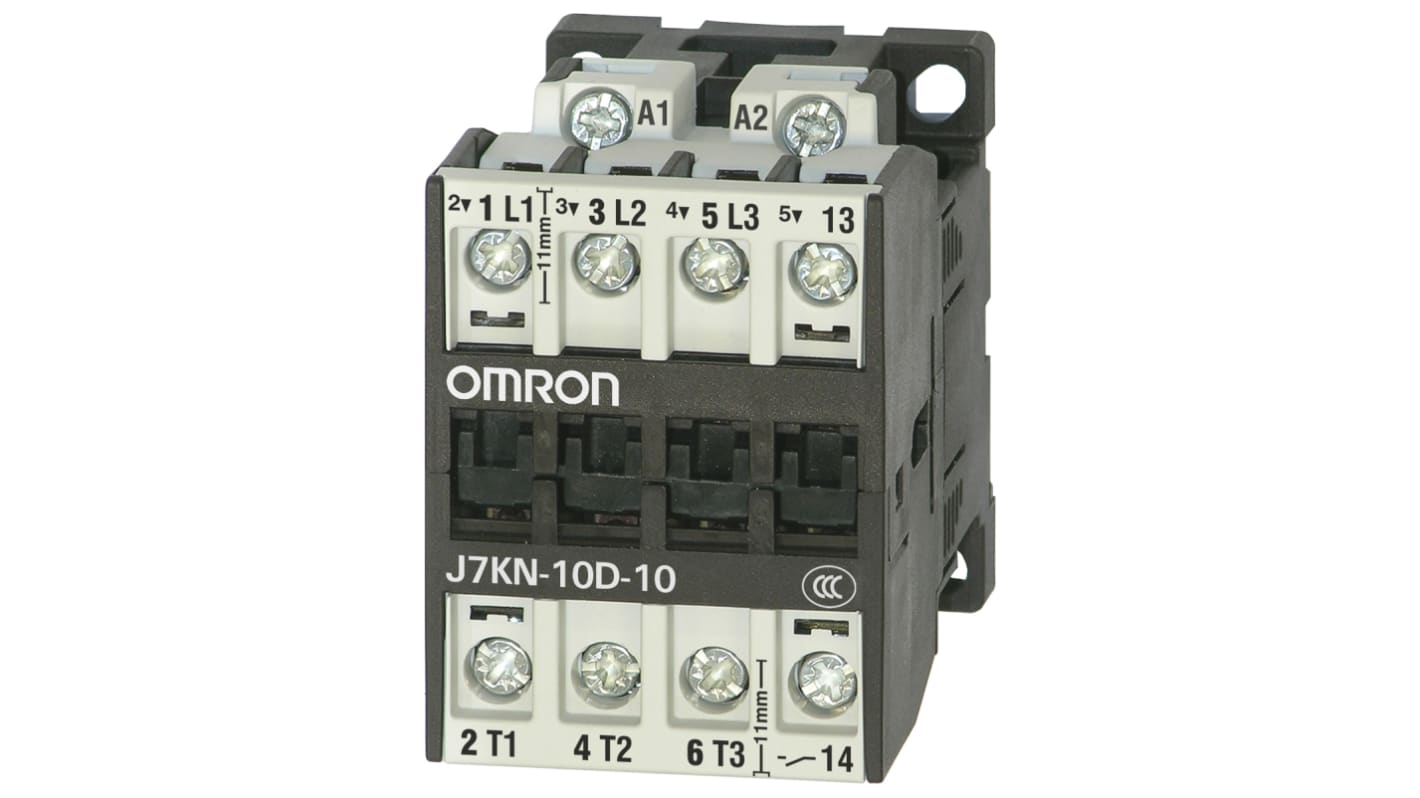

Omron J7KN Contactor, 230V ac Coil, 3-Pole, 10 A, 4 kW 24V, 1 NO, 415V
- RS Stock No.:
- 214-6845
- Distrelec Article No.:
- 110-27-917
- Mfr. Part No.:
- J7KN-10D-10 230
- Brand:
- Omron
Subtotal (1 unit)*
£29.04
(exc. VAT)
£34.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.04 |
*price indicative
- RS Stock No.:
- 214-6845
- Distrelec Article No.:
- 110-27-917
- Mfr. Part No.:
- J7KN-10D-10 230
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Contactor | |
| Coil Voltage | 230V ac | |
| Number of Poles | 3 | |
| Contact Voltage | 415V | |
| Contact Current | 10A | |
| Series | J7KN | |
| Power Rating | 4kW | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 1 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 2A | |
| Contactor Application | Motor Control | |
| Control Circuit Voltage Uc | 24V | |
| Maximum Operating Temperature | 60°C | |
| Length | 83mm | |
| Width | 45mm | |
| Depth | 65mm | |
| Standards/Approvals | IEC, UL, EN | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Contactor | ||
Coil Voltage 230V ac | ||
Number of Poles 3 | ||
Contact Voltage 415V | ||
Contact Current 10A | ||
Series J7KN | ||
Power Rating 4kW | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 1 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 2A | ||
Contactor Application Motor Control | ||
Control Circuit Voltage Uc 24V | ||
Maximum Operating Temperature 60°C | ||
Length 83mm | ||
Width 45mm | ||
Depth 65mm | ||
Standards/Approvals IEC, UL, EN | ||
Pole and Throw Configuration 3 | ||
The Omron contactor which has coil voltage 230 V ac and has current rating of 10 A. It has electrical connection of screw fixing and snap fitting on a DIN-rail. It has dimension of H67 x W45 x D82.5.
Ambient operating temperature -40 to 60 °C
Finger proof
