Schneider Electric TeSys K Contactor, 42 V ac Coil, 3-Pole, 9 A, 4 kW, 1NC
- RS Stock No.:
- 210-9933
- Mfr. Part No.:
- LC1K0901D7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£33.08
(exc. VAT)
£39.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6 unit(s) shipping from 08 October 2025
- Plus 999,999,993 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.08 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 210-9933
- Mfr. Part No.:
- LC1K0901D7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 42 V ac | |
| Number of Poles | 3 | |
| Contact Current Rating | 9 A | |
| Power Rating | 4 kW | |
| Range | TeSys K | |
| Function | Reversing | |
| Normal State Configuration | 1NC | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 42 V ac | ||
Number of Poles 3 | ||
Contact Current Rating 9 A | ||
Power Rating 4 kW | ||
Range TeSys K | ||
Function Reversing | ||
Normal State Configuration 1NC | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- FR

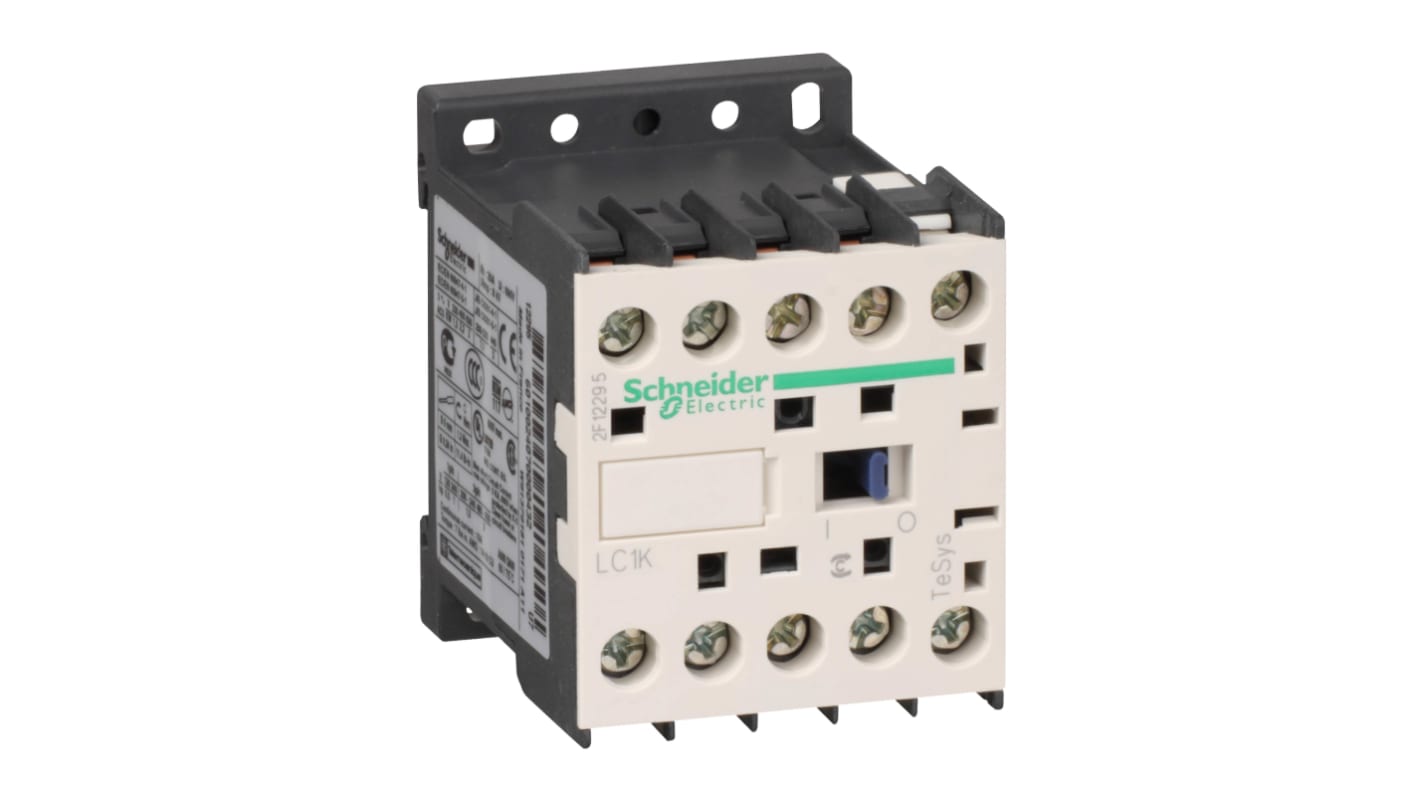

Schneider Electric LC1K0901D7
TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 42V 50/60Hz AC coil, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
The Schneider Electric TeSys K series is a contactor which has a control circuit voltage of 42 V ac. It is used in applications like controlling and resistive load. The type of connection is with screw clamp terminal and has a net weight of 0.18 kg. It has a approval of CSA and UL certifications.
IP degree of protection is IP2x conforming to VDE 0106
Sustainable offer status is Green Premium product
Mounting support is rail, plate
Sustainable offer status is Green Premium product
Mounting support is rail, plate
