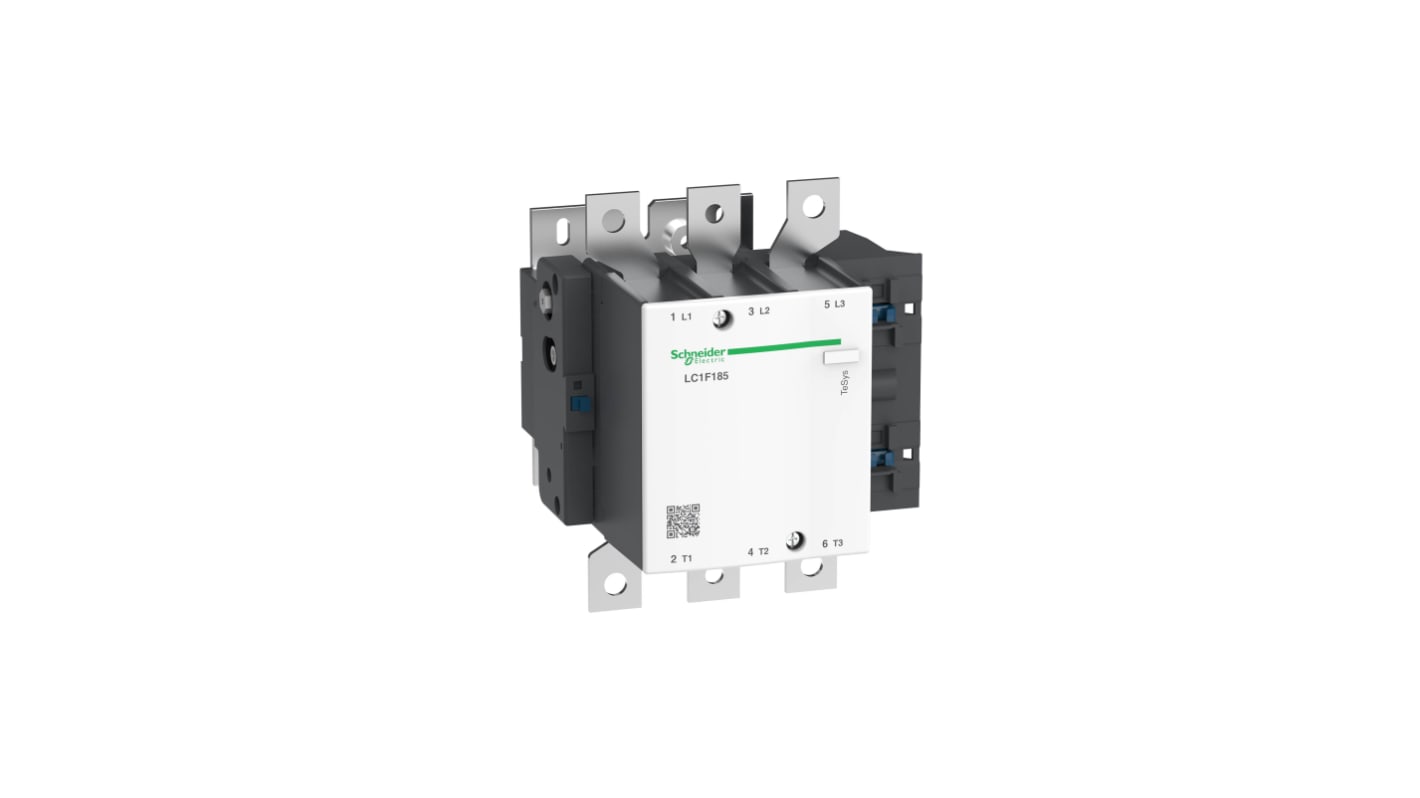

The Schneider Electric TeSys F series is a contactor which has a control circuit voltage of 24 V dc. It is used in applications like motor control and resistive load. The type of connection for control circuit is through screw clamp terminal.
IP degree of protection is IP2x front face conforming to IEC 60529 Ambient operating temperature is -40 to 60 °C
Attribute
Value
Coil Voltage
24 V dc
Number of Poles
3
Contact Current Rating
185 A
Range
TeSys F
Power Rating
110 kW
Function
Reversing
Normal State Configuration
3NO
