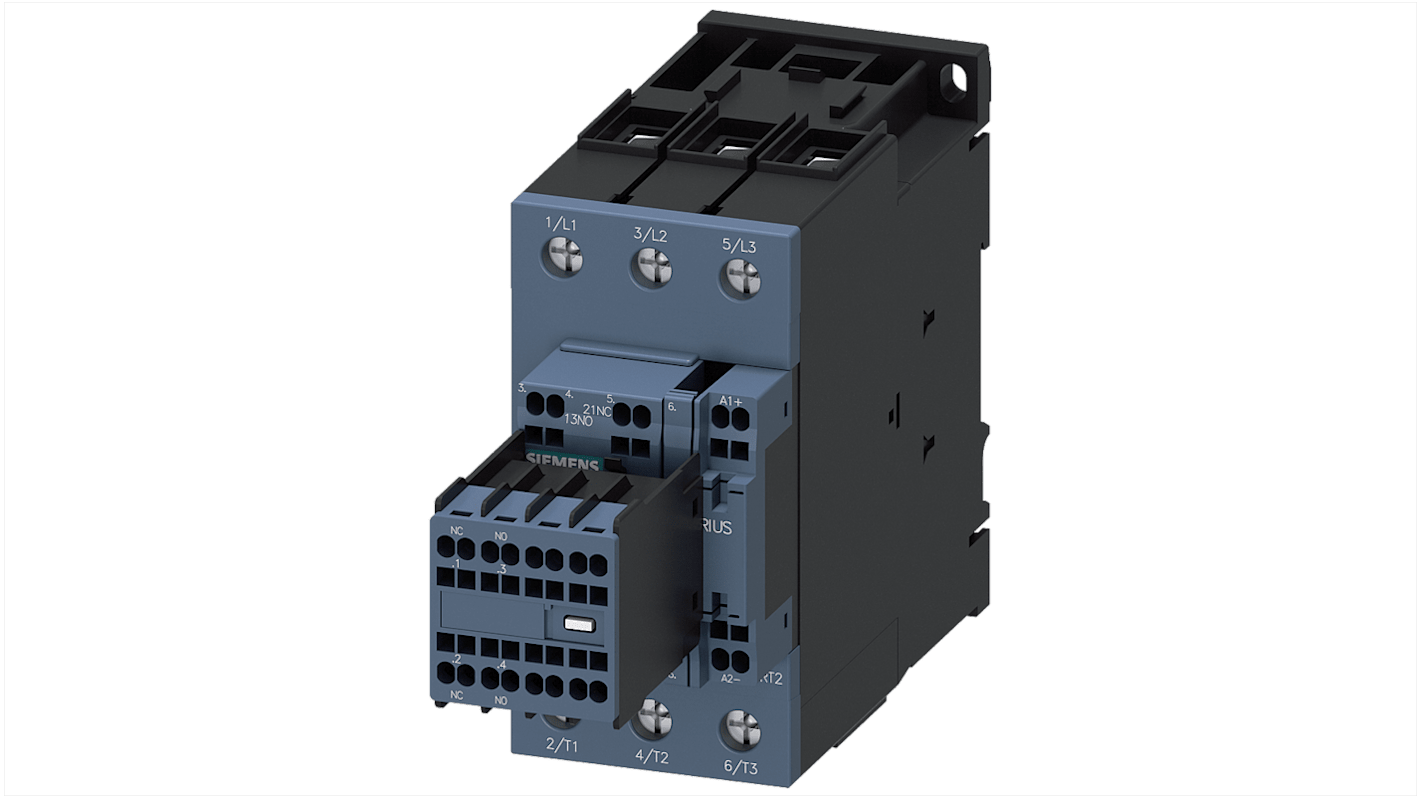

Siemens SIRIUS 3RT Size S2, 3RT2 Contactor, 110 V dc Coil, 3-Pole, 80 A, 37 kW, 2NO + 2NC
- RS Stock No.:
- 210-4455
- Mfr. Part No.:
- 3RT2038-3XF44-0LA2
- Brand:
- Siemens
Subtotal (1 unit)*
£494.71
(exc. VAT)
£593.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £494.71 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 210-4455
- Mfr. Part No.:
- 3RT2038-3XF44-0LA2
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 110 V dc | |
| Number of Poles | 3 | |
| Contact Current Rating | 80 A | |
| Power Rating | 37 kW | |
| Series | Size S2, 3RT2 | |
| Range | SIRIUS 3RT | |
| Normal State Configuration | 2NO + 2NC | |
| Better World Product | Yes | |
| Better World Claim | Low carbon manufacture | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 110 V dc | ||
Number of Poles 3 | ||
Contact Current Rating 80 A | ||
Power Rating 37 kW | ||
Series Size S2, 3RT2 | ||
Range SIRIUS 3RT | ||
Normal State Configuration 2NO + 2NC | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
- COO (Country of Origin):
- DE
The Siemens 3RT2 series traction contactor with varistor has spring-type terminals and its used for switching motors under extreme conditions, e.g. for railway applications.
The 3RT2 contactor offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactor offer the best connection to the automation level for every application. Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactor are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. This version is characterized by an extended operating and temperature range for tougher ambient conditions.
The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 contactor offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactor offer the best connection to the automation level for every application. Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactor are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. This version is characterized by an extended operating and temperature range for tougher ambient conditions.
The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
Mounting type is screw and Snap-On mounting
Ambient operating temperature is -40 to +70 °C
Protection class for frount IP20 and for terminals is IP00
Ambient operating temperature is -40 to +70 °C
Protection class for frount IP20 and for terminals is IP00
