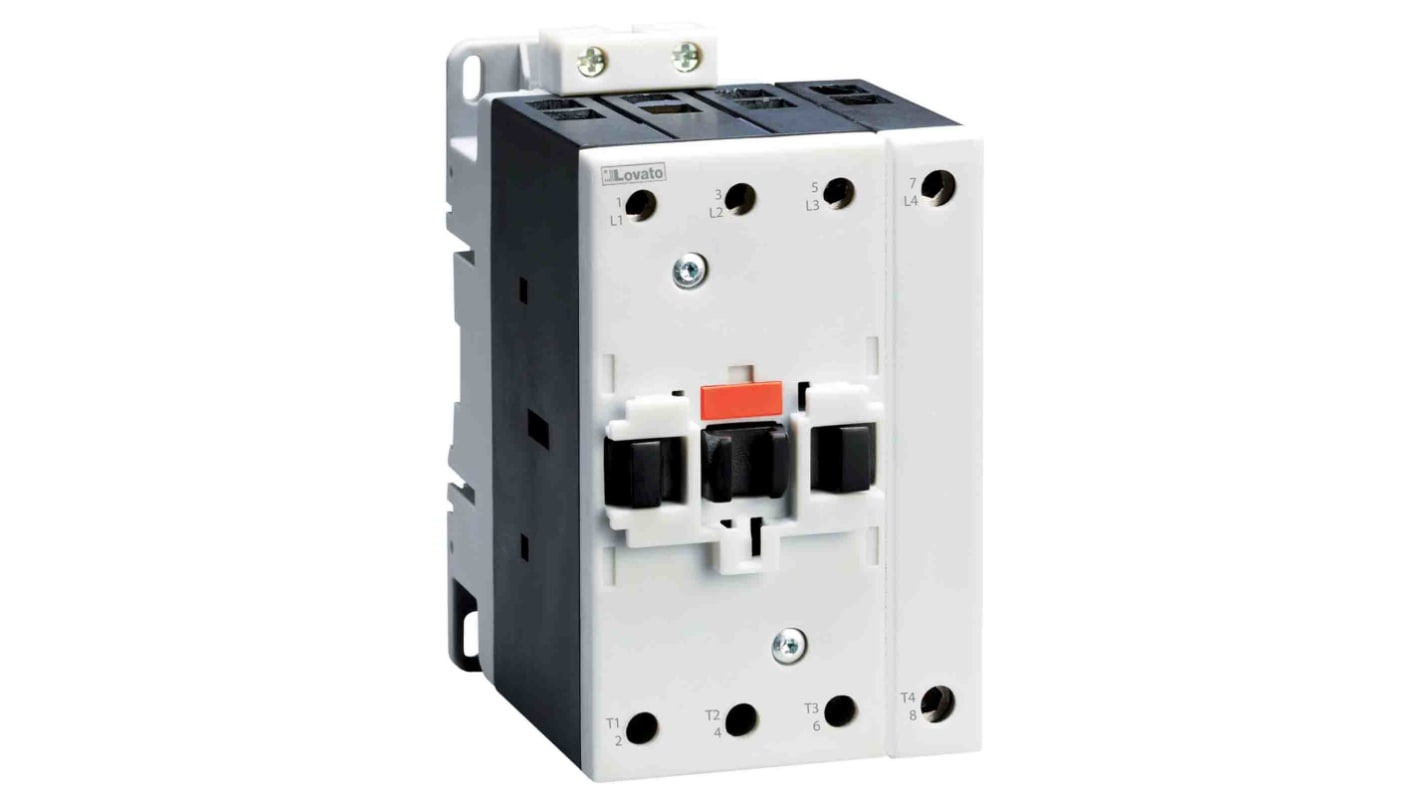

Lovato BF Contactor, 400V ac Coil, 4-Pole, 115 A, 45 kW 400V ac, 4 NO, 660 V dc, 690V ac
- RS Stock No.:
- 188-1551
- Mfr. Part No.:
- BF80T4A400
- Brand:
- Lovato
Subtotal (1 unit)*
£399.86
(exc. VAT)
£479.83
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £399.86 |
*price indicative
- RS Stock No.:
- 188-1551
- Mfr. Part No.:
- BF80T4A400
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Product Type | Contactor | |
| Coil Voltage | 400V ac | |
| Number of Poles | 4 | |
| Contact Voltage | 660, 690V dc | |
| Contact Current | 115A | |
| Power Rating | 45kW | |
| Series | BF | |
| Mount Type | DIN Rail | |
| Function | Motor Control | |
| Normal State Configuration | 4 NO | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -50°C | |
| Contactor Application | Motor Control | |
| Control Circuit Voltage Uc | 400V ac | |
| Operational Current Ie | 80A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA, IEC, UL | |
| Length | 73mm | |
| Width | 115mm | |
| Depth | 136mm | |
| Pole and Throw Configuration | 4PST | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Product Type Contactor | ||
Coil Voltage 400V ac | ||
Number of Poles 4 | ||
Contact Voltage 660, 690V dc | ||
Contact Current 115A | ||
Power Rating 45kW | ||
Series BF | ||
Mount Type DIN Rail | ||
Function Motor Control | ||
Normal State Configuration 4 NO | ||
Terminal Type Screw | ||
Minimum Operating Temperature -50°C | ||
Contactor Application Motor Control | ||
Control Circuit Voltage Uc 400V ac | ||
Operational Current Ie 80A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA, IEC, UL | ||
Length 73mm | ||
Width 115mm | ||
Depth 136mm | ||
Pole and Throw Configuration 4PST | ||
Four-pole Contactor, IEC operating current ith (ac1) = 115a, ac coil 50/60hz, 400vac
