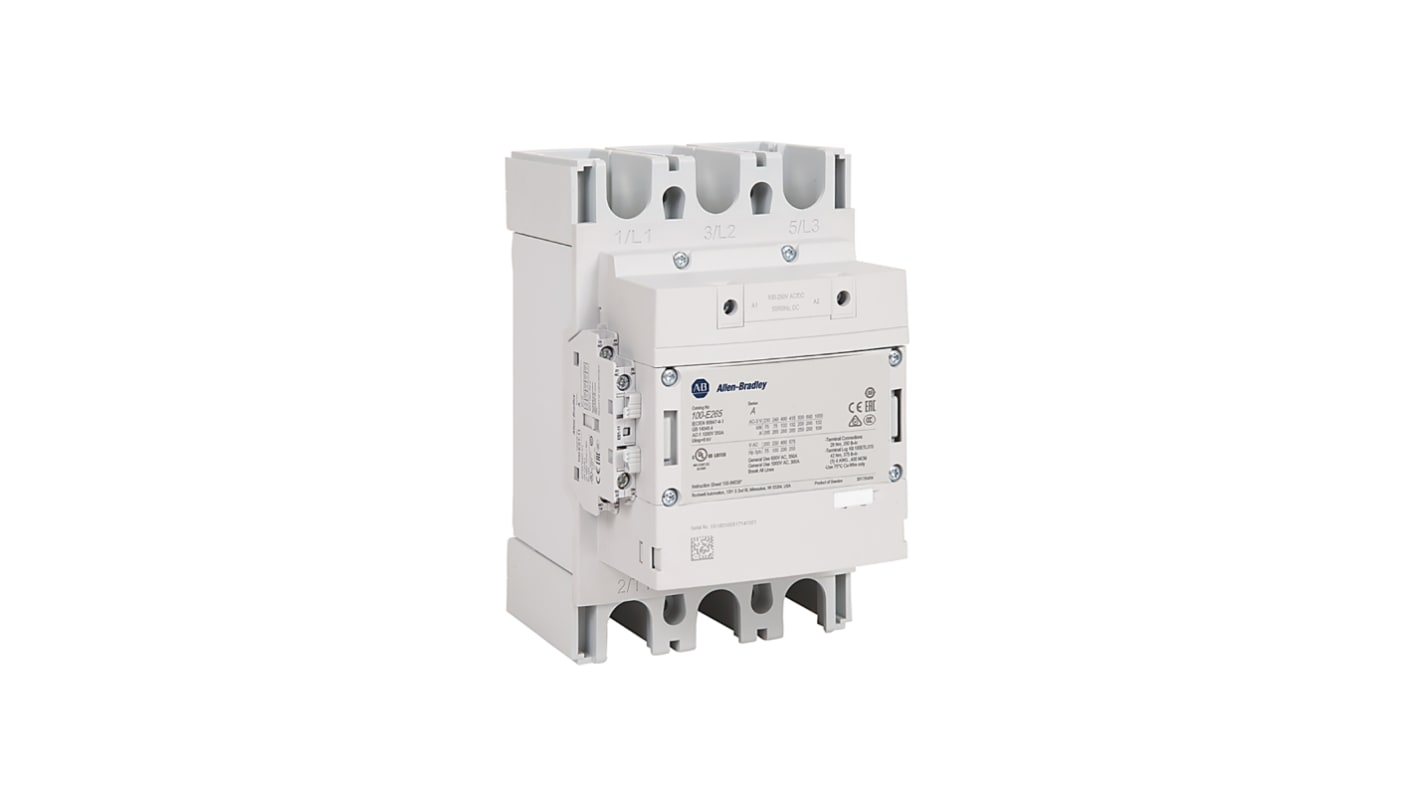

Allen Bradley 100S-E Contactor, 24V ac/dc, 60 V ac/dc Coil, 3-Pole, 116 A, 160 kW 60V ac/dc, 1 NO/1 NC, 60V ac/dc
- RS Stock No.:
- 183-4606
- Distrelec Article No.:
- 302-27-165
- Mfr. Part No.:
- 100S-E265KJ12C
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£1,090.14
(exc. VAT)
£1,308.17
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,090.14 |
*price indicative
- RS Stock No.:
- 183-4606
- Distrelec Article No.:
- 302-27-165
- Mfr. Part No.:
- 100S-E265KJ12C
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Coil Voltage | 24, 60V ac/dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 60V ac/dc | |
| Contact Current | 116A | |
| Power Rating | 160kW | |
| Series | 100S-E | |
| Mount Type | DIN Rail | |
| Function | Motor Control | |
| Normal State Configuration | 1 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 60V ac/dc | |
| Contactor Application | Safety | |
| Operational Current Ie | 116A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN/IEC | |
| Width | 180mm | |
| Length | 140mm | |
| Depth | 225mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Coil Voltage 24, 60V ac/dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 60V ac/dc | ||
Contact Current 116A | ||
Power Rating 160kW | ||
Series 100S-E | ||
Mount Type DIN Rail | ||
Function Motor Control | ||
Normal State Configuration 1 NO/1 NC | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 60V ac/dc | ||
Contactor Application Safety | ||
Operational Current Ie 116A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN/IEC | ||
Width 180mm | ||
Length 140mm | ||
Depth 225mm | ||
Pole and Throw Configuration 3 | ||
100S-E MCS-E Safety Contactor, 265A, AC3 duty, 24-60V 50/60Hz / 20-60V DC Electronic Coil, 1 N.O. 1 N.C. Standard & 0 N.O. 1 N.C. Lower Power Auxiliary Contacts
