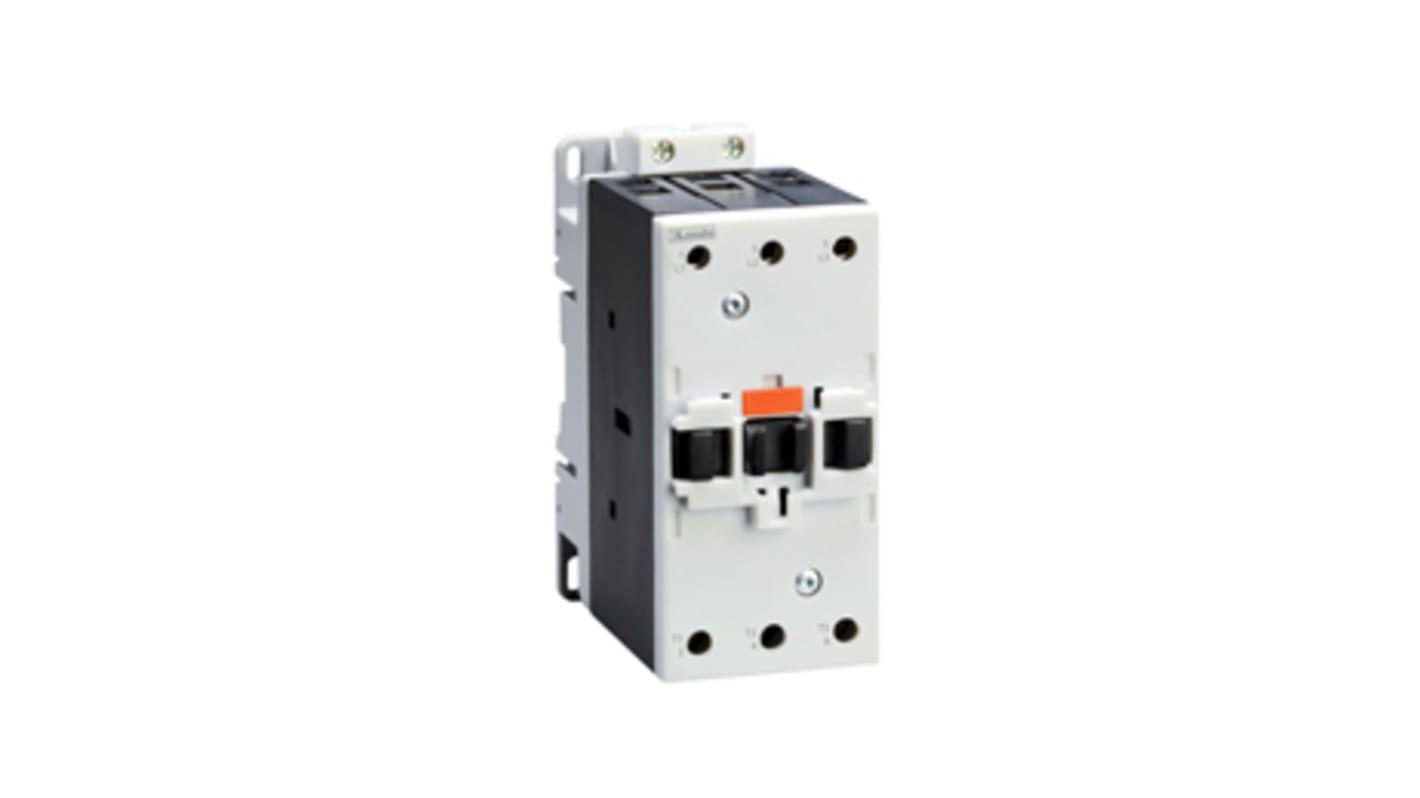

Lovato Orange BF Contactor, 24 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 440 V ac
- RS Stock No.:
- 146-9038
- Mfr. Part No.:
- BF5000E024
- Brand:
- Lovato
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-9038
- Mfr. Part No.:
- BF5000E024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 440 V ac | |
| Contact Current Rating | 50 A | |
| Series | BF | |
| Power Rating | 22 kW | |
| Range | Orange | |
| Normal State Configuration | 3NO | |
| Terminal Type | Clamp Terminal | |
| Width | 114.5mm | |
| Length | 55mm | |
| Depth | 136mm | |
| Pole and Throw Configuration | 3PST | |
| Minimum Operating Temperature | -50°C | |
| Mounting Style | DIN Rail Mount | |
| Maximum Operating Temperature | +70°C | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 440 V ac | ||
Contact Current Rating 50 A | ||
Series BF | ||
Power Rating 22 kW | ||
Range Orange | ||
Normal State Configuration 3NO | ||
Terminal Type Clamp Terminal | ||
Width 114.5mm | ||
Length 55mm | ||
Depth 136mm | ||
Pole and Throw Configuration 3PST | ||
Minimum Operating Temperature -50°C | ||
Mounting Style DIN Rail Mount | ||
Maximum Operating Temperature +70°C | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- IT
Highly conductive auxiliary contacts with four contact points
Quick connect - snap on accessory mounting
Distinct contact status indication
Up to four auxiliary contacts can be mounted
Mechanical interlock only 5mm deep
Positive (force) guided contacts
(mechanically-linked per IEC)
three-pole contactors, 9 to 110A IEC AC3 duty / 5 to 75HP 480V - 7.5 to 100HP 600V UL/CSA
Four-pole contactors, 25 to 125A in AC1 duty
Power factor correction contactors, 7.5 to 75kvar at 400V IEC / 9 to 80kvar at 480V UL/CSA
Types with 2NO+2NC or 4NC main power poles
Types for photovoltaic applications
Highly conductive auxiliary contacts
Coils with AC or DC supply
Wide-range coils with electronic control for contactors from 40 to 80A AC3
Low-consumption versions for control relays and 9-
38A contactors in IEC AC3 duty
Quick connect - snap on accessory mounting
Distinct contact status indication
Up to four auxiliary contacts can be mounted
Mechanical interlock only 5mm deep
Positive (force) guided contacts
(mechanically-linked per IEC)
three-pole contactors, 9 to 110A IEC AC3 duty / 5 to 75HP 480V - 7.5 to 100HP 600V UL/CSA
Four-pole contactors, 25 to 125A in AC1 duty
Power factor correction contactors, 7.5 to 75kvar at 400V IEC / 9 to 80kvar at 480V UL/CSA
Types with 2NO+2NC or 4NC main power poles
Types for photovoltaic applications
Highly conductive auxiliary contacts
Coils with AC or DC supply
Wide-range coils with electronic control for contactors from 40 to 80A AC3
Low-consumption versions for control relays and 9-
38A contactors in IEC AC3 duty
