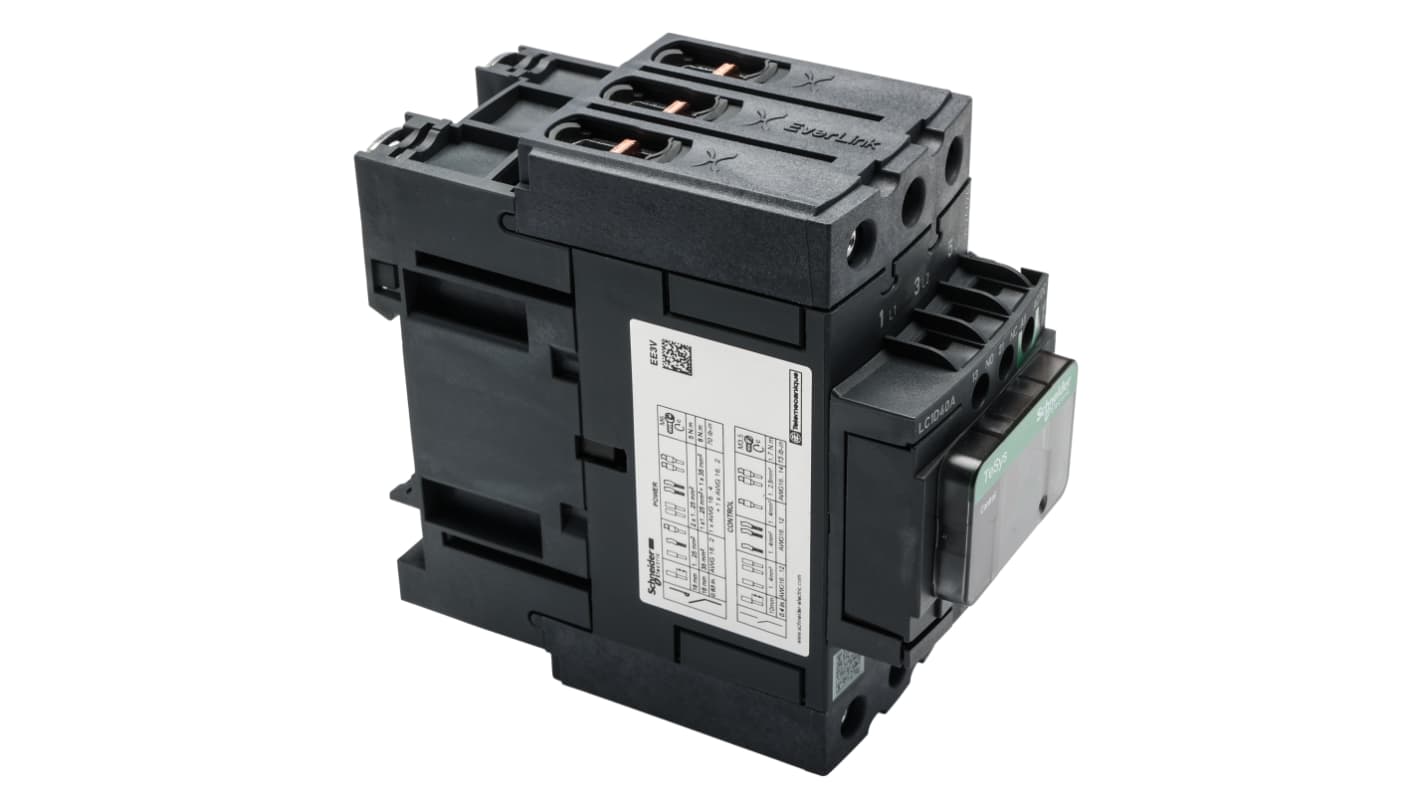

Schneider Electric TeSys D TeSyS D Contactor, 24 V ac/dc Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 135-3959
- Mfr. Part No.:
- LC1D40ABNE
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£206.74
(exc. VAT)
£248.09
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 4 unit(s) shipping from 01 December 2025
- Plus 1 unit(s) shipping from 01 December 2025
Units | Per unit |
|---|---|
| 1 + | £206.74 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 135-3959
- Mfr. Part No.:
- LC1D40ABNE
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24 V ac/dc | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 40 A | |
| Series | TeSyS D | |
| Power Rating | 18.5 kW | |
| Range | TeSys D | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Terminal Type | Screw | |
| Width | 120mm | |
| Length | 55mm | |
| Depth | 122mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Control Voltage | 24 V dc | |
| Maximum Operating Temperature | +60°C | |
| Load Voltage | 400V ac | |
| Load Current | 60A | |
| Pole and Throw Configuration | 3PST | |
| Input Current | 40A | |
| Mounting Style | DIN Rail Mount | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24 V ac/dc | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 40 A | ||
Series TeSyS D | ||
Power Rating 18.5 kW | ||
Range TeSys D | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Terminal Type Screw | ||
Width 120mm | ||
Length 55mm | ||
Depth 122mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Control Voltage 24 V dc | ||
Maximum Operating Temperature +60°C | ||
Load Voltage 400V ac | ||
Load Current 60A | ||
Pole and Throw Configuration 3PST | ||
Input Current 40A | ||
Mounting Style DIN Rail Mount | ||
Minimum Operating Temperature -40°C | ||
Schneider Electric LC1D Series Contactor, 3 Poles, 40A Contact Current Rating - LC1D40ABNE
Features & Benefits
• Designed for continuous operation at +60°C maximum temperature
• Coils compatible with both AC and DC for flexible use
• 3NO contact configuration for effective load management
• Built-in peak limiting enhances circuit safety during operation
Applications
• Suitable for load control in HVAC systems
• Commonly used in agricultural equipment for reliable operation
• Effective in controlling electric drives across various machinery
• Utilised in commercial lighting systems for automation tasks
