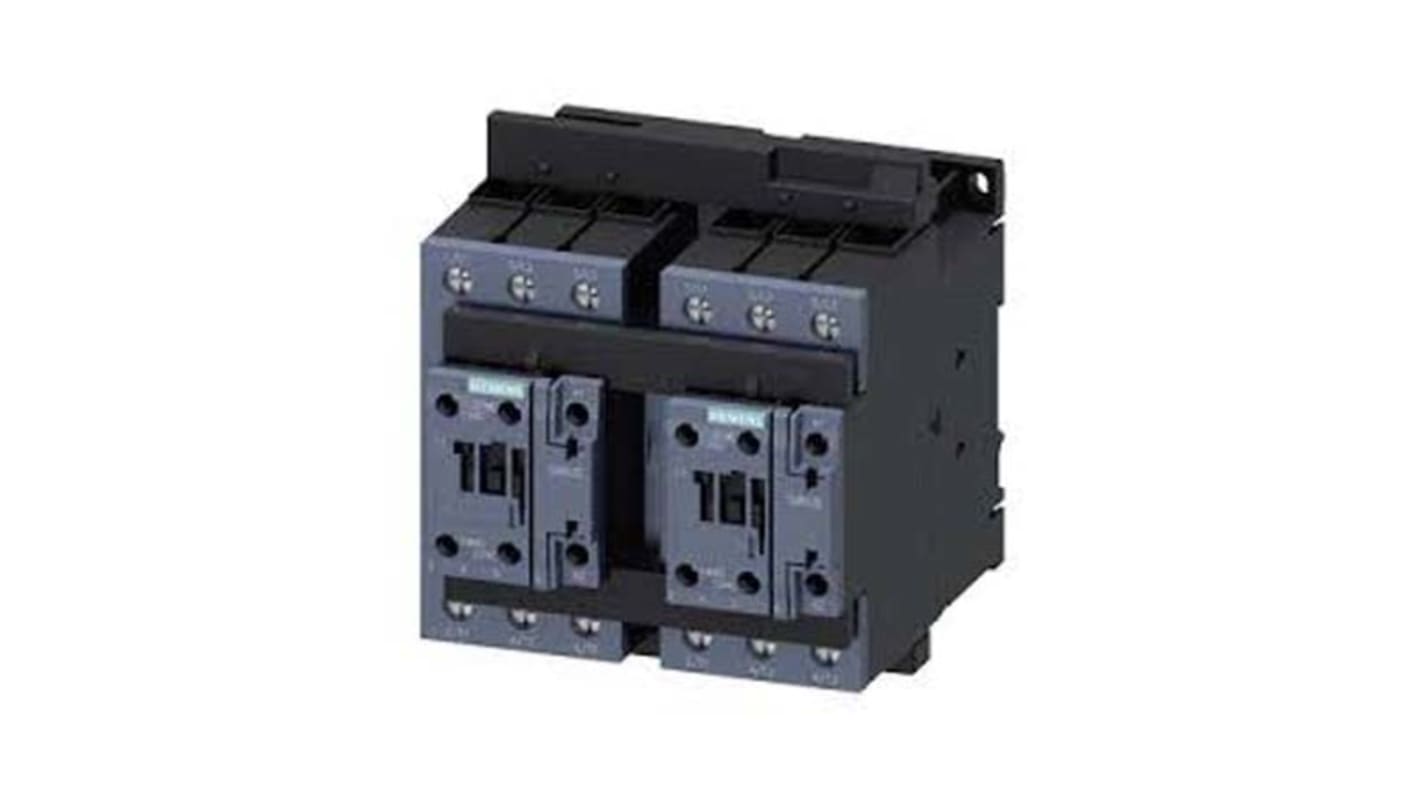

Siemens SRA23 Contactor, 110V ac Coil, 3-Pole, 60 A, 22 kW 110V ac, 3 NO, 690V ac
- RS Stock No.:
- 124-3053
- Mfr. Part No.:
- 3RA2336-8XB30-1AK6
- Brand:
- Siemens
Subtotal (1 unit)*
£381.58
(exc. VAT)
£457.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £381.58 |
*price indicative
- RS Stock No.:
- 124-3053
- Mfr. Part No.:
- 3RA2336-8XB30-1AK6
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 110V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 60A | |
| Series | SRA23 | |
| Power Rating | 22kW | |
| Function | Motor Control, Reversing | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Screw Clamp | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 41A | |
| Contactor Application | Motor Control | |
| Control Circuit Voltage Uc | 110V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CCC, CE, CSA, EAC, RoHS, UKCA, UL | |
| Width | 130mm | |
| Depth | 141mm | |
| Length | 120mm | |
| Pole and Throw Configuration | 3PST | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 110V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 60A | ||
Series SRA23 | ||
Power Rating 22kW | ||
Function Motor Control, Reversing | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Terminal Type Screw Clamp | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 41A | ||
Contactor Application Motor Control | ||
Control Circuit Voltage Uc 110V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CCC, CE, CSA, EAC, RoHS, UKCA, UL | ||
Width 130mm | ||
Depth 141mm | ||
Length 120mm | ||
Pole and Throw Configuration 3PST | ||
- COO (Country of Origin):
- DE
Contactors - 3RA23 Range
The Siemens fully wired reversing contactor assemblies are suitable for use in any climate. The 3RA23 contactor assemblies have screw terminals (main and control circuits) and are suitable for screwing or snapping onto TH 35 standard mounting rails. All models are highly reliable and of extremely good quality.
Current rating and voltage will vary among the range.
