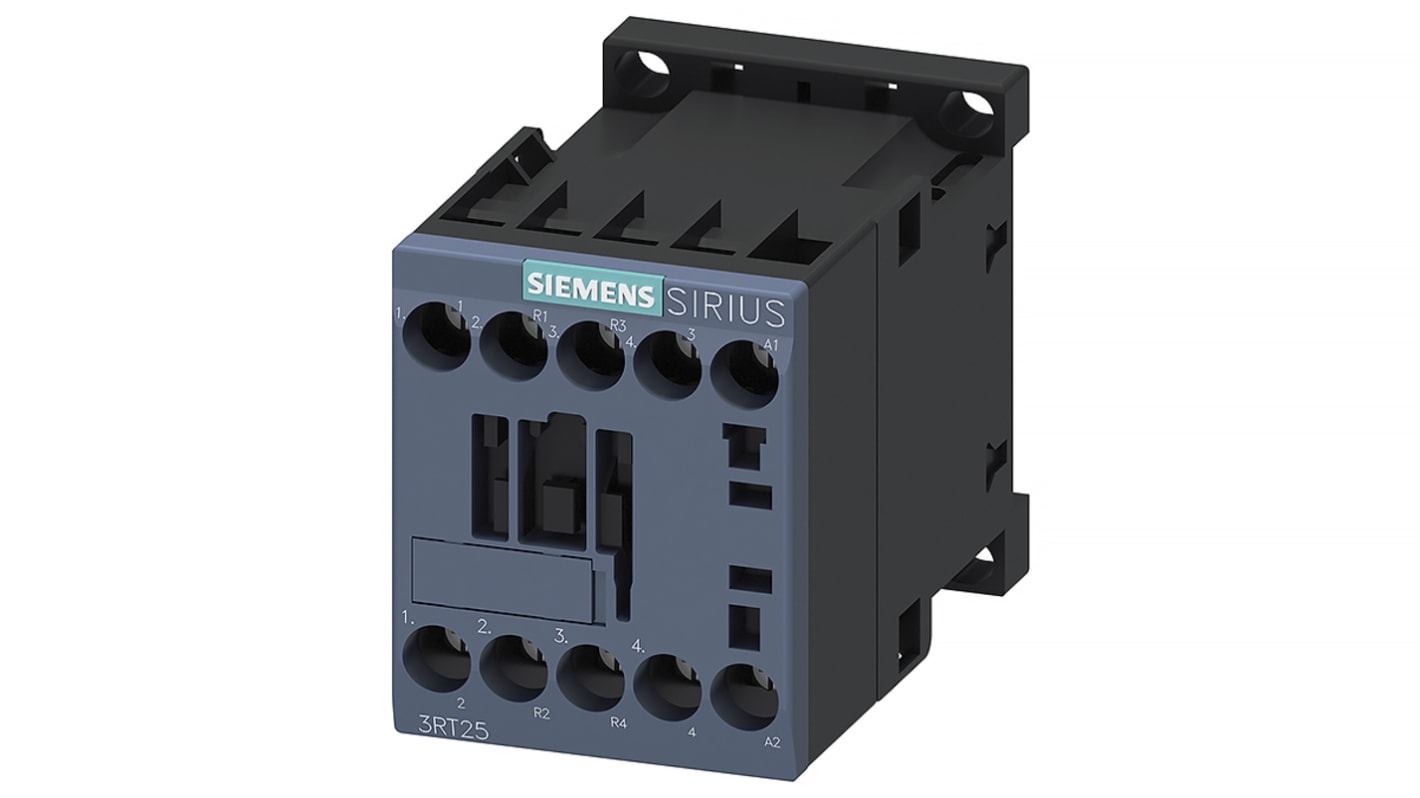

Siemens SIRIUS 3RT Size S00, 3RT25 Contactor, 24 V ac Coil, 4-Pole, 9 A, 4 kW, 2NO + 2NC, 690 V ac
- RS Stock No.:
- 122-9471
- Mfr. Part No.:
- 3RT2516-1AB00
- Brand:
- Siemens
Subtotal (1 unit)*
£26.72
(exc. VAT)
£32.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 06 October 2025
- Plus 8 unit(s) shipping from 06 October 2025
- Plus 999,999,998 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.72 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 122-9471
- Mfr. Part No.:
- 3RT2516-1AB00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 9 A | |
| Range | SIRIUS 3RT | |
| Power Rating | 4 kW | |
| Series | Size S00, 3RT25 | |
| Normal State Configuration | 2NO + 2NC | |
| Terminal Type | Screw | |
| Length | 45mm | |
| Width | 73mm | |
| Depth | 57.5mm | |
| Better World Product | Yes | |
| Better World Claim | Low carbon manufacture | |
| Pole and Throw Configuration | 4PST | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 9 A | ||
Range SIRIUS 3RT | ||
Power Rating 4 kW | ||
Series Size S00, 3RT25 | ||
Normal State Configuration 2NO + 2NC | ||
Terminal Type Screw | ||
Length 45mm | ||
Width 73mm | ||
Depth 57.5mm | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
Pole and Throw Configuration 4PST | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Contactors - 3RT Range, Screw Connections
The 3RT Range of Siemens Contactors. All models are highly reliable and extremely good quality.
Features and Benefits
- Screw Connection
- All models vary with Current rating and Voltage.
- Various NO/NC Values
