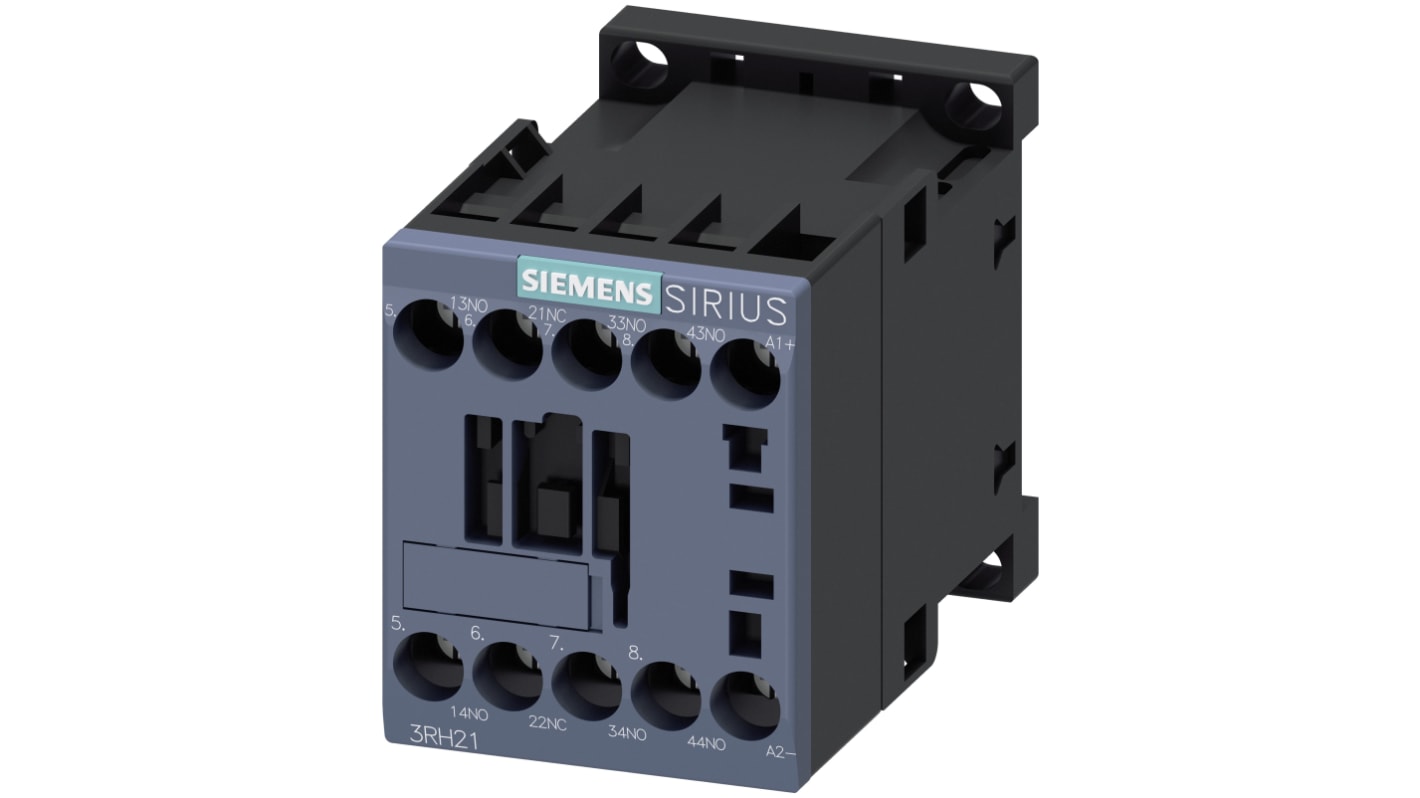

Siemens SIRIUS 3RH2 Contactor Relay, 24 V dc Coil, 10 A, 3NO + 1NC, 690 V ac
- RS Stock No.:
- 122-9413
- Mfr. Part No.:
- 3RH2131-1JB40
- Brand:
- Siemens
Subtotal (1 unit)*
£39.39
(exc. VAT)
£47.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.39 |
*price indicative
- RS Stock No.:
- 122-9413
- Mfr. Part No.:
- 3RH2131-1JB40
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24 V dc | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 10 A | |
| Series | 3RH2 | |
| Range | SIRIUS | |
| Normal State Configuration | 3NO + 1NC | |
| Auxiliary Contact Configuration | 3NO/1NC | |
| Number Of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 57.5mm | |
| Depth | 73mm | |
| Load Voltage | 690V ac | |
| Minimum Operating Temperature | -25°C | |
| Load Current | 10A | |
| Maximum Operating Temperature | +60°C | |
| Mounting Style | DIN Rail Mount | |
| Control Voltage | 24 Vdc | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24 V dc | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 10 A | ||
Series 3RH2 | ||
Range SIRIUS | ||
Normal State Configuration 3NO + 1NC | ||
Auxiliary Contact Configuration 3NO/1NC | ||
Number Of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 57.5mm | ||
Depth 73mm | ||
Load Voltage 690V ac | ||
Minimum Operating Temperature -25°C | ||
Load Current 10A | ||
Maximum Operating Temperature +60°C | ||
Mounting Style DIN Rail Mount | ||
Control Voltage 24 Vdc | ||
- Datasheet_3RH2131-1JB40
- Basic Information
- Siemens Sirius Migration
- Sirius: Migrating From Classic to Innovation
- Environmental Product Declaration - Overview
- Environmental Product Declaration
- Instruction Sheet - 3RT2.1/3RH21/3RH24 Series
- Manual - Short-Circuit Current Rating of Industrial Control Panels
- Catalogue - Contactor Relays and Relays
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Siemens 3RH2 Series Contactor Relay, 24V DC Coil Voltage, 10A Contact Current - 3RH2131-1JB40
This contactor relay is designed for robust electrical control applications, featuring a compact design suitable for DIN rail mounting. The relay operates with a control voltage of 24V DC and is capable of handling contact voltage ratings of up to 690V AC. With a configuration of 3NO + 1NC, it excels in managing auxiliary circuits efficiently.
Features & Benefits
• Integrated diode ensures reliable operation and protects the circuit
• High mechanical service life rated at 30 million operating cycles
• Dimensions designed for tight spaces with a compact form factor
• Screw terminal connection type facilitates easy wiring and installation
• High mechanical service life rated at 30 million operating cycles
• Dimensions designed for tight spaces with a compact form factor
• Screw terminal connection type facilitates easy wiring and installation
Applications
• Used for switching auxiliary circuits in automation systems
• Ideal for controlling various industrial electrical systems
• Suitable for requiring high load voltage capacities
• Utilised in scenarios where precise relay activation is necessary
• Ideal for controlling various industrial electrical systems
• Suitable for requiring high load voltage capacities
• Utilised in scenarios where precise relay activation is necessary
What type of auxiliary contacts does it include?
It features 3 normally open contacts and 1 normally closed contact, providing versatile switching options for different applications.
How does it manage temperature variations during operation?
The relay operates effectively across a temperature range of -25°C to +60°C, ensuring stability in various environmental conditions.
What is the maximum operational current it can handle?
The relay can accommodate a maximum operational current of 10A at AC-12 and AC-15 ratings, suitable for diverse load types.
How does the integrated diode affect performance?
The integrated diode protects against back EMF and ensures smoother operation when switching inductive loads, enhancing reliability.
Is installation straightforward?
Yes, it features screw-type terminals for secure and easy connections, simplifying the installation process on DIN rail mounts.
