Eaton's DILE mini contactor overload relays reflect a long tradition of reliable, code compliant and efficient power distribution in any automation and control environments. These circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous areas and are ideally suited for use within harsh environments with high temperatures.

The DILE mini auxiliary contactor overload relays have compact dimensions and a modular design for the highest packing densities. Their space-saving size allows these mini contactor relays to be used wherever small motors or loads need to be controlled and switched. With an extended performance range of up to 5.5 kW at 400 V, an output range up to 7A and extensive approvals that mean they are suitable to be used worldwide.

The DILE mini contactor relays are available as AC versions (for control current networks from 24 V to 480 V with 50 Hz or 60 Hz) or DC versions (for control current versions from 12 V to 220 V). The DC operated versions have the suppressor as a diode-resistor combination integrated into the device.

Within the DILER series of contactor overload relays Eaton offers both a spring-loaded terminal and a screw terminal version with interlocked opposing contacts allowing the devices to be expanded to up to 8 auxiliary contacts.

• AC drive - for control voltages from 24 V to 600 V, at 50 Hz or 60 Hz
• DC drive - for control voltages from 12 V to 250 V
• UL and CSA approvals
• For controlling motors up to 5.5 kW
• DC-operated devices with integrated suppressor circuits
• Auxiliary NC with mirror contacts for use in safety-related applications
• Low power consumption - can be controlled directly from a PLC

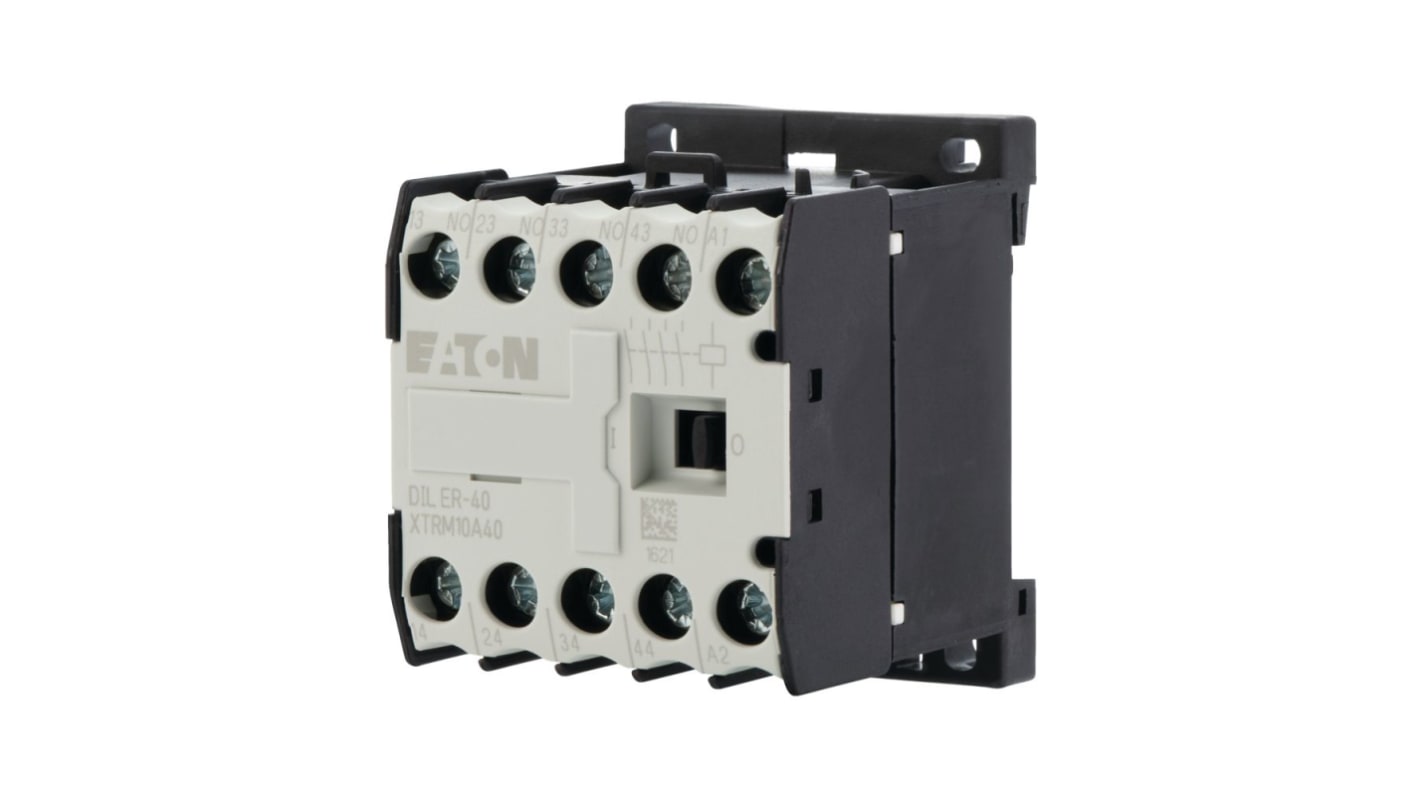

This contactor relay is intended for effective control of electrical circuits within industrial environments. It plays a vital role in automating processes by managing the flow of electricity through four normally open contacts. This relay promotes operational safety and performance across diverse applications, making it an essential component for automation and electrical professionals.

• Direct AC operation with a coil voltage of 240V
• 400V AC contact rating for enhanced performance
• Maximum current handling of 3A per pole
• Screw terminals enable easy connectivity
• Solid and flexible terminal capacity options for diverse connections

• Utilised with interlocked opposing contacts for improved safety
• Ideal for controlling motors and other equipment in automation
• Suitable for electrical installations demanding dependable switching
• Applicable in varied industrial settings for efficient circuit management

Ensure that the operational current does not exceed 3A per pole and that the voltage rating is appropriate for 240V AC operation.

The relay's screw terminals allow for secure connections with solid or flexible wires, ensuring dependable operation.

Yes, this relay operates effectively within a temperature range of -25°C to +40°C, suitable for various environmental conditions.
