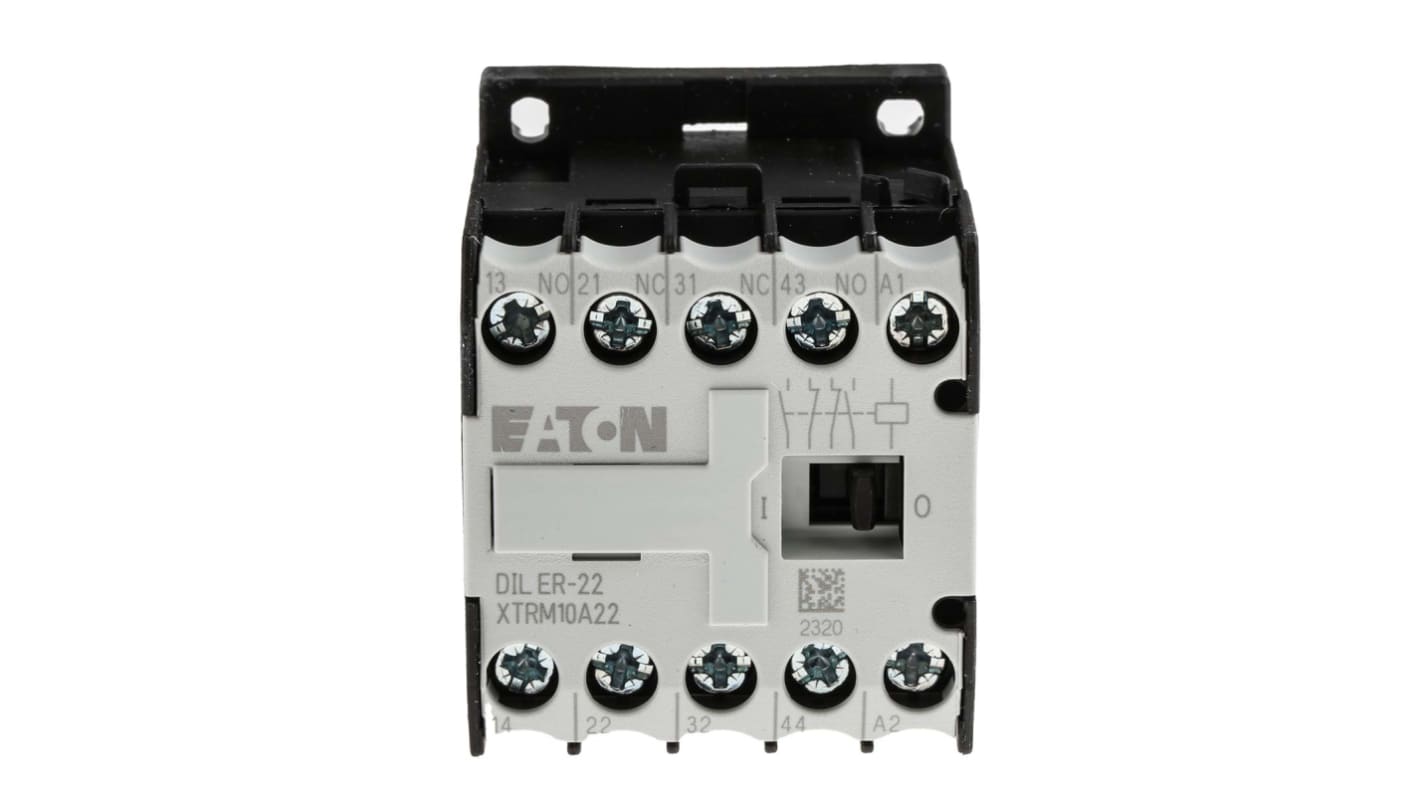

Eaton xStart DILER Contactor, 24 V ac Coil, 4-Pole, 3 A, 2NO + 2NC, 400 V ac
- RS Stock No.:
- 323-044
- Mfr. Part No.:
- 010344 DILER-22(24V50HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£45.49
(exc. VAT)
£54.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 20 unit(s) shipping from 24 November 2025
- Plus 3 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.49 |
*price indicative
- RS Stock No.:
- 323-044
- Mfr. Part No.:
- 010344 DILER-22(24V50HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 3 A | |
| Series | DILER | |
| Range | xStart | |
| Normal State Configuration | 2NO + 2NC | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 58mm | |
| Width | 45mm | |
| Depth | 54mm | |
| Pole and Throw Configuration | 4P | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +40°C | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 3 A | ||
Series DILER | ||
Range xStart | ||
Normal State Configuration 2NO + 2NC | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 58mm | ||
Width 45mm | ||
Depth 54mm | ||
Pole and Throw Configuration 4P | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- DE
Eaton Contactor Overload Relays - DILE Mini Contactor Relays
Eaton's DILE mini contactor overload relays reflect a long tradition of reliable, code compliant and efficient power distribution in any automation and control environments. These circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous areas and are ideally suited for use within harsh environments with high temperatures.
The DILE mini auxiliary contactor overload relays have compact dimensions and a modular design for the highest packing densities. Their space-saving size allows these mini contactor relays to be used wherever small motors or loads need to be controlled and switched. With an extended performance range of up to 5.5 kW at 400 V, an output range up to 7A and extensive approvals that mean they are suitable to be used worldwide.
The DILE mini contactor relays are available as AC versions (for control current networks from 24 V to 480 V with 50 Hz or 60 Hz) or DC versions (for control current versions from 12 V to 220 V). The DC operated versions have the suppressor as a diode-resistor combination integrated into the device.
Within the DILER series of contactor overload relays Eaton offers both a spring-loaded terminal and a screw terminal version with interlocked opposing contacts allowing the devices to be expanded to up to 8 auxiliary contacts.
The DILE mini auxiliary contactor overload relays have compact dimensions and a modular design for the highest packing densities. Their space-saving size allows these mini contactor relays to be used wherever small motors or loads need to be controlled and switched. With an extended performance range of up to 5.5 kW at 400 V, an output range up to 7A and extensive approvals that mean they are suitable to be used worldwide.
The DILE mini contactor relays are available as AC versions (for control current networks from 24 V to 480 V with 50 Hz or 60 Hz) or DC versions (for control current versions from 12 V to 220 V). The DC operated versions have the suppressor as a diode-resistor combination integrated into the device.
Within the DILER series of contactor overload relays Eaton offers both a spring-loaded terminal and a screw terminal version with interlocked opposing contacts allowing the devices to be expanded to up to 8 auxiliary contacts.
Features and Benefits
• AC drive - for control voltages from 24 V to 600 V, at 50 Hz or 60 Hz
• DC drive - for control voltages from 12 V to 250 V
• UL and CSA approvals
• For controlling motors up to 5.5 kW
• DC-operated devices with integrated suppressor circuits
• Auxiliary NC with mirror contacts for use in safety-related applications
• Low power consumption - can be controlled directly from a PLC
• DC drive - for control voltages from 12 V to 250 V
• UL and CSA approvals
• For controlling motors up to 5.5 kW
• DC-operated devices with integrated suppressor circuits
• Auxiliary NC with mirror contacts for use in safety-related applications
• Low power consumption - can be controlled directly from a PLC
Eaton Contactor Relay, 24V AC Coil, 400V AC Contact - DILER Series - 010344 DILER-22(24V50HZ)
This contactor relay from Eaton protects your motor’s current from damage. When a current is overloaded, it begins to overheat, damaging coils and leading to a short-circuit in the motor. This unit is wired to the circuit so it trips when the current exceeds the maximum allowance of 3A (amperes) and breaks the connection, preventing strain. It has an operating temperature range of -25°C to +40°C so it can withstand use in extreme cold or high-heat environments. This type of relay is commonly used in automation and control environments.
Features & Benefits
• Lasts for approximately 10 million operations for a durable mechanical lifespan
• Screw mountable for swift and secure installation
• Finger-proof IP20 (ingress protection) rating means it's safe to touch without fear of electrocution
• Screw mountable for swift and secure installation
• Finger-proof IP20 (ingress protection) rating means it's safe to touch without fear of electrocution
How often can this contactor relay be used without damaging the mechanism?
This contactor relay has a maximum operating frequency of 9,000 mechanical operations per hour, ensuring it can withstand constant use and that rapid switching between on and off won't wear down the mechanism.
