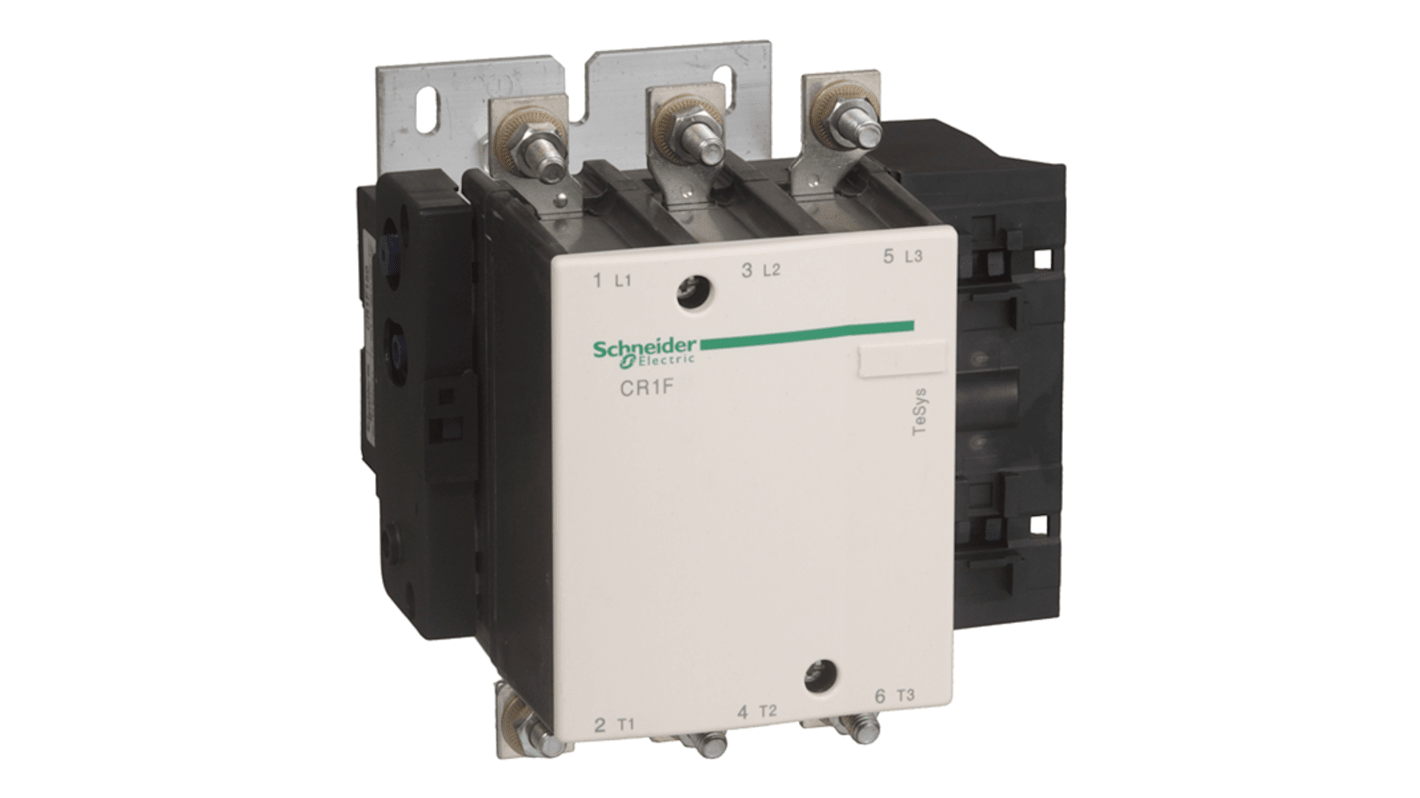

Schneider Electric TeSys F Contactor, 110V dc Coil, 3-Pole, 150 A, 75 kW 110V dc, 3 NO, 1000V ac
- RS Stock No.:
- 205-348
- Mfr. Part No.:
- CR1F150F7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£853.51
(exc. VAT)
£1,024.21
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £853.51 |
*price indicative
- RS Stock No.:
- 205-348
- Mfr. Part No.:
- CR1F150F7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 110V dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 1000V ac | |
| Contact Current | 150A | |
| Series | TeSys F | |
| Power Rating | 75kW | |
| Function | Motor Control, Resistive Load | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 3 | |
| Auxiliary Contact Configuration | 3 NO | |
| Minimum Operating Temperature | -15°C | |
| Control Circuit Voltage Uc | 110V dc | |
| Contactor Application | Motor Control, Resistive Load | |
| Operational Current Ie | 150A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 171mm | |
| Standards/Approvals | EN/IEC 60947-1 EN/IEC 60947-4-1 JIS C8201-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 | |
| Width | 164mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 110V dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 1000V ac | ||
Contact Current 150A | ||
Series TeSys F | ||
Power Rating 75kW | ||
Function Motor Control, Resistive Load | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 3 | ||
Auxiliary Contact Configuration 3 NO | ||
Minimum Operating Temperature -15°C | ||
Control Circuit Voltage Uc 110V dc | ||
Contactor Application Motor Control, Resistive Load | ||
Operational Current Ie 150A | ||
Maximum Operating Temperature 70°C | ||
Depth 171mm | ||
Standards/Approvals EN/IEC 60947-1 EN/IEC 60947-4-1 JIS C8201-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 | ||
Width 164mm | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- CZ
The Schneider Electric Magnetic latching contactor 3 poles (3NO), 150A/1000V AC-3, for motor applications up to 75kW@400V. It provides a double coil 110V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods.
EU RoHS
Mercury free
