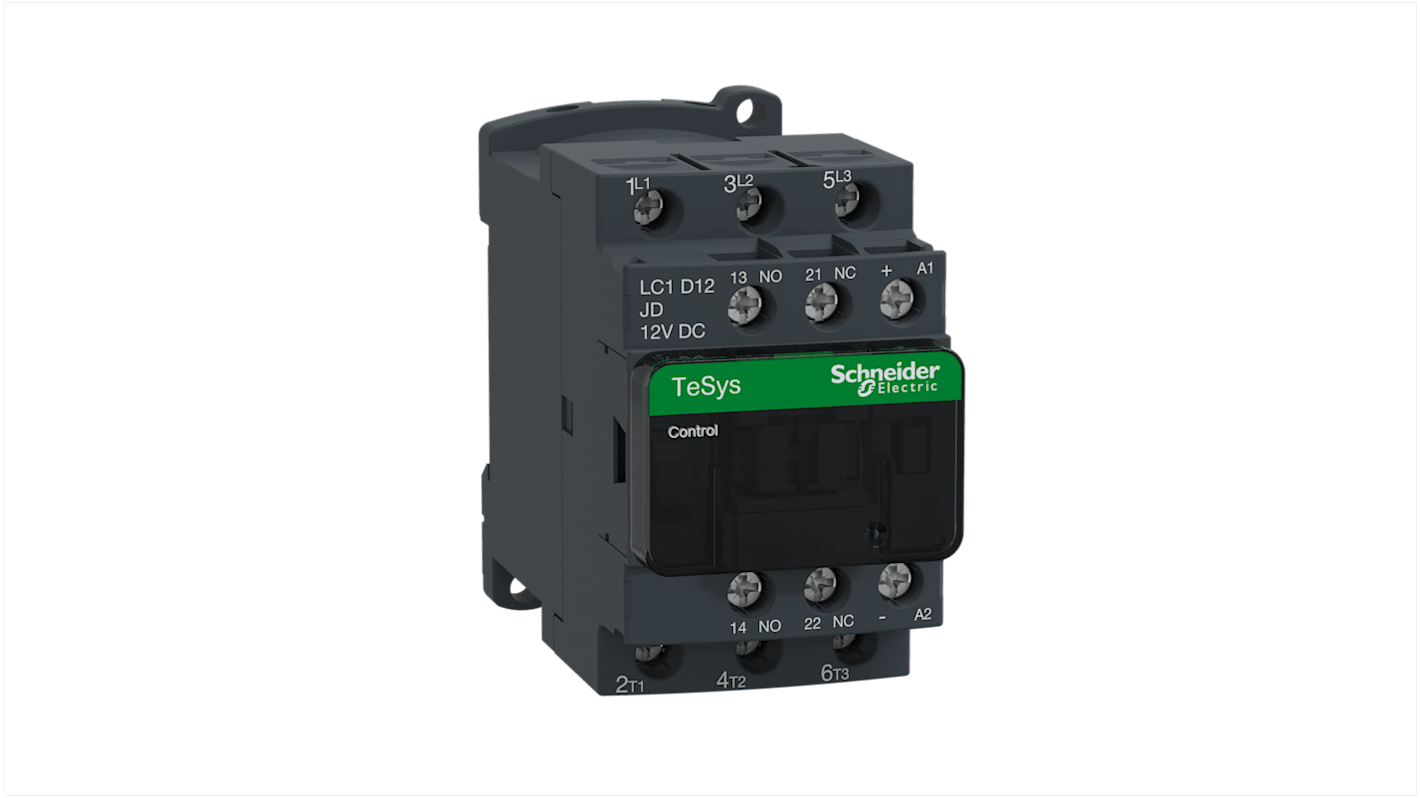

Schneider Electric TeSys D TeSyS D Contactor, 12 V dc Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 187-295
- Mfr. Part No.:
- LC1D12JD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£97.99
(exc. VAT)
£117.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £97.99 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 187-295
- Mfr. Part No.:
- LC1D12JD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 12 V dc | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 12 A | |
| Power Rating | 5.5 kW | |
| Range | TeSys D | |
| Series | TeSyS D | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 77mm | |
| Depth | 93mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Pole and Throw Configuration | 3P | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -5°C | |
| Mounting Style | DIN Rail Mount | |
| Control Voltage | 12 V | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 12 V dc | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 12 A | ||
Power Rating 5.5 kW | ||
Range TeSys D | ||
Series TeSyS D | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 77mm | ||
Depth 93mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Pole and Throw Configuration 3P | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -5°C | ||
Mounting Style DIN Rail Mount | ||
Control Voltage 12 V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric Contactor, 690V AC Contact Voltage, 2 Auxiliary Contacts - TeSys Series - LC1D12JD
Get your motor starter running with this contactor from Schneider Electric's TeSys Deca range. It's a heavy-duty option that opens and closes high-current carrying loads without putting your electrical circuit in a make-or-break situation. The unit has mechanical durability of up to 30 million cycles to withstand the demands of unforgiving environments. An opening time of 16 to 24ms means it's quick off the mark, so you benefit from an almost instant reaction speed. This robust unit takes shock and vibration in its stride, making it ideal for use in demanding applications.
• Flame-retardant, so there's minimal risk of it catching alight in the event of a fire
• IP20-rated enclosure is touch-proof and protected against objects larger than 12mm
• Space-saving dimensions of 77 (H) x 45 (W) x 95mm (D) to optimise circuit-board packing efficiency
• End-of-life optimised to maximise its recycling potential
• IP20-rated enclosure is touch-proof and protected against objects larger than 12mm
• Space-saving dimensions of 77 (H) x 45 (W) x 95mm (D) to optimise circuit-board packing efficiency
• End-of-life optimised to maximise its recycling potential
Applications
• Mining and mineral processing
• Gensets
• Pumping equipment
• Wastewater management
• Gensets
• Pumping equipment
• Wastewater management
Is this contactor insulated?
Yes, to keep you safe and help avoid the risk of electric shock, this contactor is isolated.
