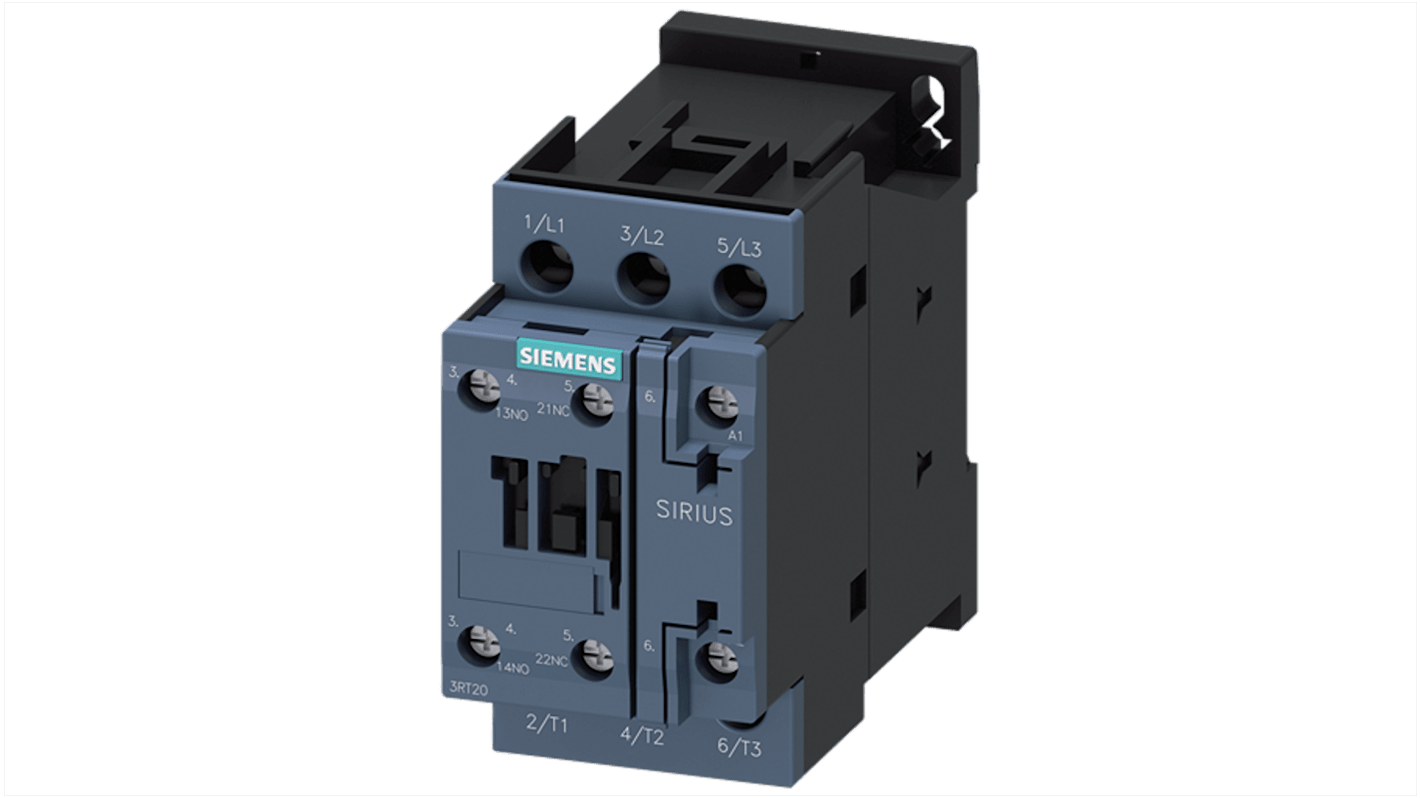

Siemens 3RT2 Contactor, 208V ac Coil, 3-Pole, 25 A, 11 kW 208V ac, 1 NO/1 NC, 690V
- RS Stock No.:
- 159-832
- Mfr. Part No.:
- 3RT2026-1AM20-1AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£88.26
(exc. VAT)
£105.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.26 |
*price indicative
- RS Stock No.:
- 159-832
- Mfr. Part No.:
- 3RT2026-1AM20-1AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 208V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 25A | |
| Power Rating | 11kW | |
| Series | 3RT2 | |
| Function | Motor Control | |
| Normal State Configuration | 1 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Contactor Application | Safety | |
| Control Circuit Voltage Uc | 208V ac | |
| Operational Current Ie | 40A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 85mm | |
| Standards/Approvals | ISO 13849-1, ISO 13849-2 | |
| Width | 45mm | |
| Depth | 97mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 208V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 25A | ||
Power Rating 11kW | ||
Series 3RT2 | ||
Function Motor Control | ||
Normal State Configuration 1 NO/1 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Contactor Application Safety | ||
Control Circuit Voltage Uc 208V ac | ||
Operational Current Ie 40A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Length 85mm | ||
Standards/Approvals ISO 13849-1, ISO 13849-2 | ||
Width 45mm | ||
Depth 97mm | ||
- COO (Country of Origin):
- DE
The Siemens Power Contactor is engineered for reliable performance in industrial applications. Tailored for AC-3 and AC-3e tasks, it offers exceptional operational capabilities, handling currents up to 25 A and voltages of 690 V. Featuring a compact design suited for S0 mounting, it incorporates advanced insulation and surge voltage resistance properties, making it ideal for a variety of demanding environments.
Utilises advanced materials for extended mechanical life
Reliable operation across a wide temperature range
Supports auxiliary switches for enhanced flexibility
Integral surge voltage resistance for surge protection
Compact size for easy installation in confined spaces
Screw terminal connections for secure and accessible wiring
