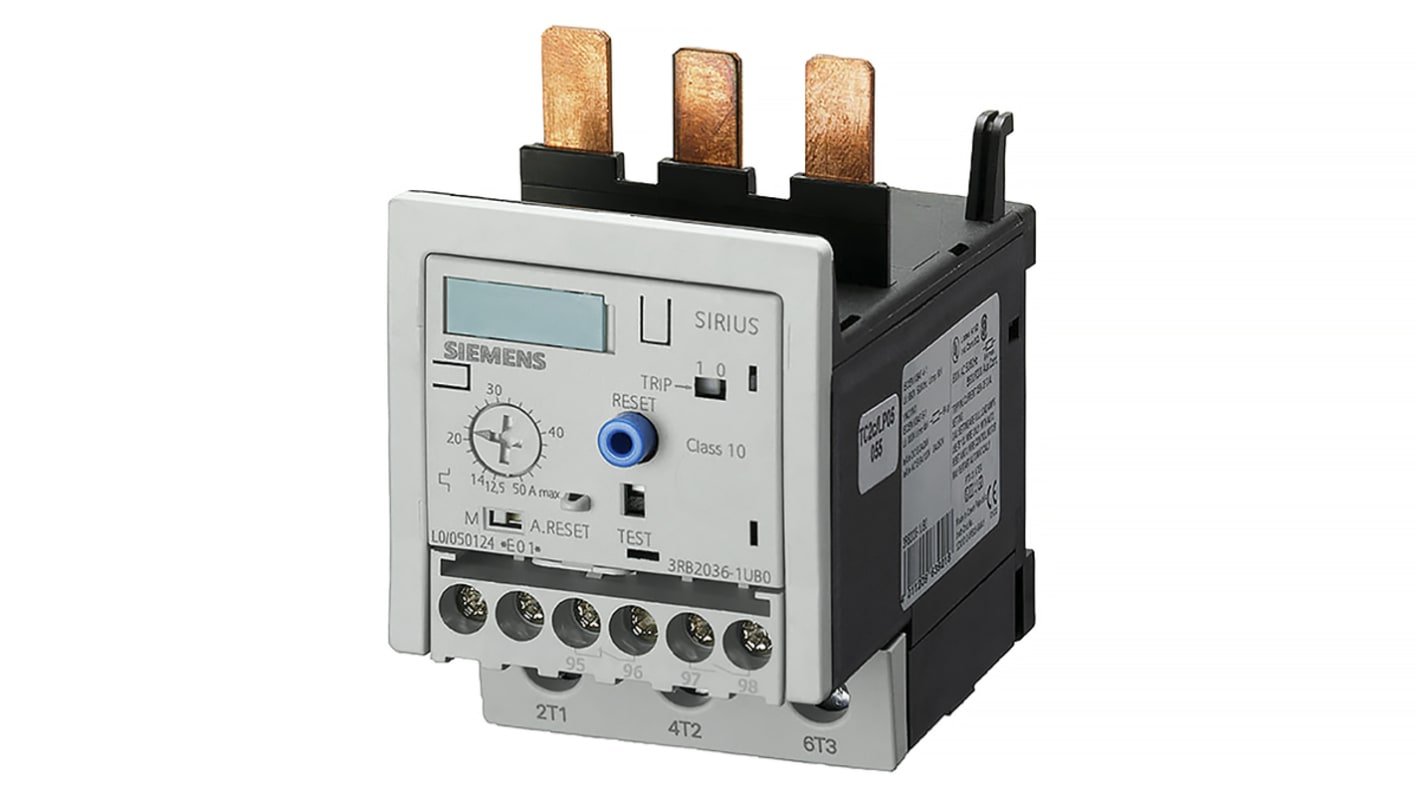

Siemens 3RB2 Overload Relay NO/NC, 12.5 → 50 A F.L.C, 80 A Contact Rating, 22 kW, 3P, Sirius Classic
- RS Stock No.:
- 638-7426
- Mfr. Part No.:
- 3RB2036-1UB0
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 638-7426
- Mfr. Part No.:
- 3RB2036-1UB0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| FLC Motor Rating | 12.5 → 50 A | |
| Contact Current Rating | 80 A | |
| Range | Sirius Classic | |
| Pole Configuration | 3P | |
| Series | 3RB2 | |
| Mounting Style | Direct Contactor | |
| Power Rating | 22 kW | |
| Normal State Configuration | NO/NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Width | 55mm | |
| Number Of Auxiliary Contacts | 2 | |
| Depth | 109mm | |
| Length | 92mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +60 °C | |
| Contact Voltage Rating | 690 V ac | |
Select all | ||
|---|---|---|
Brand Siemens | ||
FLC Motor Rating 12.5 → 50 A | ||
Contact Current Rating 80 A | ||
Range Sirius Classic | ||
Pole Configuration 3P | ||
Series 3RB2 | ||
Mounting Style Direct Contactor | ||
Power Rating 22 kW | ||
Normal State Configuration NO/NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Width 55mm | ||
Number Of Auxiliary Contacts 2 | ||
Depth 109mm | ||
Length 92mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +60 °C | ||
Contact Voltage Rating 690 V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CZ
3RB20-series electronic overload relay
Range of variants reduced thanks to large adjustment range
Overload protection for three-phase motors
On-site RESET is not necessary thanks to the automatic RESET function
The 3RB20 cannot be used with DC current or behind frequency inverters
Mechanically and electrically compatible with 3RT contactors and 3RW soft starters
Internal power supply (no supply voltage required)
Rapid triggering (< 3 s) for protection against phase failure
With auxiliary contacts 1 N/O & 1 N/C, manual / automatic RESET, switch position indication, TEST function and STOP button
Class 10; provides solutions for heavy start-up loads
Overload protection for three-phase motors
On-site RESET is not necessary thanks to the automatic RESET function
The 3RB20 cannot be used with DC current or behind frequency inverters
Mechanically and electrically compatible with 3RT contactors and 3RW soft starters
Internal power supply (no supply voltage required)
Rapid triggering (< 3 s) for protection against phase failure
With auxiliary contacts 1 N/O & 1 N/C, manual / automatic RESET, switch position indication, TEST function and STOP button
Class 10; provides solutions for heavy start-up loads
Electronic Overload Relays
The 3RB2 range of Solid State Electronic overloads can be connected directly to Siemens SIRIUS contactors to provide accurate motor overload protection with enhanced single phase sensitivity,Application: Protection of 3 phase AC motors in sinusoidal 50/60Hz network. These relays are not suitable for the protection of single phase or DC loads,Select according to motor full load current and contactor frame size e,g. S00
