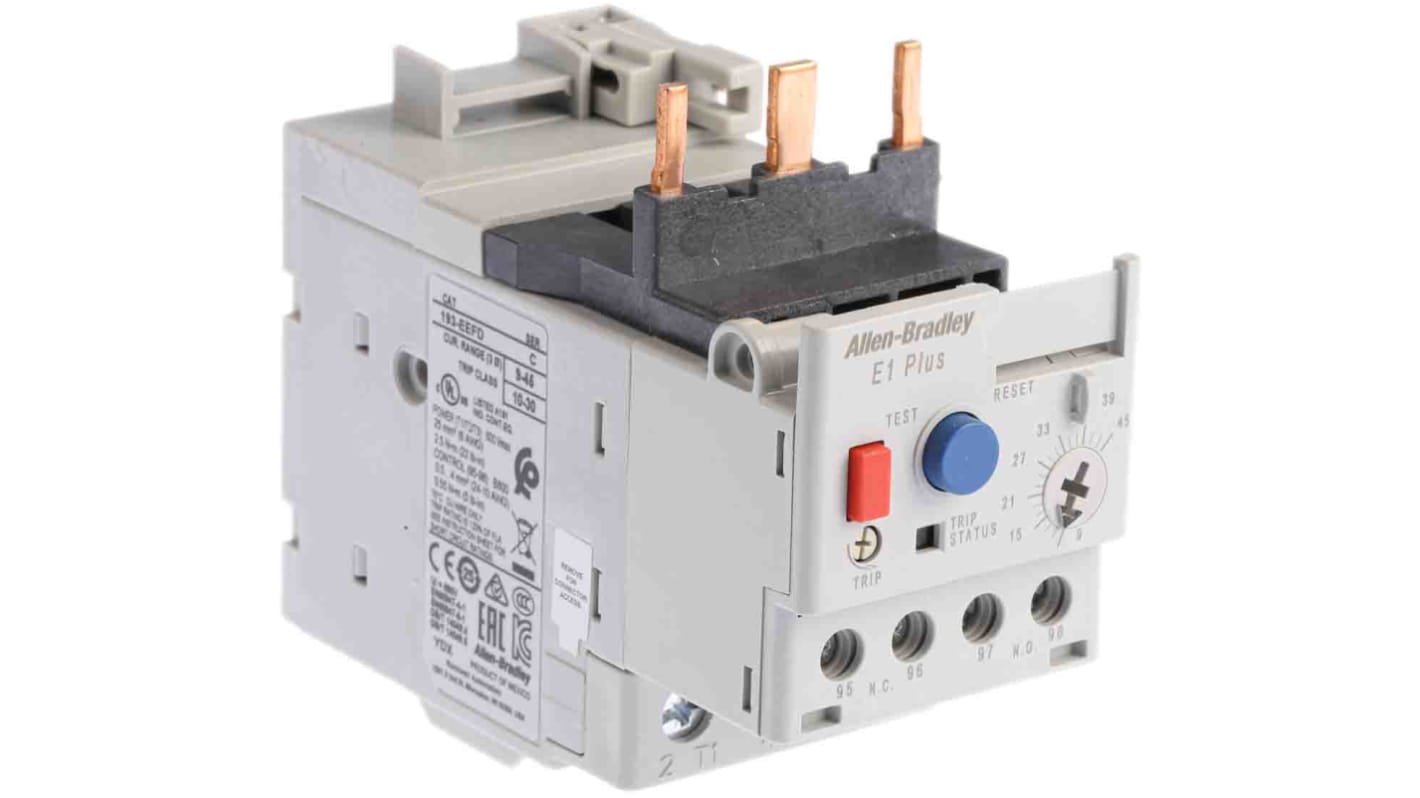

Allen Bradley 193-E1 Plus Electronic Overload Relay 1NO/1NC, 9 → 45 A F.L.C, 45 A Contact Rating, 150 mW, 690 V
- RS Stock No.:
- 527-3742
- Mfr. Part No.:
- 193-EEFD
- Brand:
- Allen Bradley
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£83.13
(exc. VAT)
£99.76
(inc. VAT)
- RS Stock No.:
- 527-3742
- Mfr. Part No.:
- 193-EEFD
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| FLC Motor Rating | 9 → 45 A | |
| Contact Current Rating | 45 A | |
| Range | Bulletin | |
| Pole Configuration | 3P | |
| Series | 193-E1 Plus | |
| Mounting Style | Clip On | |
| Power Rating | 150 mW | |
| Normal State Configuration | 1NO/1NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic, Manual | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Length | 146.6mm | |
| Depth | 101.2mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +60 °C | |
| Interface | Ethernet | |
| Control Voltage | 690 V ac | |
| Contact Voltage Rating | 690 V ac | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
FLC Motor Rating 9 → 45 A | ||
Contact Current Rating 45 A | ||
Range Bulletin | ||
Pole Configuration 3P | ||
Series 193-E1 Plus | ||
Mounting Style Clip On | ||
Power Rating 150 mW | ||
Normal State Configuration 1NO/1NC | ||
Terminal Type Screw | ||
Reset Method Automatic, Manual | ||
Number Of Auxiliary Contacts 2 | ||
Width 45mm | ||
Length 146.6mm | ||
Depth 101.2mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +60 °C | ||
Interface Ethernet | ||
Control Voltage 690 V ac | ||
Contact Voltage Rating 690 V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Allen Bradley Electronic Overload Relay, For 2.5 to 25mm² Conductors, Immune to Electrostatic Discharge - 193-EEFD
Keen to keep your motor running correctly and max out its service life? This electronic overload relay from Rockwell Automation's Allen Bradley range can help with that. If excess current or heat pose a risk to your motors' sensitive coils and windings, the unit steps in. By de-energising the motor control circuit, it safely halts connected devices. Thanks to the relay's application-specific integrated circuit (ASIC), which monitors motor performance continuously, you can trust your relay-contactor assembly is responding to real-time data. This means it trips when needed and keeps your circuit going when it's safe, so unnecessary system downtime is cut out of the equation.
Features & Benefits
• Electrostatic discharge immunity means you don't need to worry about getting shocked
• Works up to 2000m above sea level, so it's a good choice for high-altitude locations
• Rated impulse strength of 6kV so shields you and your equipment against significant voltage surges
• Works up to 2000m above sea level, so it's a good choice for high-altitude locations
• Rated impulse strength of 6kV so shields you and your equipment against significant voltage surges
Standards and Certifications
• CSA 22.2, No.14
• UL 508
• cULus
• CE
• RCM
• UL 508
• cULus
• CE
• RCM
What size conductors does this relay accept?
This product's adaptable screw terminals accept conductors with cross sections between 2.5 and 25mm² (AWG 14 to 6), so it's a versatile option to suit commonly used wires.
Approvals
UL, CSA
Standards
IEC EN60947-4-1, EN60947-5-1
