Allen Bradley 193-E1 Plus Electronic Overload Relay 1NO/1NC, 0.2 → 1 A F.L.C, 1 A Contact Rating, 150 mW, 690 V
- RS Stock No.:
- 527-3685
- Mfr. Part No.:
- 193-EEBB
- Brand:
- Allen Bradley

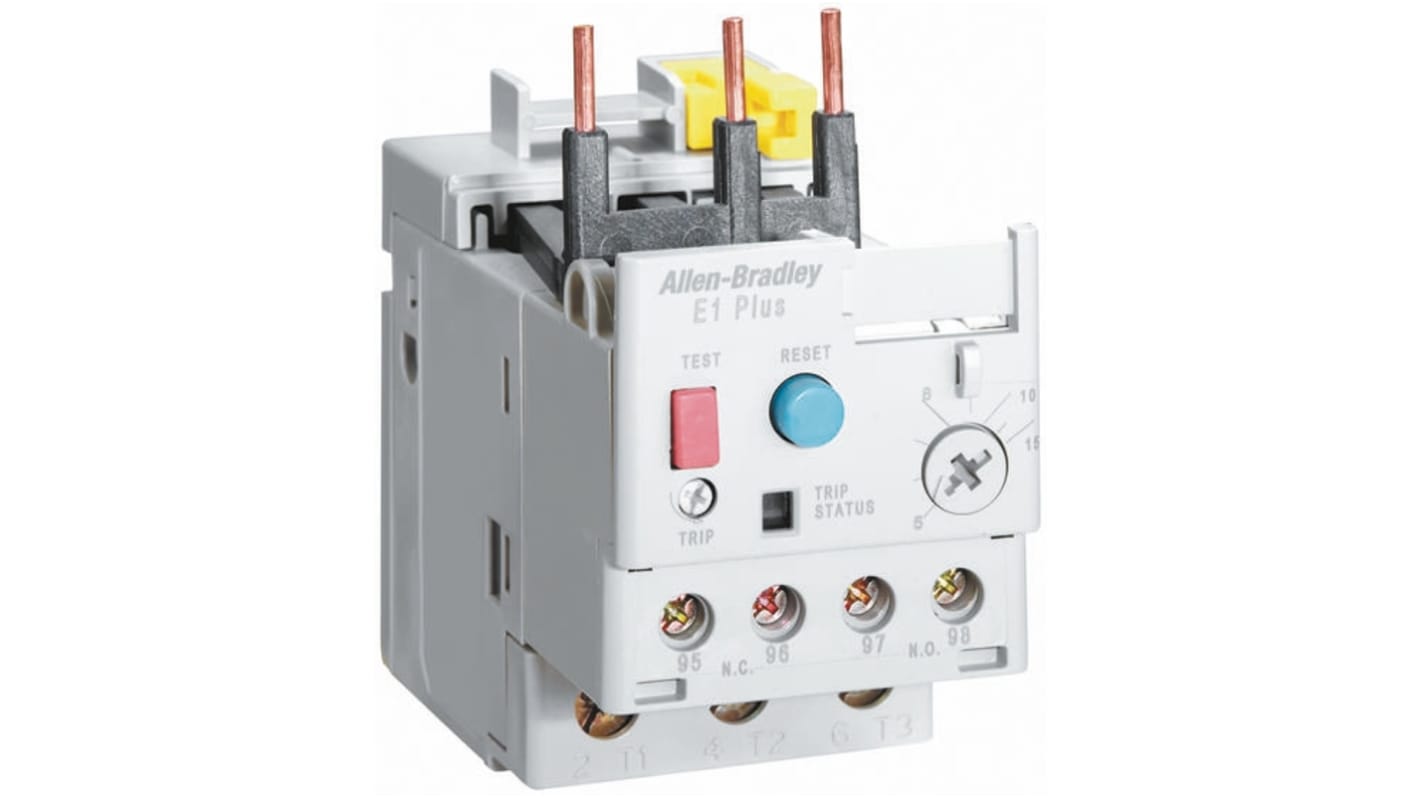

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£59.68
(exc. VAT)
£71.62
(inc. VAT)
- RS Stock No.:
- 527-3685
- Mfr. Part No.:
- 193-EEBB
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| FLC Motor Rating | 0.2 → 1 A | |
| Contact Current Rating | 1 A | |
| Range | Bulletin | |
| Pole Configuration | 3P | |
| Series | 193-E1 Plus | |
| Mounting Style | Clip On | |
| Power Rating | 150 mW | |
| Normal State Configuration | 1NO/1NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Length | 146.6mm | |
| Depth | 85.2mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +60 °C | |
| Interface | Ethernet | |
| Contact Voltage Rating | 690 V ac | |
| Control Voltage | 690 V ac | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
FLC Motor Rating 0.2 → 1 A | ||
Contact Current Rating 1 A | ||
Range Bulletin | ||
Pole Configuration 3P | ||
Series 193-E1 Plus | ||
Mounting Style Clip On | ||
Power Rating 150 mW | ||
Normal State Configuration 1NO/1NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Number Of Auxiliary Contacts 2 | ||
Width 45mm | ||
Length 146.6mm | ||
Depth 85.2mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +60 °C | ||
Interface Ethernet | ||
Contact Voltage Rating 690 V ac | ||
Control Voltage 690 V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
193-E1 Plus Electronic Overload Relays
The solid-state design of the 193-E1 Plus overload relay provides accurate, reliable and repeatable protection. A wide 5:1 adjustment range, dip switch (on EE versions) and isolated contacts provide application flexibility. The line-side over moulded power connections provides a sturdy two component starter assembly. The patented modular design allows for easy expansion of capabilities through side mount accessory modules to the EE versions.
Features and Benefits
IEC and NEMA configurations
Self-powered
Phase loss protection
Wide 5:1 adjustment range
Over-moulded power connections
1 N.O. and 1 N.C. isolated auxiliary contacts (AC15/B600 rated)
3 phase
Low energy consumption (150 mW)
Ambient temperature compensation
Visible trip indication
Compatible with 100-C09 to 100-C85 contactors (see stock no. 238-0702 typically)
Self-powered
Phase loss protection
Wide 5:1 adjustment range
Over-moulded power connections
1 N.O. and 1 N.C. isolated auxiliary contacts (AC15/B600 rated)
3 phase
Low energy consumption (150 mW)
Ambient temperature compensation
Visible trip indication
Compatible with 100-C09 to 100-C85 contactors (see stock no. 238-0702 typically)
ED Version
0.2 A to 27 A current range
Fixed trip class 10
Manual reset
Fixed trip class 10
Manual reset
EE Version
0.1 A to 90 A current range
Selectable trip class (10, 15, 20 or 30)
Selectable manual/auto-manual reset
Optional cage clamp control terminals
Selectable trip class (10, 15, 20 or 30)
Selectable manual/auto-manual reset
Optional cage clamp control terminals
Standards
IEC EN60947-4-1, EN60947-5-1.
Approvals
UL, CSA.
Approvals
UL, CSA
Standards
IEC EN60947-4-1, EN60947-5-1
