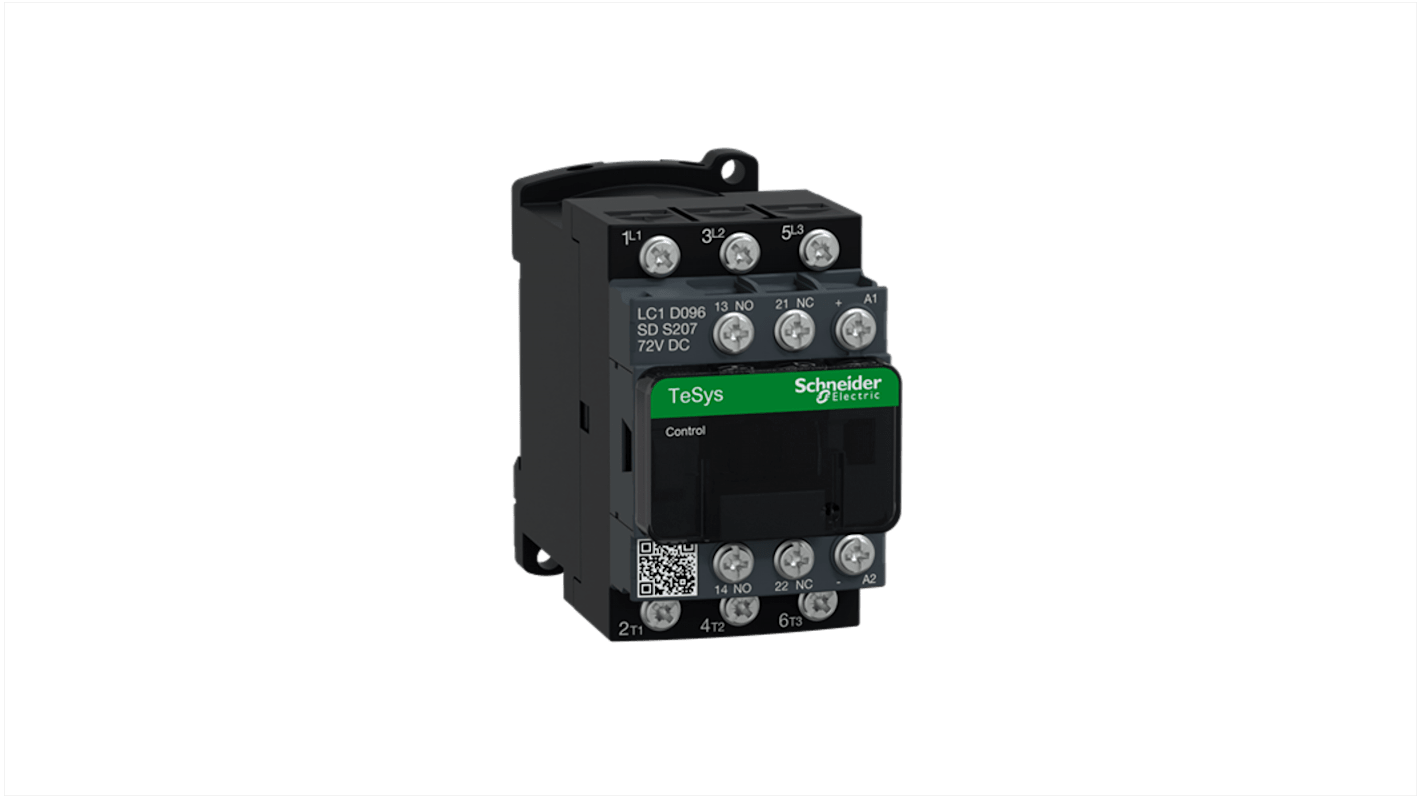

Schneider Electric, TeSyS D Contactor 3 NO, 9A Contact Rating, 2.2 kW, 72V dc 3
- RS Stock No.:
- 288-7241
- Mfr. Part No.:
- LC1D096SDS207
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£67.78
(exc. VAT)
£81.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £67.78 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 288-7241
- Mfr. Part No.:
- LC1D096SDS207
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Relay Contact Current | 9A | |
| Mount Type | Rail | |
| Series | TeSyS D | |
| Power Rating | 2.2kW | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 3 NO | |
| Terminal Type | Lug Ring Terminal | |
| Number of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Minimum Operating Temperature | -60°C | |
| Length | 95mm | |
| Maximum Operating Temperature | 80°C | |
| Depth | 95mm | |
| Standards/Approvals | EN/IEC 60947-4-1, EN 45545: R26 HL3, EN 45545: R22 HL3, DIN 5510-2, EN/IEC 60947-5-1 | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Supply Voltage | 690V ac | |
| Control Voltage | 72V dc | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Relay Contact Current 9A | ||
Mount Type Rail | ||
Series TeSyS D | ||
Power Rating 2.2kW | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 3 NO | ||
Terminal Type Lug Ring Terminal | ||
Number of Auxiliary Contacts 2 | ||
Width 45mm | ||
Minimum Operating Temperature -60°C | ||
Length 95mm | ||
Maximum Operating Temperature 80°C | ||
Depth 95mm | ||
Standards/Approvals EN/IEC 60947-4-1, EN 45545: R26 HL3, EN 45545: R22 HL3, DIN 5510-2, EN/IEC 60947-5-1 | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Supply Voltage 690V ac | ||
Control Voltage 72V dc | ||
- COO (Country of Origin):
- FR
The Schneider Electric Contactor is designed for motor control and resistive load applications. With a wide range of operational voltages and power ratings, this contactor provides reliable performance for various industrial settings.
3P poles description for efficient power distribution
Motor power up to 5.5 kW for versatile applications
Auxiliary contacts for added functionality
Overvoltage category III for enhanced safety
Mechanical durability of 30 Mcycles for long term usage
